Favorit

The price hit for a large range of applications.

EXTERNAL CYLINDRICAL GRINDING MACHINES

MACHINES FOR INTERNAL CYLINDRICAL GRINDING

Basic Data

The favorit is a CNC universal cylindrical grinding machine for the individual and batch production of short to long-sized workpieces. It has a distance between centres of 400mm (15.7″) / 650mm (25.6″) / 1,000mm (40″) / 1,600mm (63″) and a centre height of 175mm (6.9″). It can machine workpieces with a maximum weight of 150kg (330lbs). The cylindrical grinding machine can be used in universal applications, and thanks to StuderPictogramming it is easy and quick to program. Your Granitan® S103 mineral-casting machine base largely offsets short-term temperature fluctuations. It can subsequently be easily adapted to other grinding tasks using various accessory kits such as in-process gauging, balancing system, contact detection and length positioning.

Hardware / Software

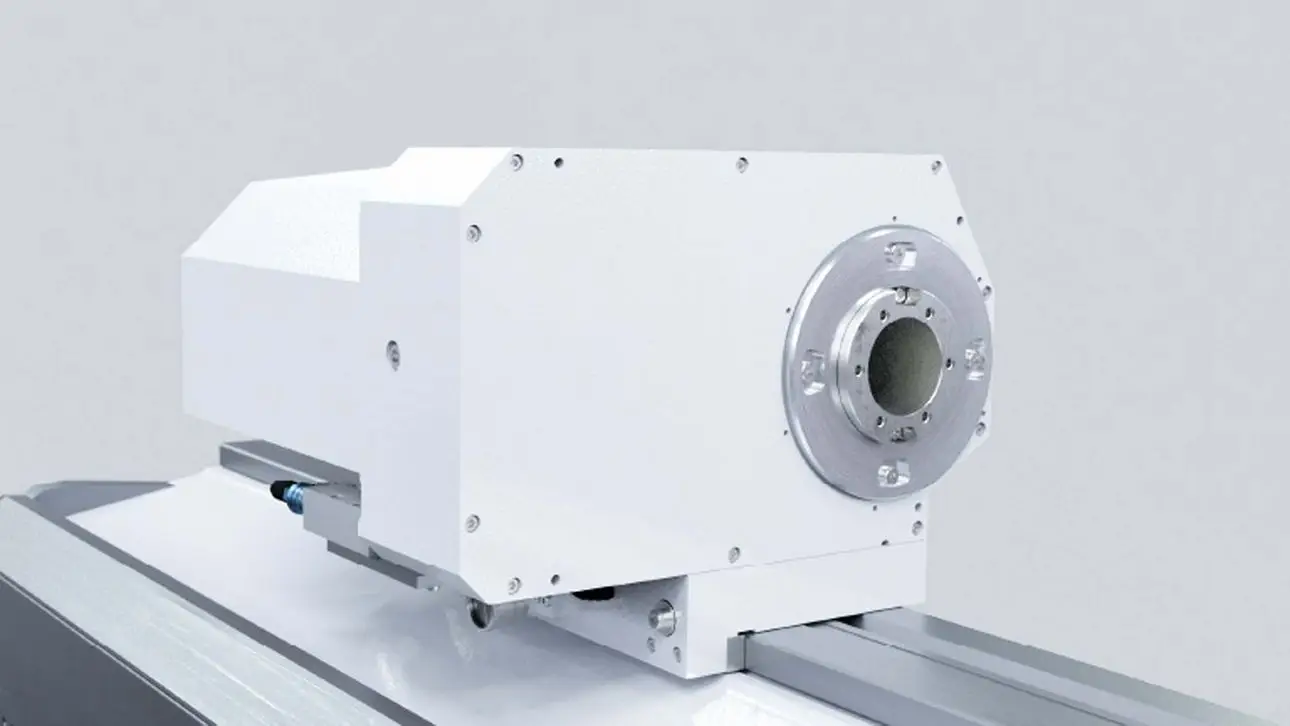

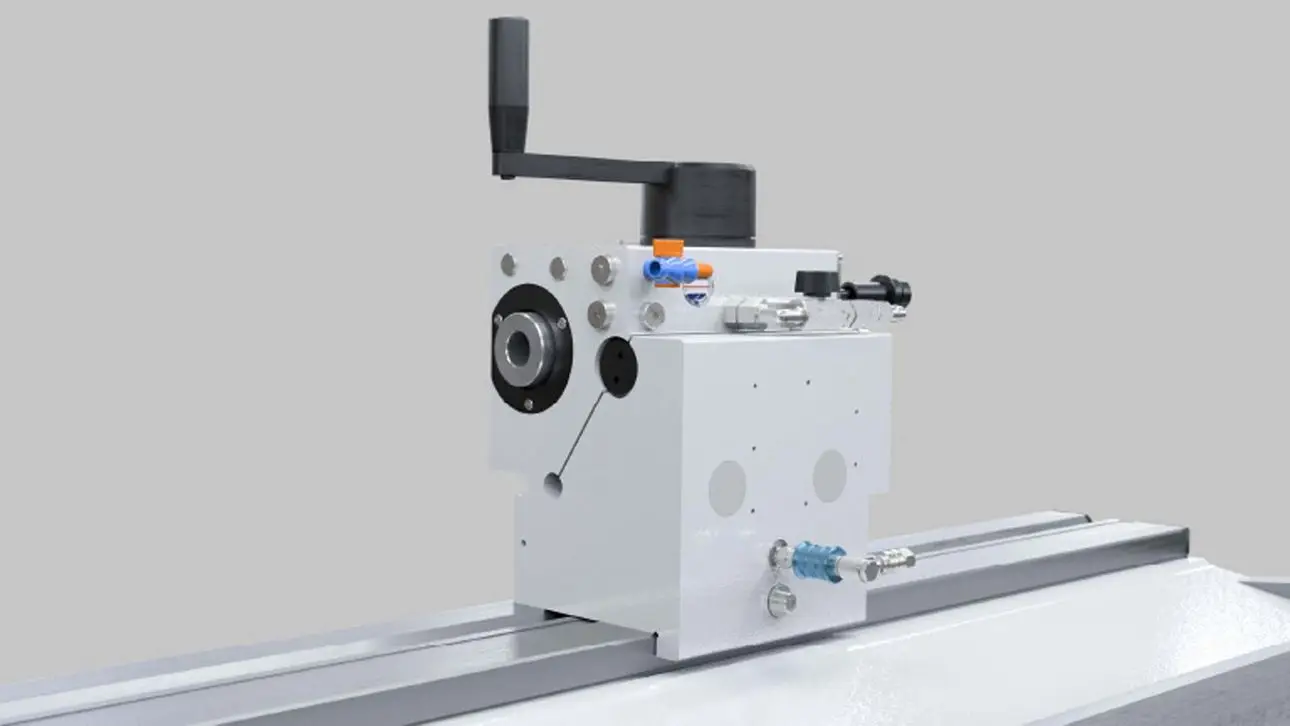

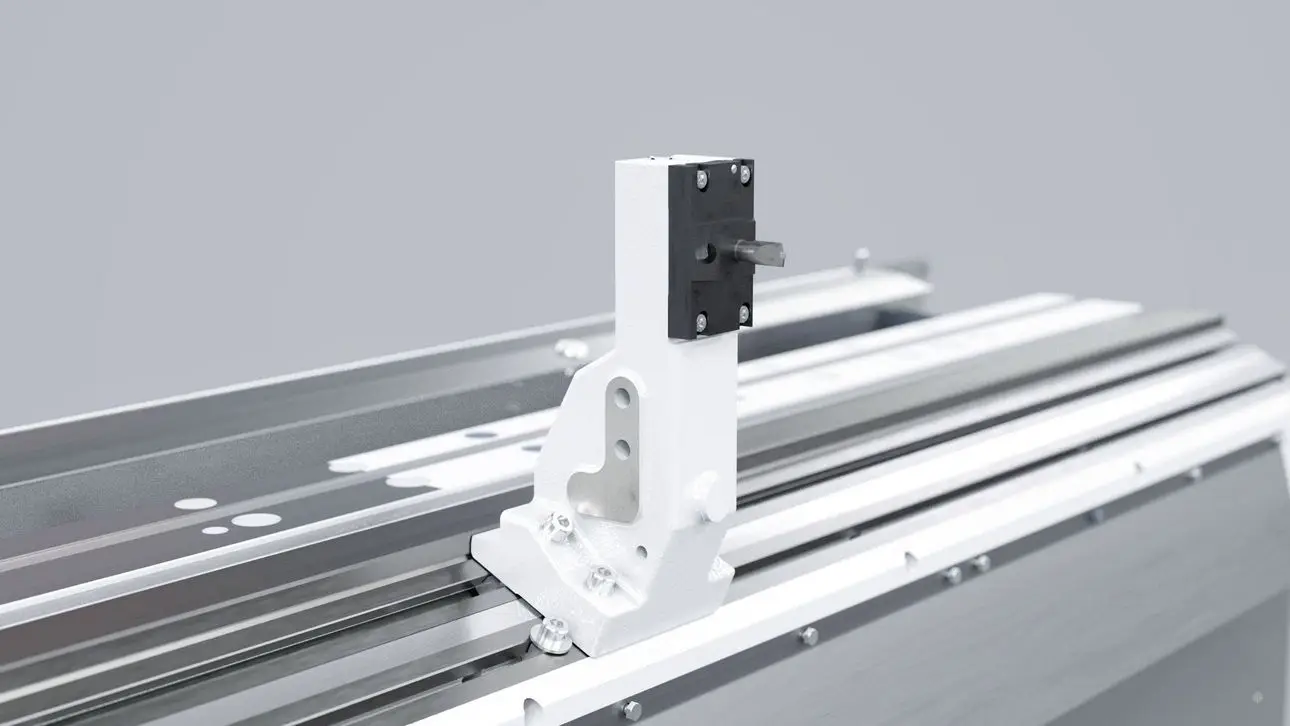

Hardware:

Optional wheelhead:

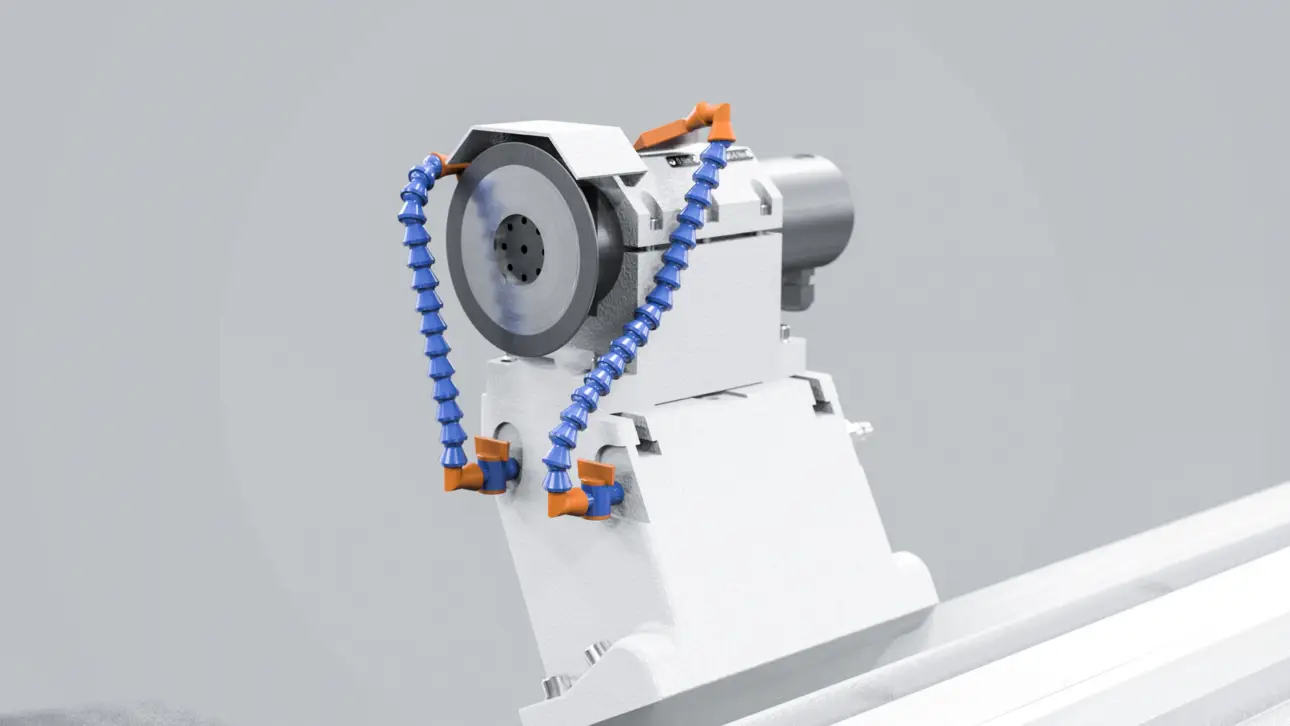

– Turret wheelhead with right or left grinding wheel and an internal grinding attachment
– Automatic swiveling with 3° Hirth serration
– External wheelhead with grinding wheel on right, 0° / 15° / 30°
External and internal grinding possible in one clamping
Granitan® S103 mineral casting machine base
CE-conform

Software:

Extremely easy programming with StuderPictogramming
StuderGRIND programming software (optional) for creating grinding and
dressing programs on an external PC

Download favorit Brochure

Distance between centres 400mm (15.75")

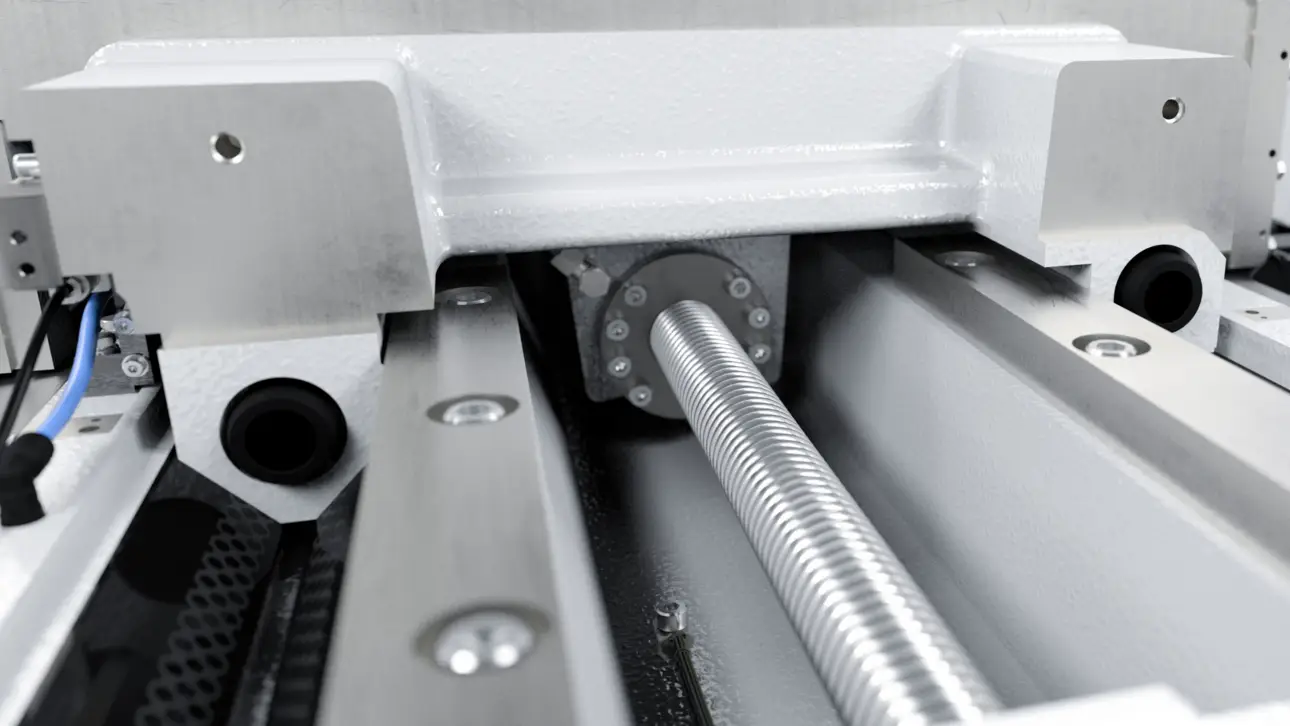

Linear Axes

Max. Travel X
Max. Travel Speed X
Max. Travel Z
Max. Travel Speed Z

370 mm
15’000 mm/min
500 mm
20’000 mm/min

SPindle Drive

Max. Spindle Power
Max. Number Of Revolutions
Max. Grinding Wheel Diameter
Max. Grinding Wheel Width

8 kW
3’200 /min
508 mm
80 mm

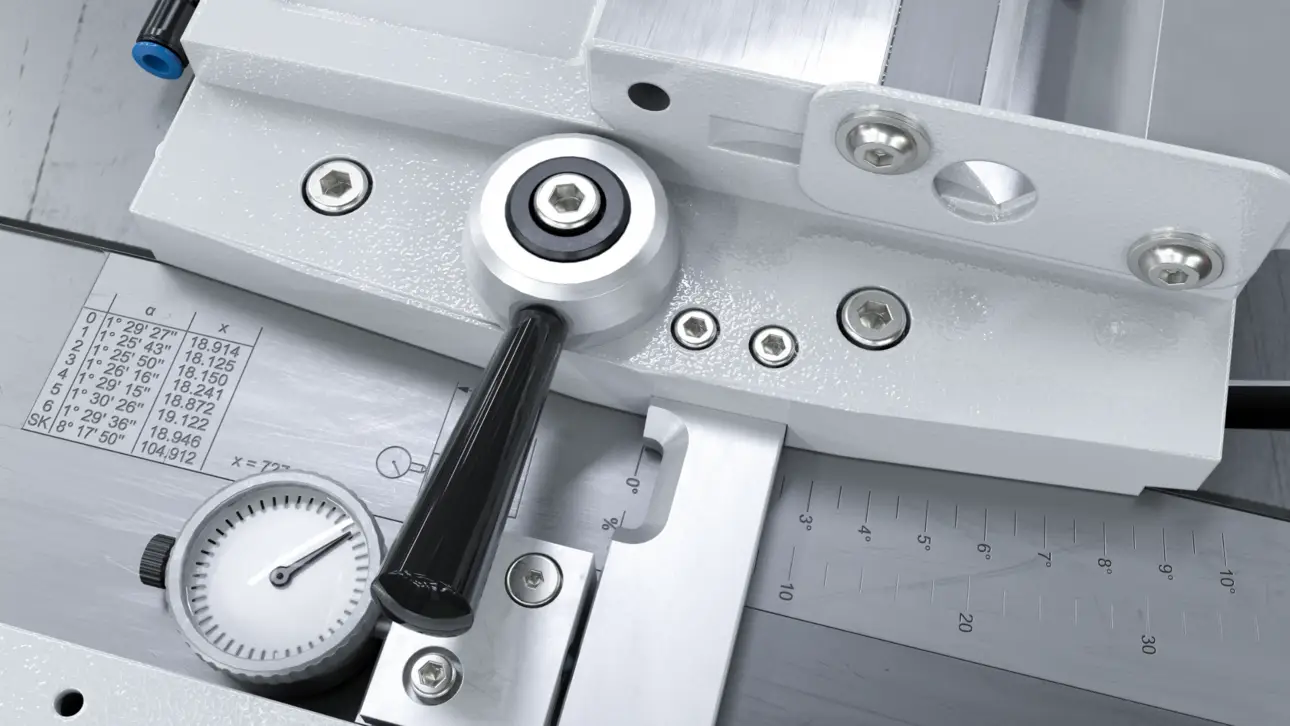

Swiveling Axes

Swiveling Range B

255 °

Swiveling Range C

∞ °

Workpiece Data

Workpiece Length
Workpiece Diameter
Max. Workpiece Weight
Distance Between Centers
Center Height

400 mm
349 mm
150 kg
400 mm
175 mm

Linear Axes

Max. Travel X: 370mm
Max. Travel Speed X: 15’000 mm/min
Max. Travel Z: 500mm
Max. Travel Speed Z: 20’000 mm/min

SPindle Drive

Max. Spindle Power: 8 KW
Max. Number Of Revolutions: 3’200/min
Max. Grinding Wheel Dm: 508mm
Max. Grinding Wheel Width: 80mm

Swiveling Axes

Swiveling Range B

255 °

Swiveling Range C

∞ °

Workpiece Data

Workpiece Length: 400mm
Workpiece Diameter: 449mm
Max. Workpiece Weight: 150g
Distance Between Centers: 400mm
Center Height: 175mm

Distance between centres 650mm (25.6")

Linear Axes

Max. Travel X
Max. Travel Speed X
Max. Travel Z
Max. Travel Speed Z

370 mm
15’000 mm/min
500 mm
20’000 mm/min

SPindle Drive

Max. Spindle Power
Max. Number Of Revolutions
Max. Grinding Wheel Diameter
Max. Grinding Wheel Width

8 kW
3’200 /min
508 mm
80 mm

Swiveling Axes

Swiveling Range B

255 °

Swiveling Range C

∞ °

Workpiece Data

Workpiece Length
Workpiece Diameter
Max. Workpiece Weight
Distance Between Centers
Center Height

650 mm
349 mm
150 kg
650 mm
175 mm

Linear Axes

Max. Travel X: 370mm
Max. Travel Speed X: 15’000 mm/min
Max. Travel Z: 800mm
Max. Travel Speed Z: 20’000 mm/min

SPindle Drive

Max. Spindle Power: 8 KW
Max. Number Of Revolutions: 3’200/min
Max. Grinding Wheel Dm: 508mm
Max. Grinding Wheel Width: 80mm

Swiveling Axes

Swiveling Range B

180 °

Swiveling Range C

∞ °

Workpiece Data

Workpiece Length: 650mm
Workpiece Diameter: 349mm
Max. Workpiece Weight: 150Kg
Distance Between Centers: 650mm
Center Height: 175mm

Distance between centres 1000mm (40")

Linear Axes

Max. Travel X
Max. Travel Speed X
Max. Travel Z
Max. Travel Speed Z

370 mm
15’000 mm/min
1’150 mm
20’000 mm/min

SPindle Drive

Max. Spindle Power
Max. Number Of Revolutions
Max. Grinding Wheel Diameter
Max. Grinding Wheel Width

8 kW
3’200 /min
508 mm
80 mm

Swiveling Axes

Swiveling Range B

255 °

Swiveling Range C

∞ °

Workpiece Data

Workpiece Length
Workpiece Diameter
Max. Workpiece Weight
Distance Between Centers
Center Height

1’000 mm
349 mm
150 kg
1’000 mm
175 mm

Linear Axes

Max. Travel X: 370mm
Max. Travel Speed X: 15’000 mm/min
Max. Travel Z: 1’150mm
Max. Travel Speed Z: 20’000 mm/min

SPindle Drive

Max. Spindle Power: 6 KW
Max. Number Of Revolutions: 2’110/min
Max. Grinding Wheel Dm: 500mm
Max. Grinding Wheel Width: 80mm

Swiveling Axes

Swiveling Range B

255 °

Swiveling Range C

∞ °

Workpiece Data

Workpiece Length: 1’000mm
Workpiece Diameter: 349mm
Max. Workpiece Weight: 150Kg
Distance Between Centers: 1’000mm
Center Height: 175mm

Distance between centres 1600mm (63")

Linear Axes

Max. Travel X
Max. Travel Speed X
Max. Travel Z
Max. Travel Speed Z

370 mm
15’000 mm/min
500 mm
20’000 mm/min

SPindle Drive

Max. Spindle Power
Max. Number Of Revolutions
Max. Grinding Wheel Diameter
Max. Grinding Wheel Width

8 kW
3’200 /min
508 mm
80 mm

Swiveling Axes

Swiveling Range B

255 °

Swiveling Range C

∞ °

Workpiece Data

Workpiece Length
Workpiece Diameter
Max. Workpiece Weight
Distance Between Centers
Center Height

1’600 mm
349 mm
150 kg
1’600 mm
175 mm

Linear Axes

Max. Travel X: 370mm
Max. Travel Speed X: 15’000 mm/min
Max. Travel Z: 1’750mm
Max. Travel Speed Z: 20’000 mm/min

SPindle Drive

Max. Spindle Power: 8 KW
Max. Number Of Revolutions: 3’200/min
Max. Grinding Wheel Dm: 508mm
Max. Grinding Wheel Width: 80mm

Swiveling Axes

Swiveling Range B

255 °

Swiveling Range C

∞ °

Workpiece Data

Workpiece Length: 1’600mm
Workpiece Diameter: 349mm
Max. Workpiece Weight: 150 kg
Distance Between Centers: 1’600 mm
Center Height: 175 mm
