FAVORITCNC
The price hit for a large range of applications.
Basic Data
The favoritCNC is a universal cylindrical grinding machine for medium-sized workpieces in individual and large series.
It has distances between centres of 650mm (25.6″) / 1000mm (40″) and a centre height of 175mm (6.8″). It can machine workpieces with a maximum weight of 80kg (176lbs) / 120kg (264lbs).
It can subsequently be easily adapted to other grinding tasks using various accessory kits such as in-process gauging, balancing system, contact detection and length positioning. The solid Granitan® S103 machine base forms the basis for a cylindrical grinding machine that is equipped with high quality components, thus guaranteeing maximum precision, performance and reliability over many years. The full enclosure ensures an optimal view of the grinding process.
Hardware / Software
Hardware:

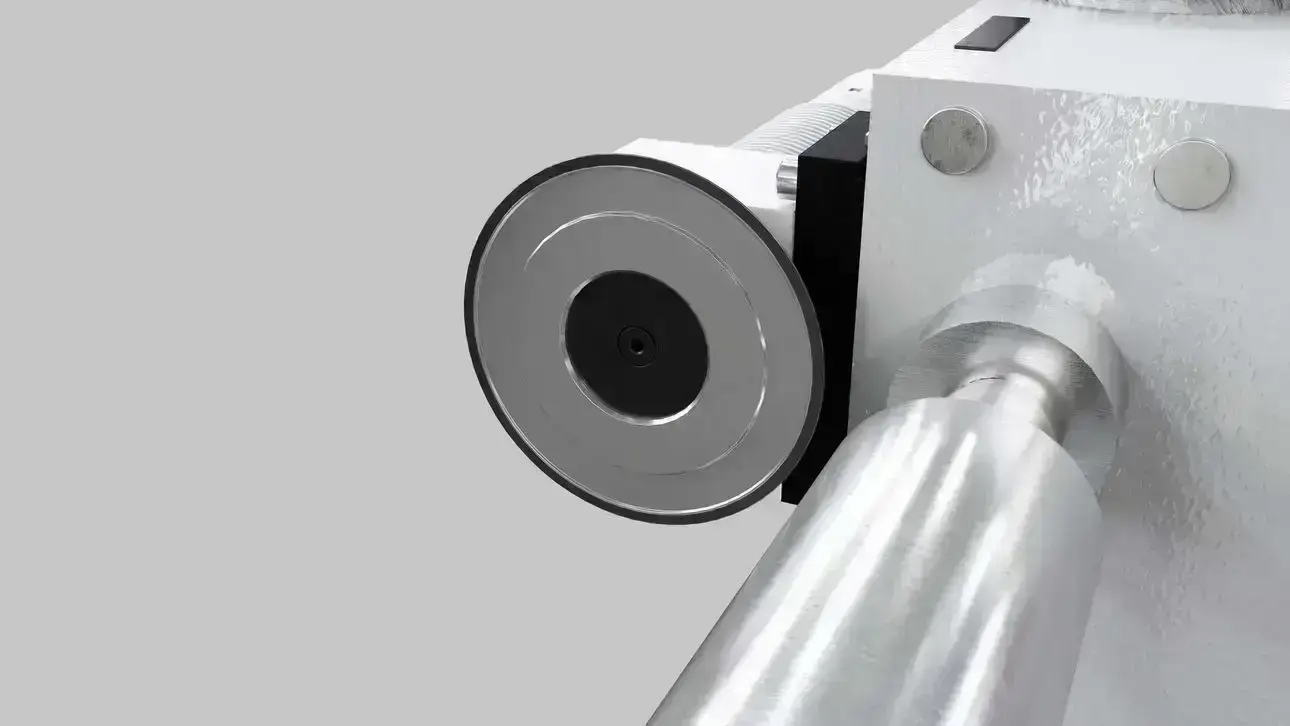

- Turret wheelhead with grinding wheel right and internal grinding attachment (option) with manual swiveling 2.5° Hirth
- External and internal grinding possible in one clamping
- Granitan® S103 mineral casting machine base
- CE-conform
Software:

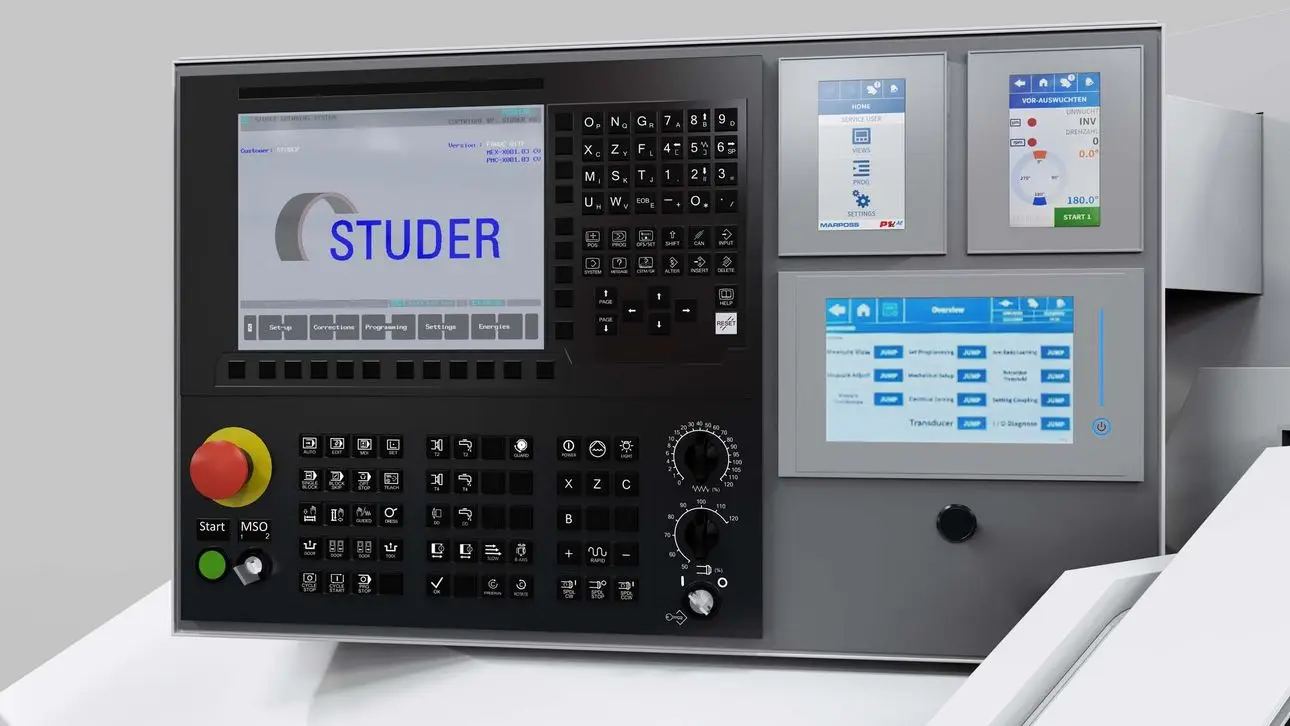

- Extremely easy programming with StuderPictogramming
- StuderGRIND programming software optionally available to create grinding and dressing programs on an external computer.
Linear Axes
Max. Travel Speed X
Max. Travel Z
Max. Travel Speed Z
285mm
10’000 mm/min
800 mm
20’000 mm/min
SPindle Drive
Max. Number Of Revolutions
Max. Grinding Wheel Diameter
Max. Grinding Wheel Width
9 kW
2’800 /min
508 mm
80 mm
Swiveling Axes
Swiveling Range B
210 °
∞ °
Workpiece Data
Workpiece Diameter
Max. Workpiece Weight
Distance Between Centers
Center Height
680 mm
349 mm
80 kg
650 mm
175 mm
Linear Axes
Max. Travel X: 285mm
Max. Travel Speed X: 10’000 mm/min
Max. Travel Z: 800mm
Max. Travel Speed Z: 20’000 mm/min
SPindle Drive
Max. Spindle Power: 9 KW
Max. Number Of Revolutions: 2’810/min
Max. Grinding Wheel Dm: 508mm
Max. Grinding Wheel Width: 80mm
Swiveling Axes
Swiveling Range B
210 °
Swiveling Range C
Workpiece Data
Workpiece Length: 680mm
Workpiece Diameter: 349mm
Max. Workpiece Weight: 80kg
Distance Between Centers: 650mm
Center Height: 175mm
Linear Axes
Max. Travel Speed X
Max. Travel Z
Max. Travel Speed Z
285 mm
10’000 mm/min
1’150 mm
20’000 mm/min
SPindle Drive
Max. Number Of Revolutions
Max. Grinding Wheel Diameter
Max. Grinding Wheel Width
9 kW
2’810 /min
508 mm
80 mm
Swiveling Axes
Swiveling Range B
210 °
∞ °
Workpiece Data
Workpiece Diameter
Max. Workpiece Weight
Distance Between Centers
Center Height
1’030 mm
349 mm
120 kg
1’000 mm
175 mm
Linear Axes
Max. Travel X: 285mm
Max. Travel Speed X: 10’000 mm/min
Max. Travel Z: 1’150mm
Max. Travel Speed Z: 20’000 mm/min
SPindle Drive
Max. Spindle Power: 9 KW
Max. Number Of Revolutions: 2’810/min
Max. Grinding Wheel Dm: 508mm
Max. Grinding Wheel Width: 80mm
Swiveling Axes
Swiveling Range B
210 °
Swiveling Range C
Workpiece Data
Workpiece Length: 1’0300mm
Workpiece Diameter: 349mm
Max. Workpiece Weight: 120kg
Distance Between Centers: 1000mm
Center Height: 175mm
