MACHINES FOR INTERNAL CYLINDRICAL GRINDING
CNC Universal internal cylindrical grinding machines
The right machine for every need. The affordable and universal S121 is used for medium-sized workpieces in individual and small series manufacturing. The S131, S141 and S151 are designed for any internal cylindrical grinding. They are used where very high precision and efficiency are required – for example, Flange parts, spindle shafts, spindle housings, rotor shafts, bushes and much more.
S100
The S100 covers the wide range of internal, face and external grinding applications. It has a workpiece length including clamping device of max. 550 mm (21.65″) and a workpiece diameter of max. 420 mm (16.53″).
S121
The S121 is a universal internal cylindrical grinding machine for medium-sized workpieces in individual and small batch production. The reasonably priced universal machine has a swing diameter of 400mm (15.7″).
S131
The S131 is a CNC universal internal cylindrical grinding machine of the latest generation. The swing diameter above the workpiece table is 250 mm (9.8″), and the maximum workpiece length (including clamping device) is 300 mm (11.8″).
S141
The S141 is a CNC universal internal cylindrical grinding machine. Three sizes are available for workpiece lengths (including clamping devices) of 300mm (11.8″), 700mm (27.5″) and 1300mm (51.2″). The maximum grinding length is 250mm (9.8″) for internal and 150mm (5.9″) for external diameters.
S151
The S151 is a CNC universal internal cylindrical grinding machine. It is available in two sizes, for workpiece lengths (including clamping device) up to 700mm (27.5″) or 1300mm (51.2″). The swing diameter above the workpiece table is 550mm (21.6″).
CNC Production internal cylindrical grinding machines
The S110 is a very flexible internal cylindrical grinding machine for machining medium-sized workpieces. S122 specializes in small bores and has a swing diameter of 220mm (8.6″). Both types can handle up to three grinding spindles in a parallel arrangement, which allows external and internal grinding in one clamping.
S110
The S110 is a very flexible internal cylindrical grinding machine for machining medium-sized workpieces. The machine has a centre height of 102mm (4″) and a grinding length of max. 120mm (4.7″).

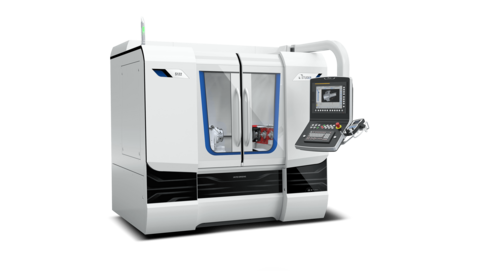

S122
The S110 is a very flexible internal cylindrical grinding machine for machining medium-sized workpieces. The machine has a centre height of 102mm (4″) and a grinding length of max. 120mm (4.7″).
CNC radius internal cylindrical grinding machines
The S121, S131 and S141 are experts for high-precision internal cylindrical grinding of radii, spheres, tapers and diameters. Their main application areas are the production of drawing-dies made of carbide and ceramic, and the production of hydraulic components. Complex workpieces of industrial ceramic, sapphire and tungsten carbide for the manufacture of human implants are also within their scope.
S121 Radius
The S121 is a radius internal cylindrical grinding machine. It is the ideal machine for internal, face and external grinding of chuck components. The maximum swing diameter is 300mm (11.8″) and the maximum workpiece weight is 100kg (220lbs).
S131 Radius
The S131 is a radius internal cylindrical grinding machine that is especially suitable for grinding complex workpieces from very hard materials The maximum swing diameter is 300mm (11.7″) and the maximum workpiece weight is 100kg (220lbs).
S141 Radius
The S141 is a radius internal cylindrical grinding machine that is especially suitable for grinding complex workpieces from very hard materials The maximum swing diameter is 400mm (15.7″) and the maximum workpiece weight is 100kg (220lbs).
