S100
The ergonomic machine for the entry-level segment.
Basic Data
The S100 CNC universal internal cylindrical grinding machine offers the proven STUDER quality and highest precision in standard internal cylindrical grinding operations at an excellent price-performance ratio. It covers the wide range of internal, surface and external grinding applications. This makes it the ideal universal internal cylindrical grinding machine for the entry-level segment.

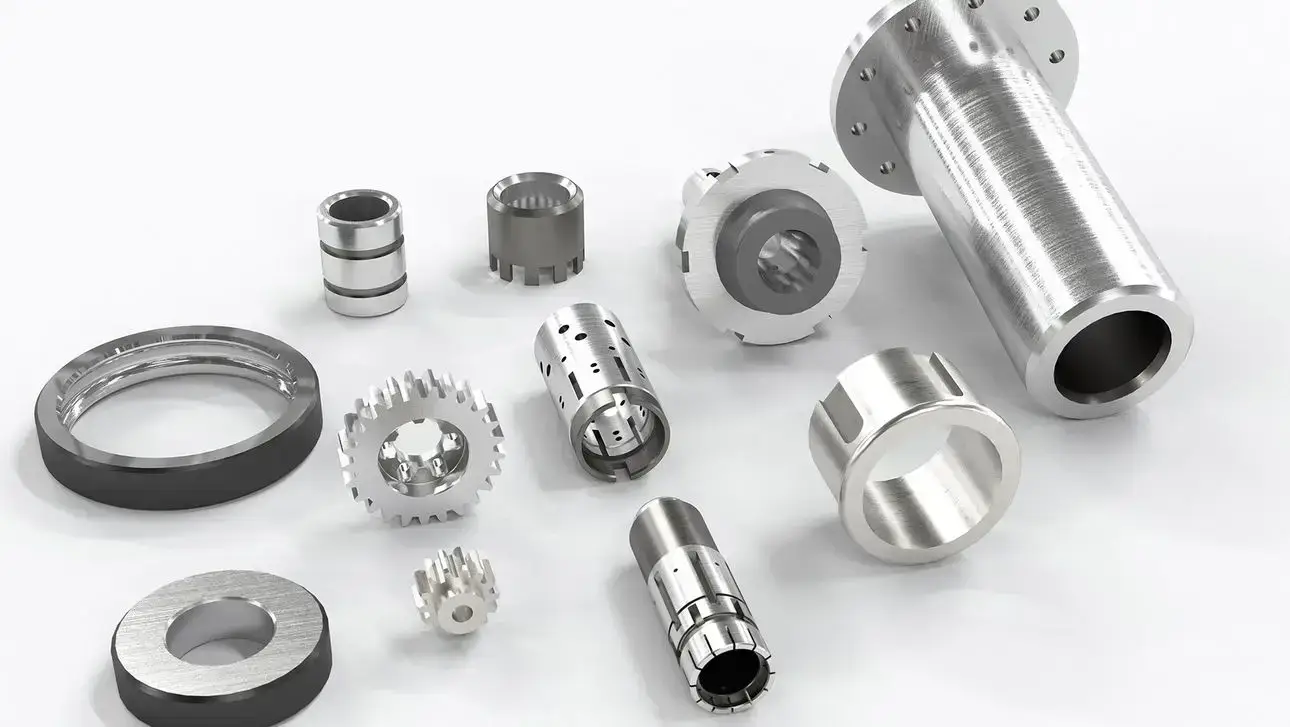

It has a workpiece length including clamping device of max. 550mm (21.65″) and a workpiece diameter of max. 420 mm (16.53″). Many suitable workpieces can be found in the compressor, hydraulic, machine tool, aerospace and tooling industries.
Hardware / Software

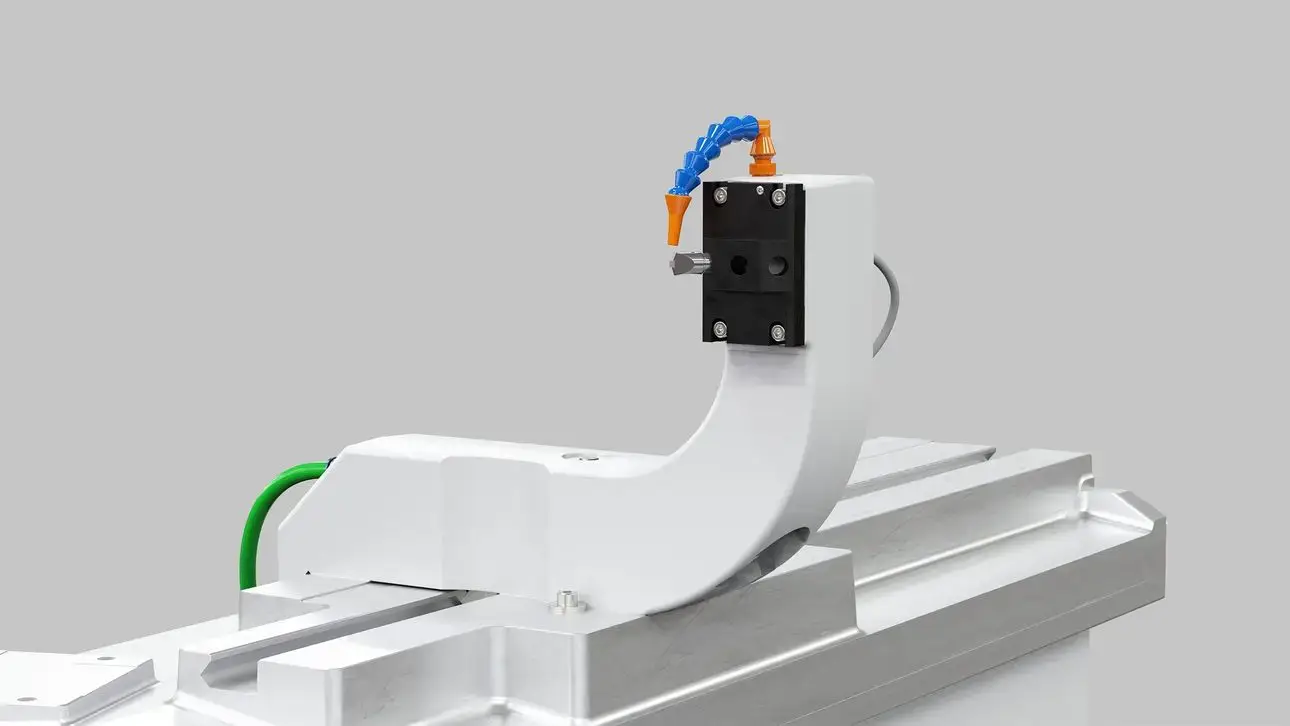

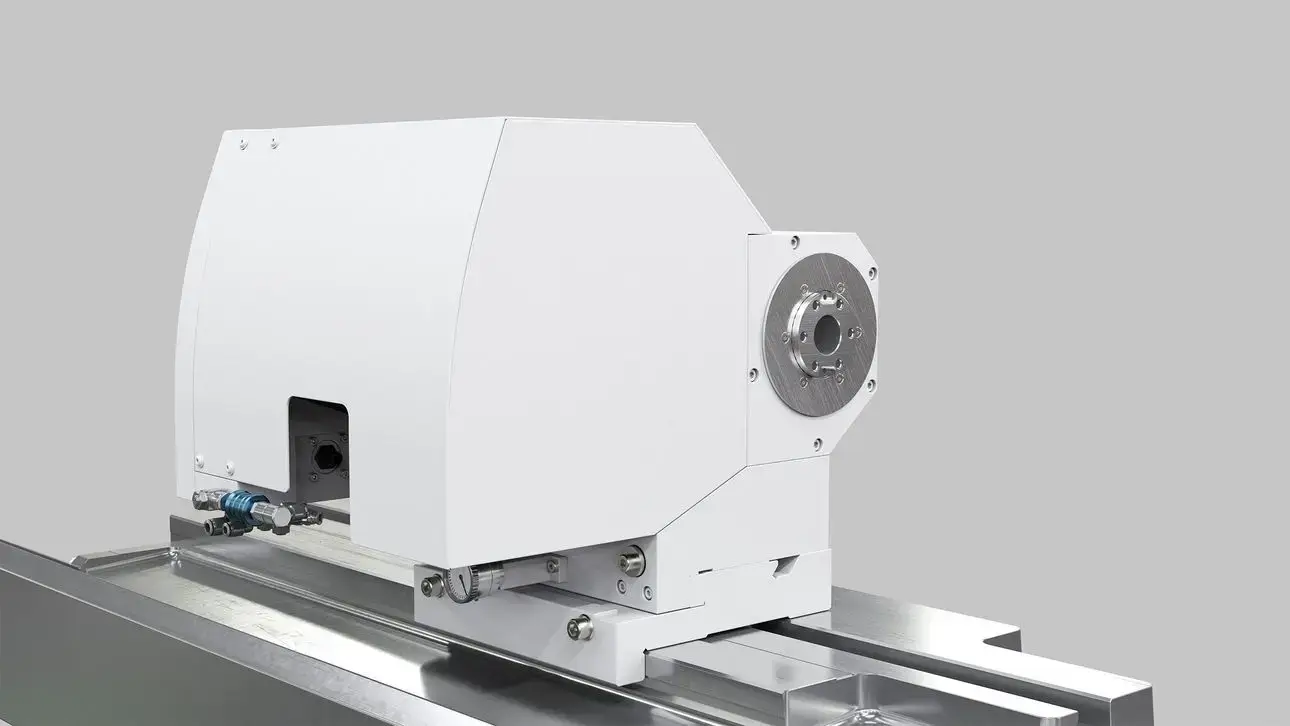

Hardware:

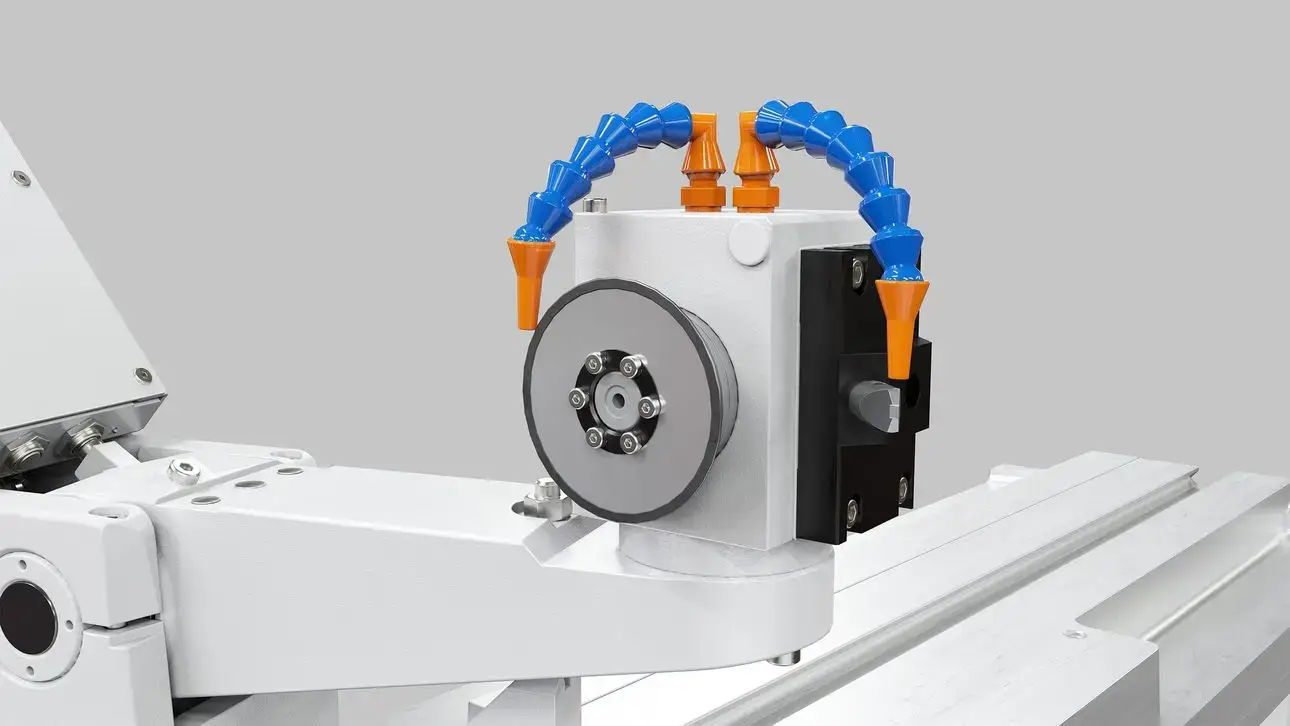

- Grinding spindle turret either with 2.5° Hirth manual
or 1° Hirth automatic - Frequency-controlled belt spindles for external and internal grinding

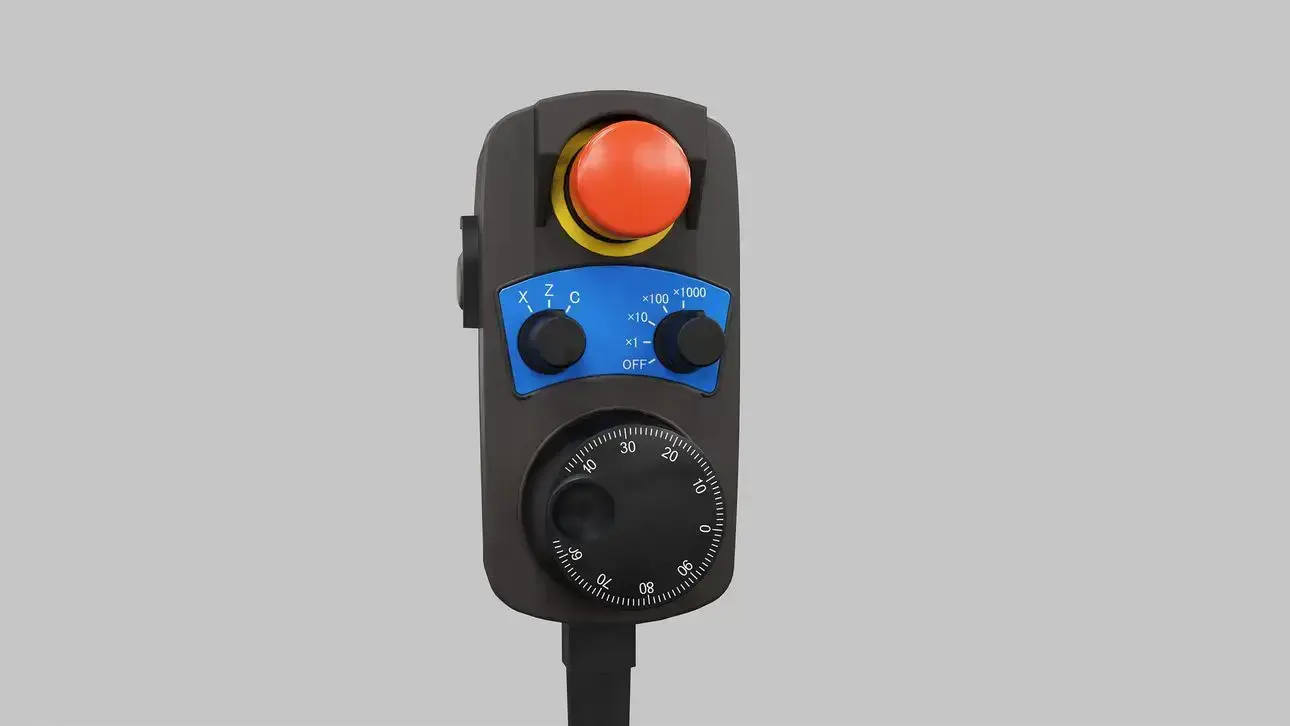

up to 60 000 rpm - Manual control unit for set-up close to the grinding process

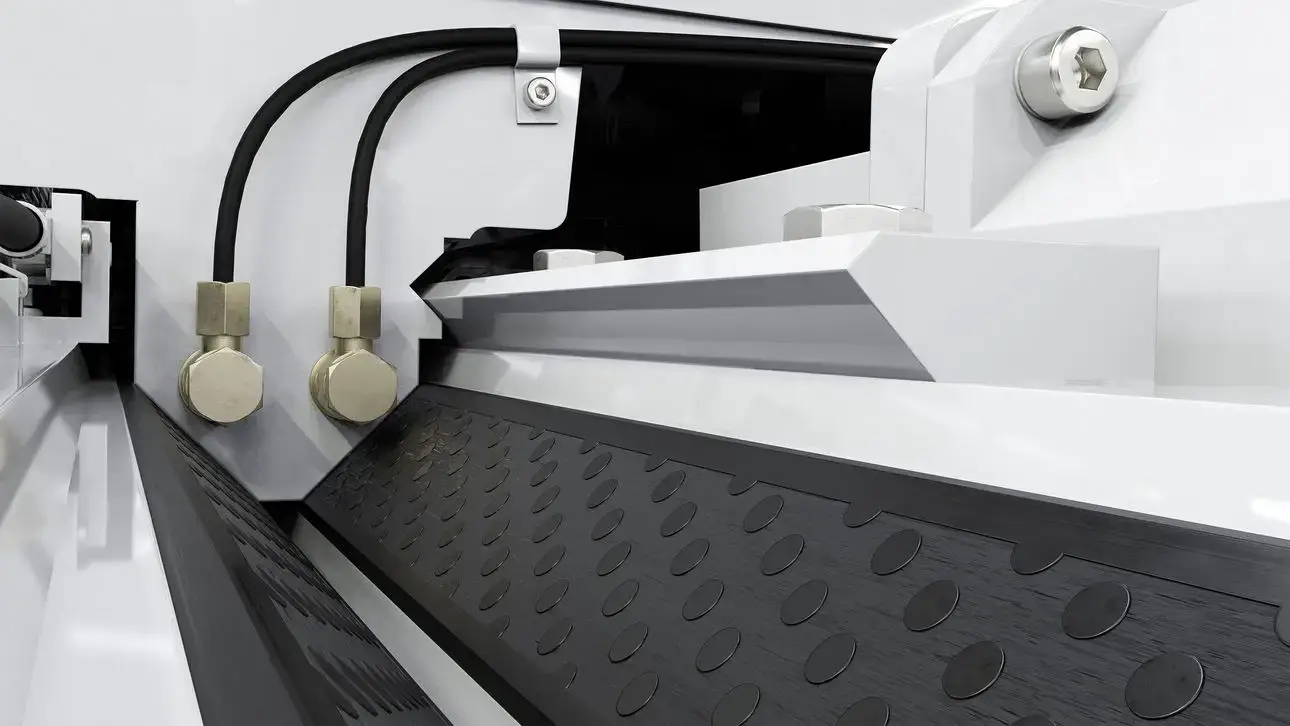

- Granitan® S103 mineral casting machine base
Software:

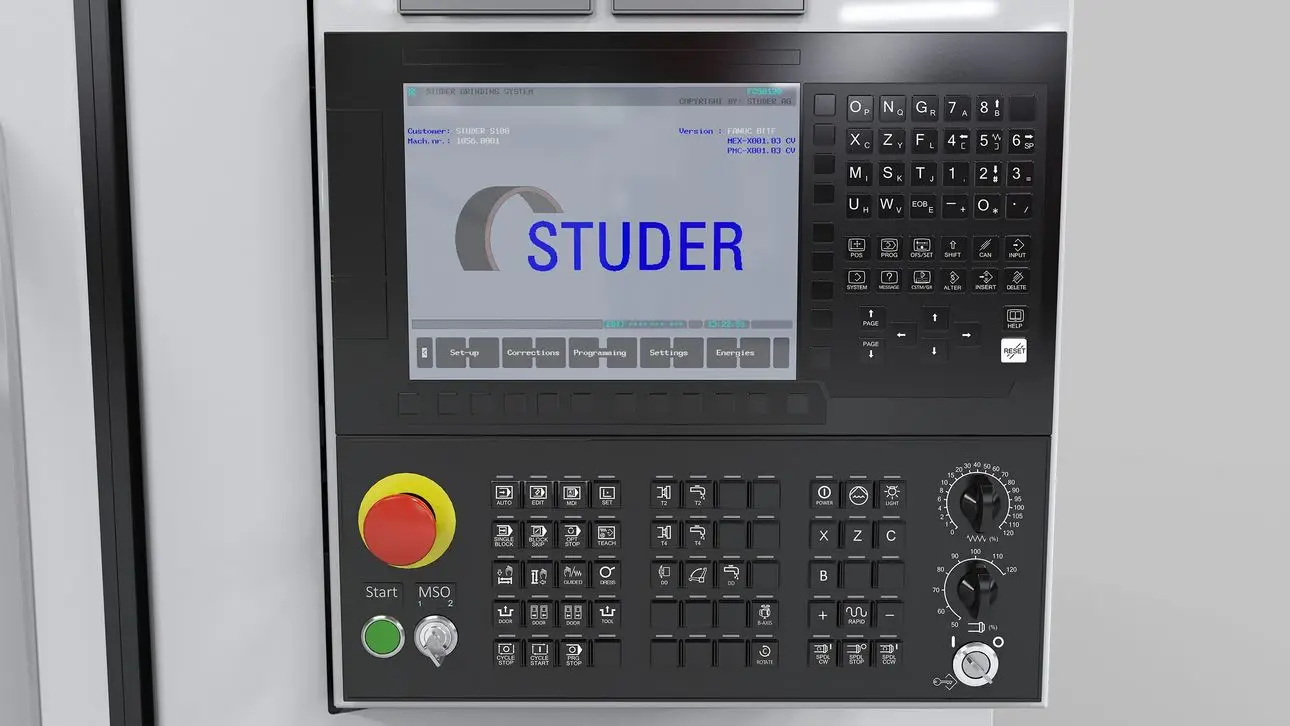

- StuderPictogramming: Programming support using pictograms
- Operator-guided set-up
Manual grinding cycle for one workpiece seat - Short set-up and changeover times with STUDER QuickSet and
automatic grinding spindle turret
Linear Axes
Max. Travel X
Max. Travel Speed X
Max. Travel Z
Max. Travel Speed Z
Max. Travel Speed X
Max. Travel Z
Max. Travel Speed Z
285 mm
10’000 mm/min
800 mm
20’000 mm/min
SPindle Drive
Max. Spindle Power
Max. Number Of Revolutions
Max. Grinding Wheel Diameter
Max. Grinding Wheel Width
Max. Number Of Revolutions
Max. Grinding Wheel Diameter
Max. Grinding Wheel Width
6.8 kW
60’000 /min
400 mm
40 mm
Swiveling Axes
Swiveling Range B
-10 – +190 °
Swiveling Range C
∞ °
Workpiece Data
Workpiece Length
Workpiece Diameter
Center Height
550 mm
420 mm
225 mm
Linear Axes
Max. Travel X: 285mm
Max. Travel Speed X: 10’000 mm/min
Max. Travel Z: 800mm
Max. Travel Speed Z: 20’000 mm/min
SPindle Drive
Max. Spindle Power: 6.8 KW
Max. Number Of Revolutions: 60’000/min
Max. Grinding Wheel Dm: 400mm
Max. Grinding Wheel Width: 40mm
Swiveling Axes
Swiveling Range B
-10- +190 °
Swiveling Range C
∞ °
Workpiece Data
Workpiece Length: 550mm
Workpiece Diameter: 420mm
Center Height: 225mm
