S121
The reasonably priced machine for diverse internal grinding applications.
Basic Data
The S121 is a universal internal cylindrical grinding machine for medium-sized workpieces in individual and small batch production. The reasonably priced universal machine has a swing diameter of 400mm (15.7″).

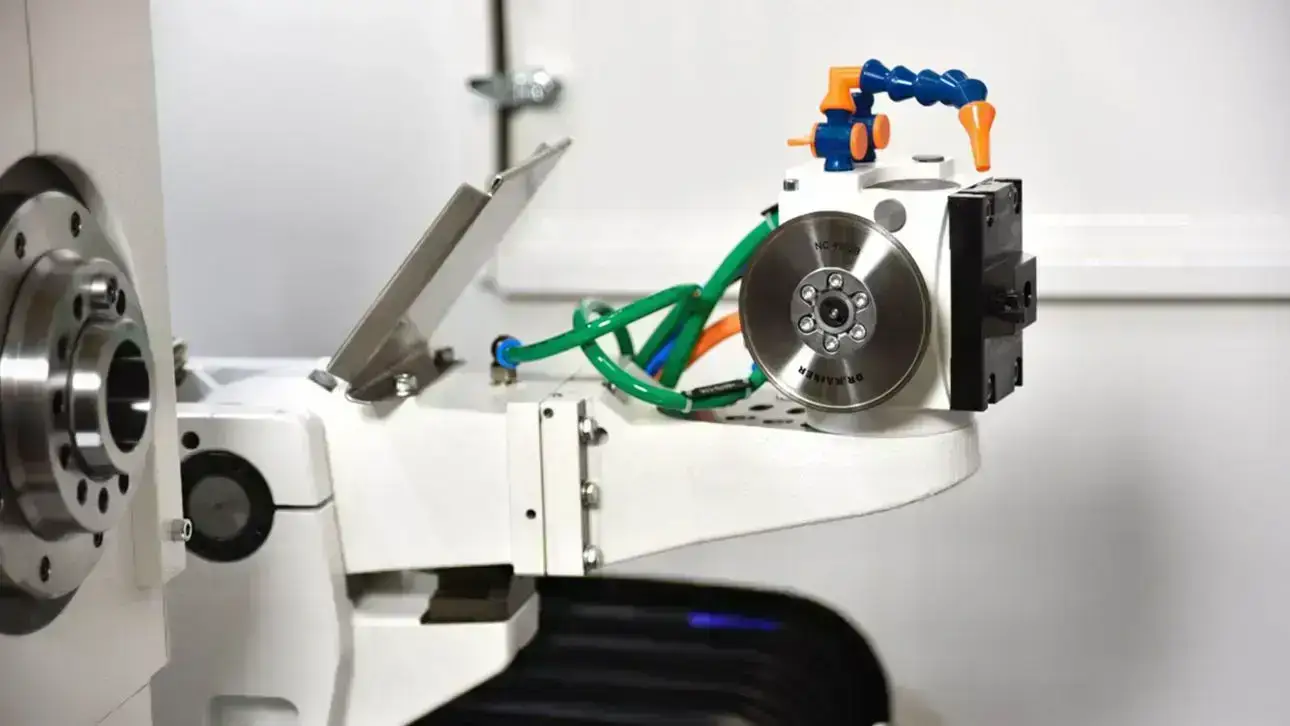

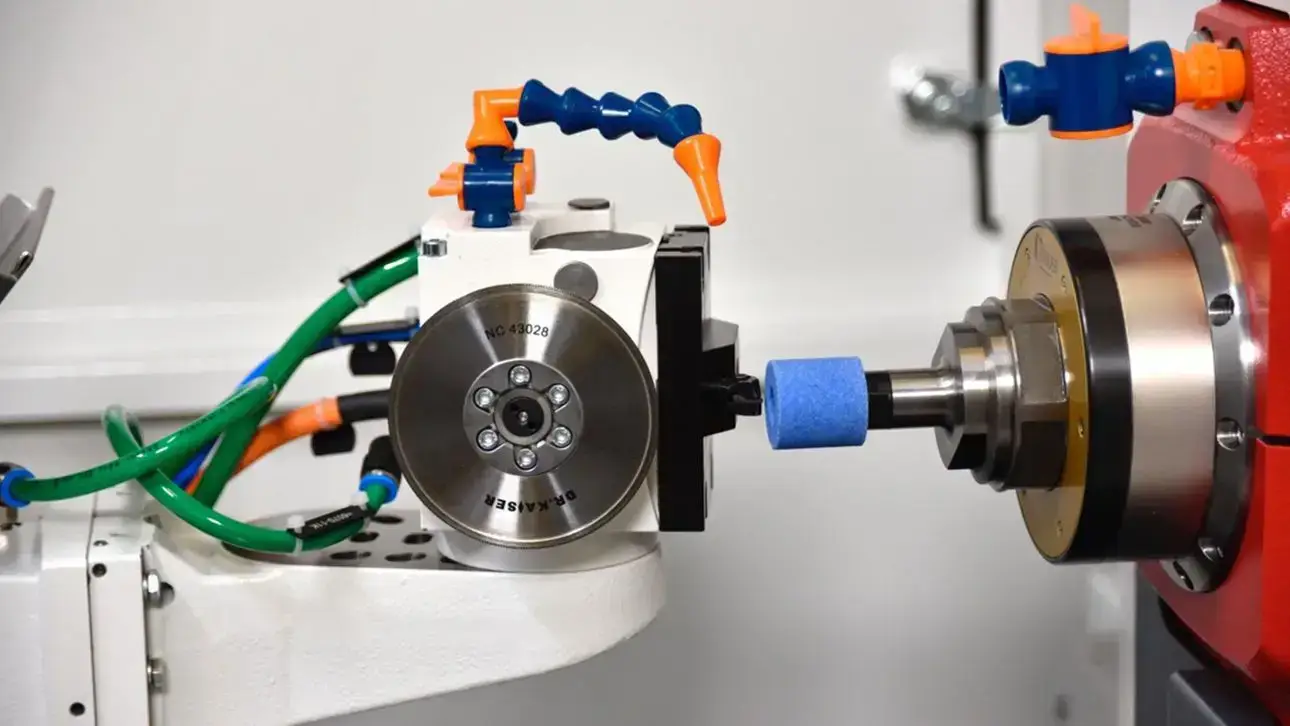

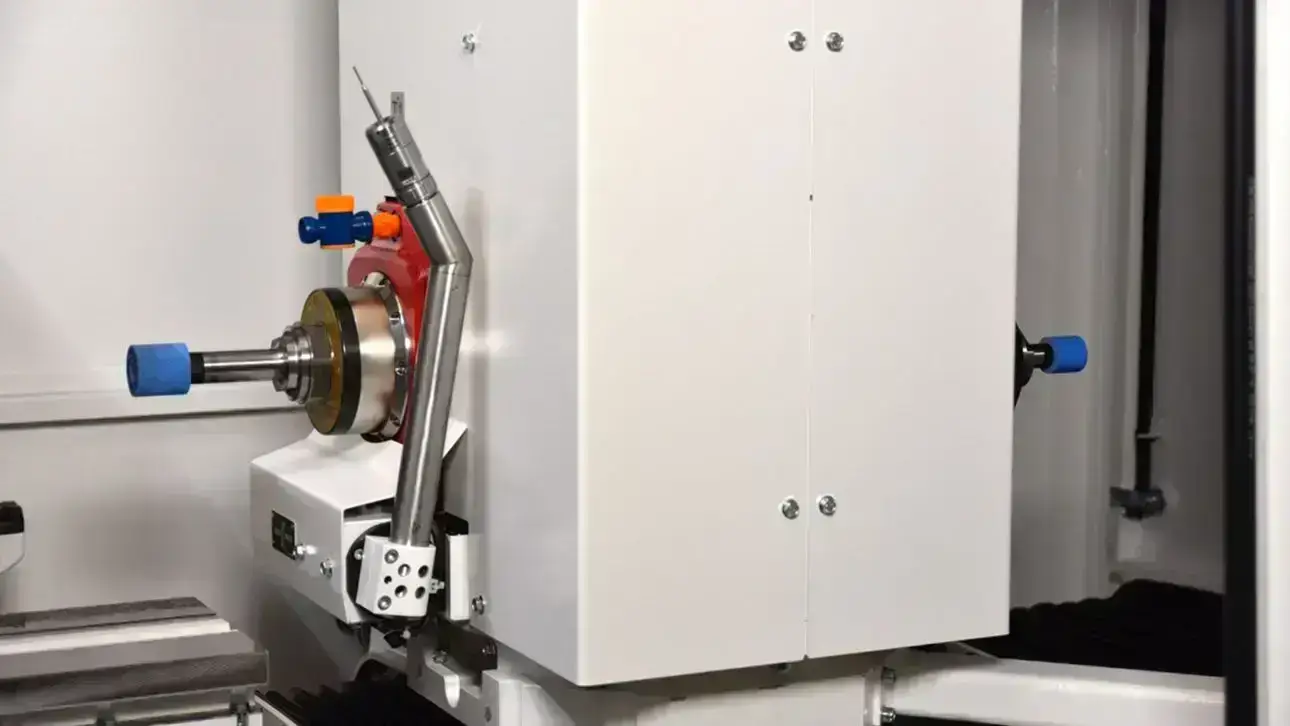

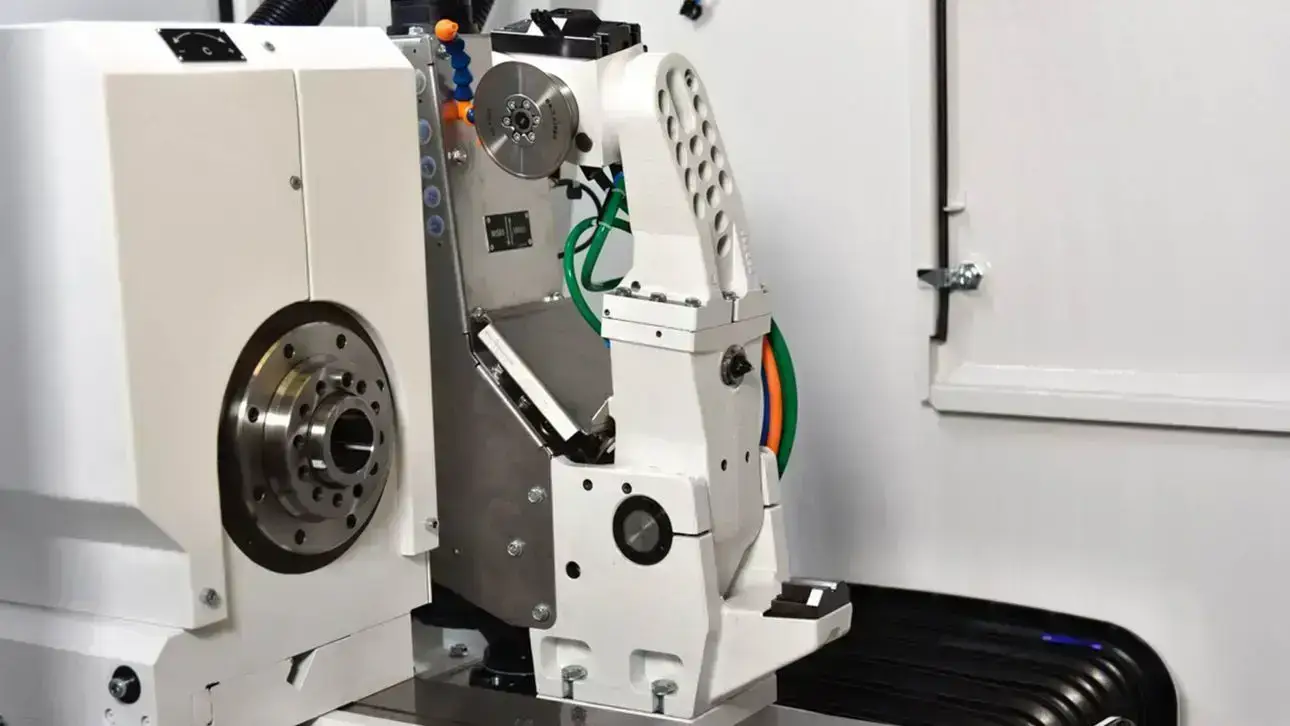

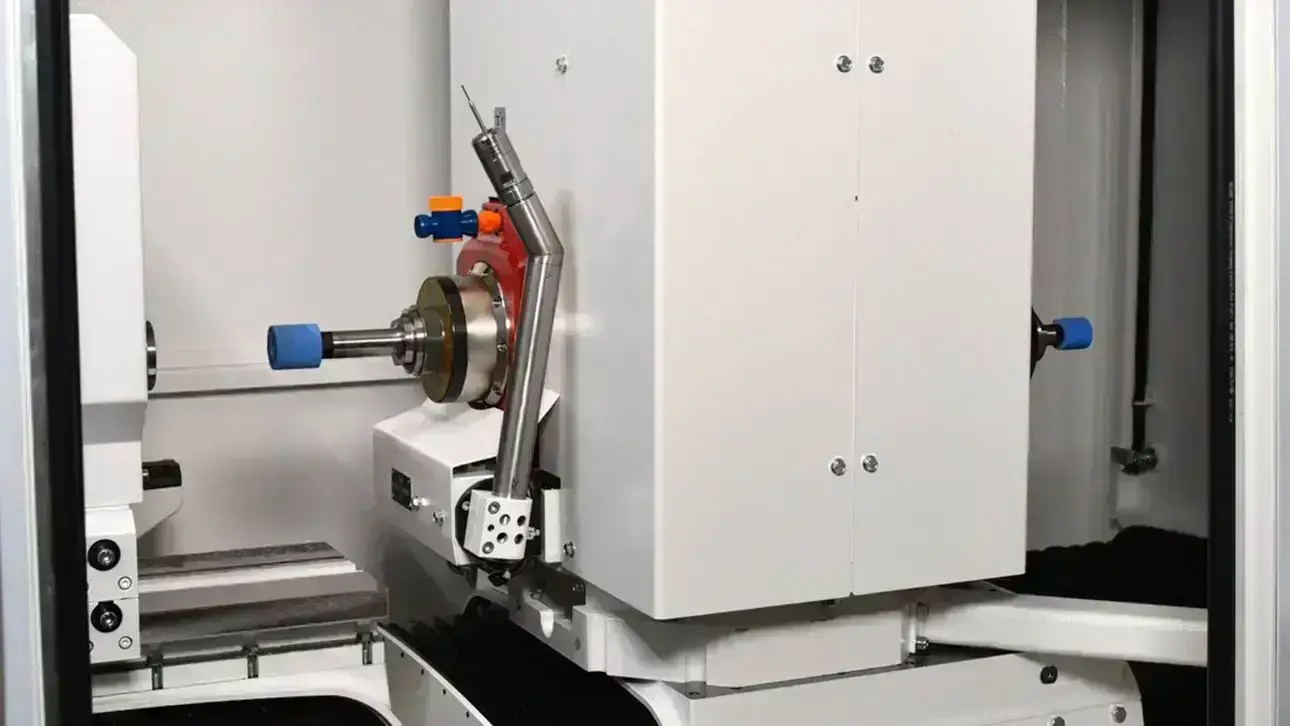

It is the ideal machine for internal, face and external grinding of chuck components. The S121 has a host of sophisticated technical features such as the revolutionary StuderGuide® guideway system, high-precision axis drives with linear motors, a swivel-in dressing unit, etc.
Hardware / Software
Hardware:
- StuderGuide® guide system with linear drive

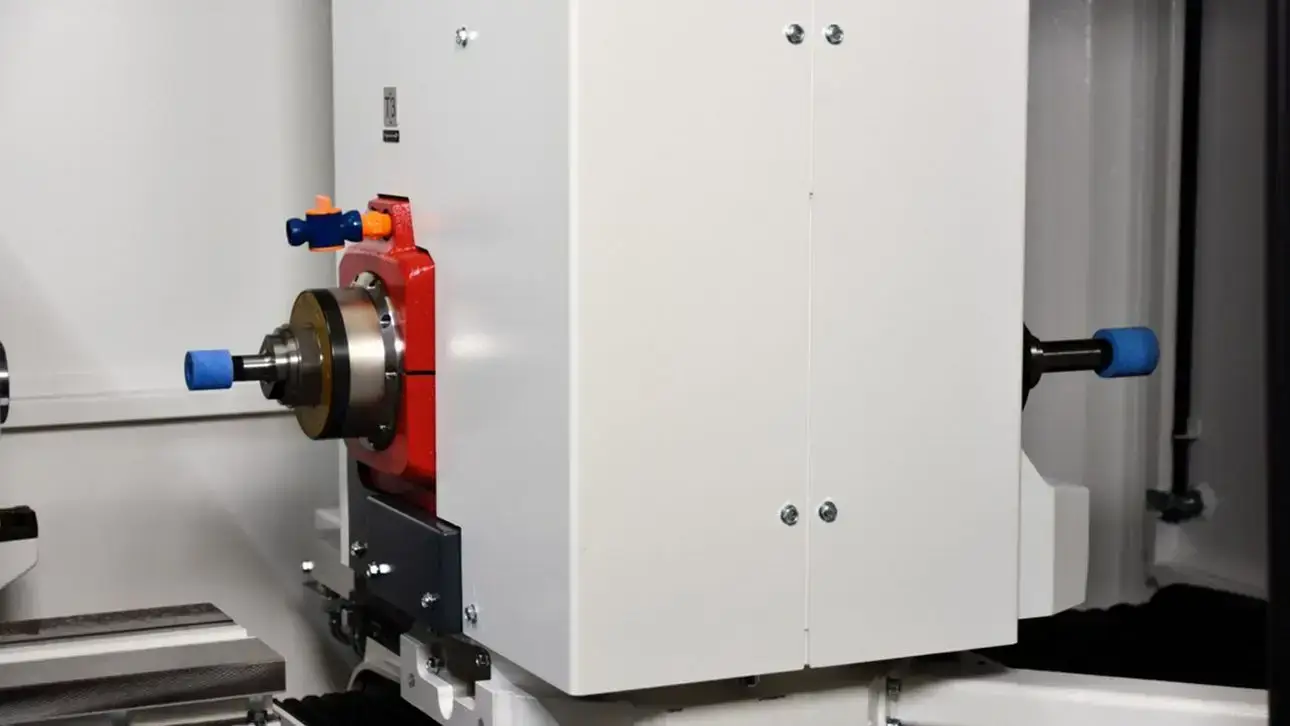

- Spindle turret with two grinding spindles or one fixed spindle

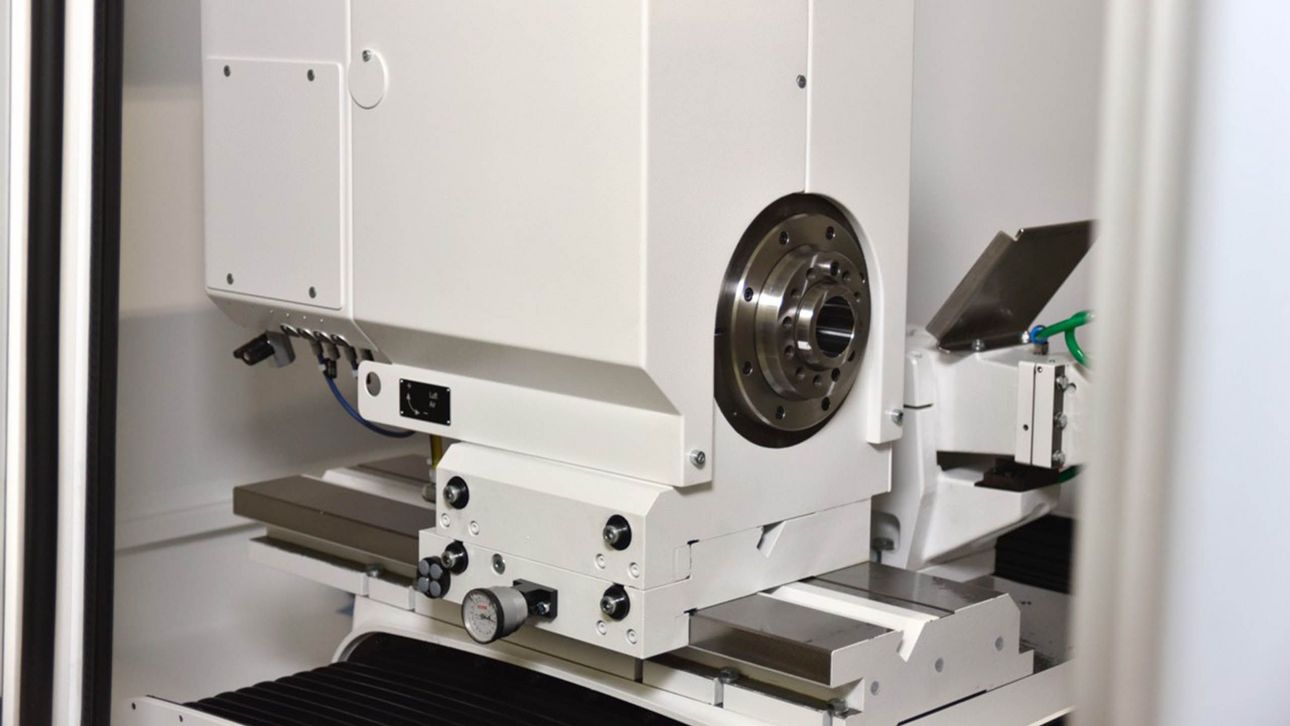

- C-axis for the workhead for form and thread grinding
- Full enclosure with two sliding doors

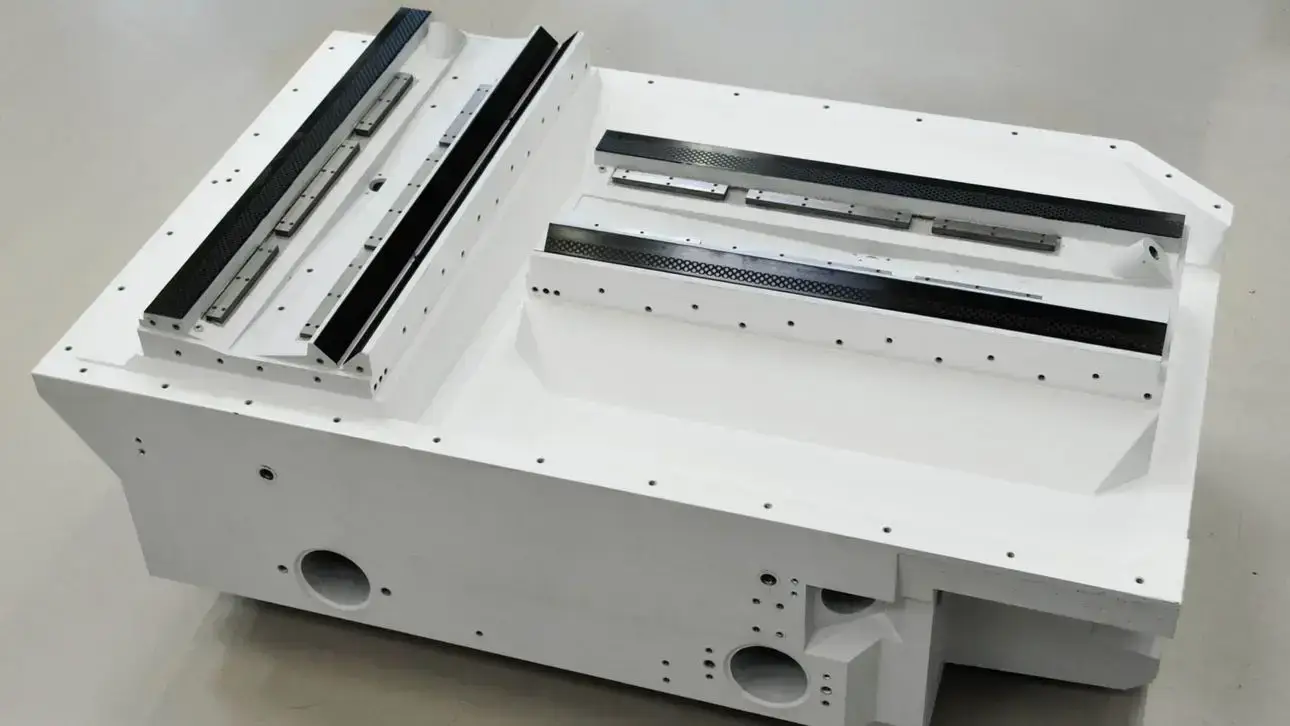

- Granitan® S103 mineral casting machine base
Software:
- Very simple operation and programming thanks to StuderWIN
- Short setup and resetting times e.g. with STUDER Quick-Set
- Standardized interfaces for loader and peripheral devices
Linear Axes
Max. Travel Speed X
Max. Travel Z
Max. Travel Speed Z
350 mm
20’000 mm/min
350 mm
20’000 mm/min
SPindle Drive
Max. Number Of Revolutions
Max. Grinding Wheel Diameter
Max. Grinding Wheel Width
18 kW
120’000 /min
300 mm
32 mm
Swiveling Axes
Swiveling Range B
180 °
Workpiece Data
Workpiece Length
Workpiece Diameter
Max. Workpiece Weight
Center Height
300 mm
360 mm
100kg
200 mm
Linear Axes
Max. Travel X: 350mm
Max. Travel Speed X: 20’000 mm/min
Max. Travel Z: 250mm
Max. Travel Speed Z: 20’000 mm/min
SPindle Drive
Max. Spindle Power: 18 KW
Max. Number Of Revolutions: 120’000/min
Max. Grinding Wheel Dm: 300mm
Max. Grinding Wheel Width: 32mm
Swiveling Axes
Swiveling Range B
180 °
Workpiece Data
Workpiece Length: 300mm
Workpiece Diameter: 360mm
Max. Workpiece Weight: 100kg
Center Height: 200mm
