S131
The universal machines for a broad range of internal cylindrical grinding applications.
Basic Data

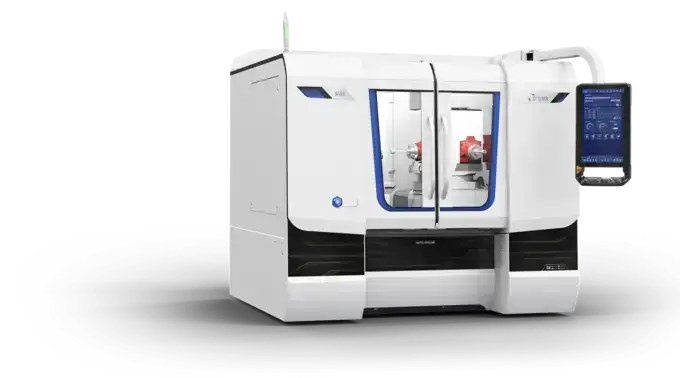

The S131 is a CNC universal internal cylindrical grinding machine of the latest generation. The swing diameter above the workpiece table is 250 mm (9.8″), and the maximum workpiece length (including clamping device) is 300 mm (11.8″).
The compact machine shows its strength with flange parts and smaller workpieces of all types. It has a host of sophisticated technical features such as the revolutionary StuderGuide® guideway system, high-precision axis drives with linear motors, extremely fast direct drive of the grinding spindle turret, automatic swiveling of the workpiece table etc.
Hardware / Software
Hardware:

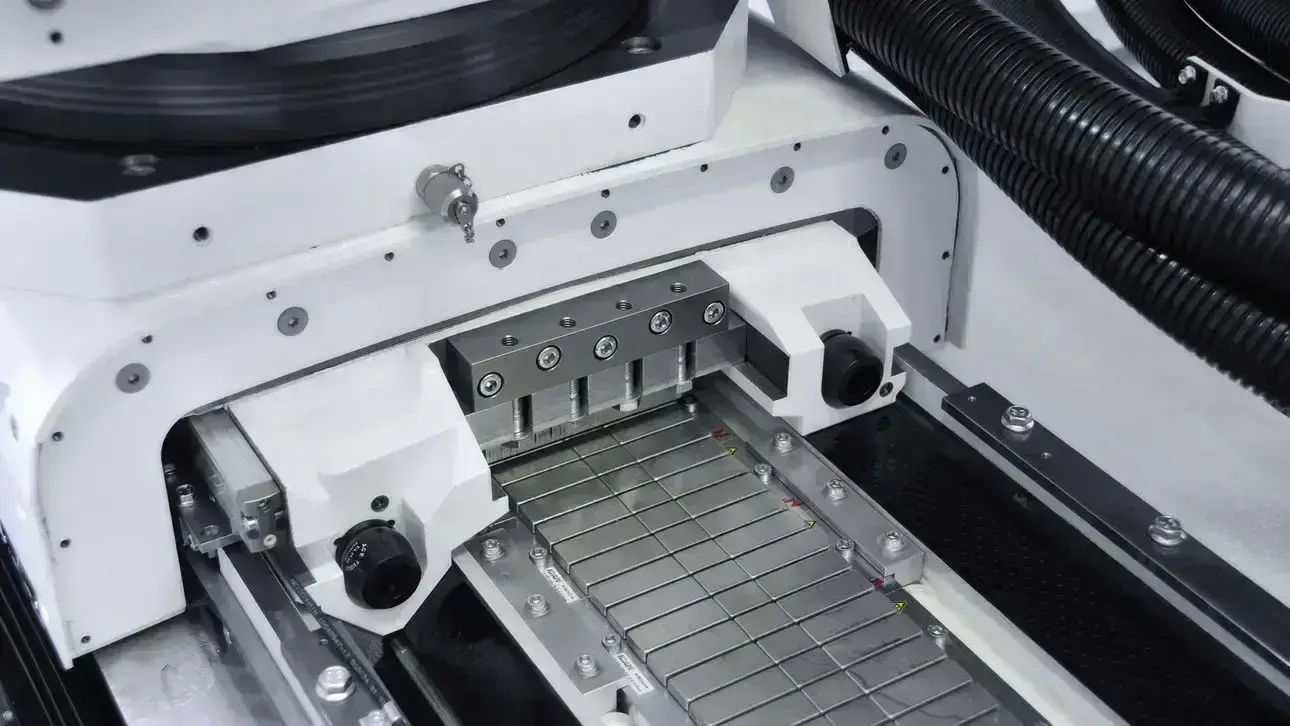

- StuderGuide® guide system with linear drive

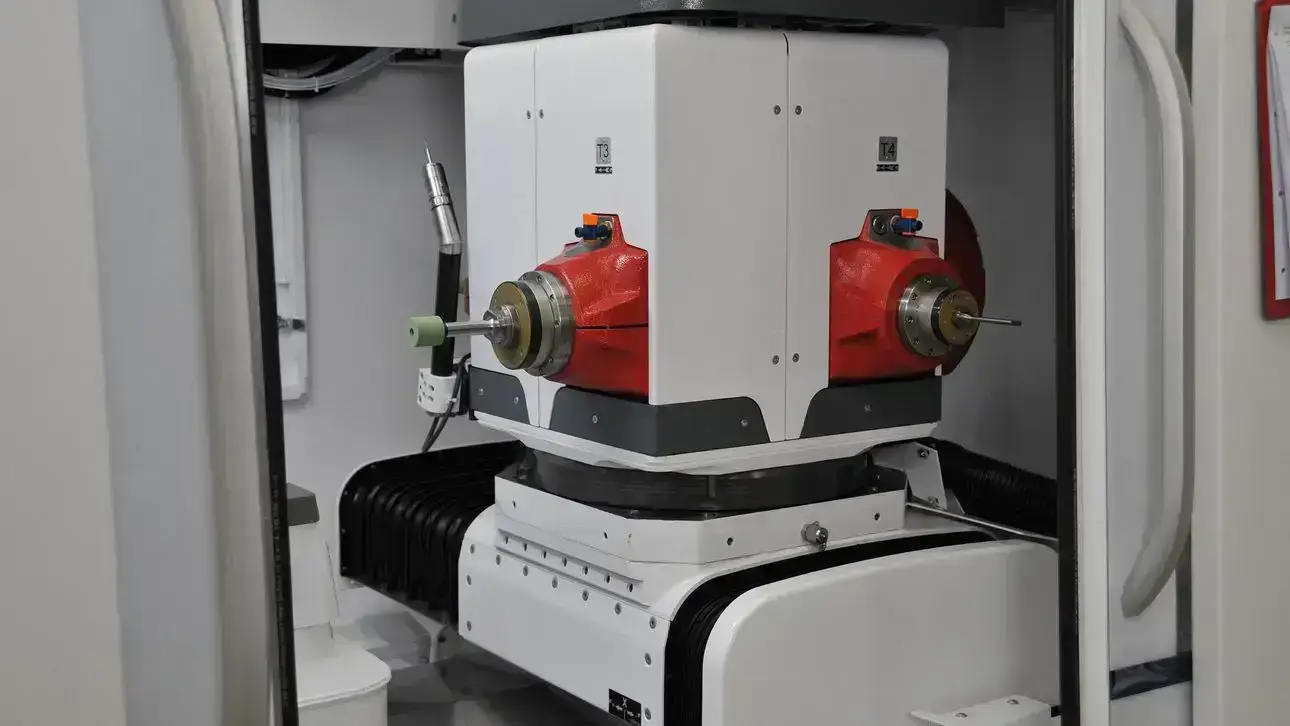

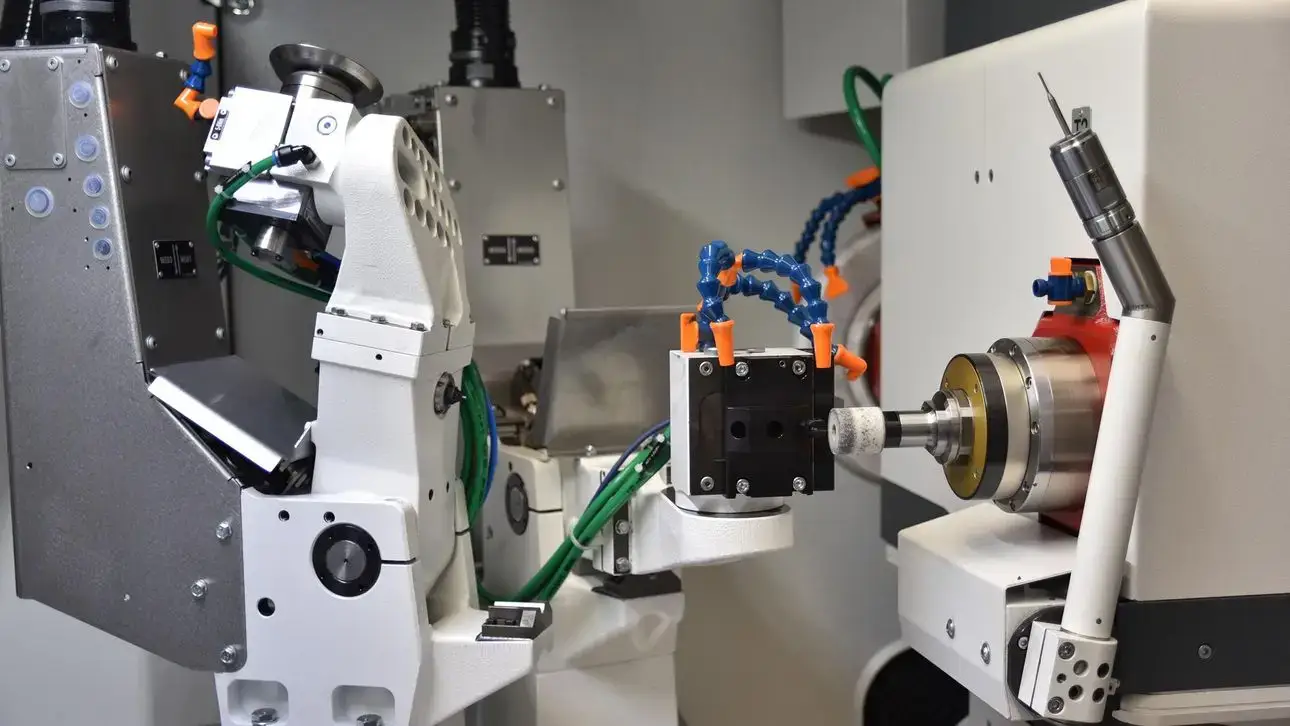

- Grinding spindle turret with up to four grinding spindles

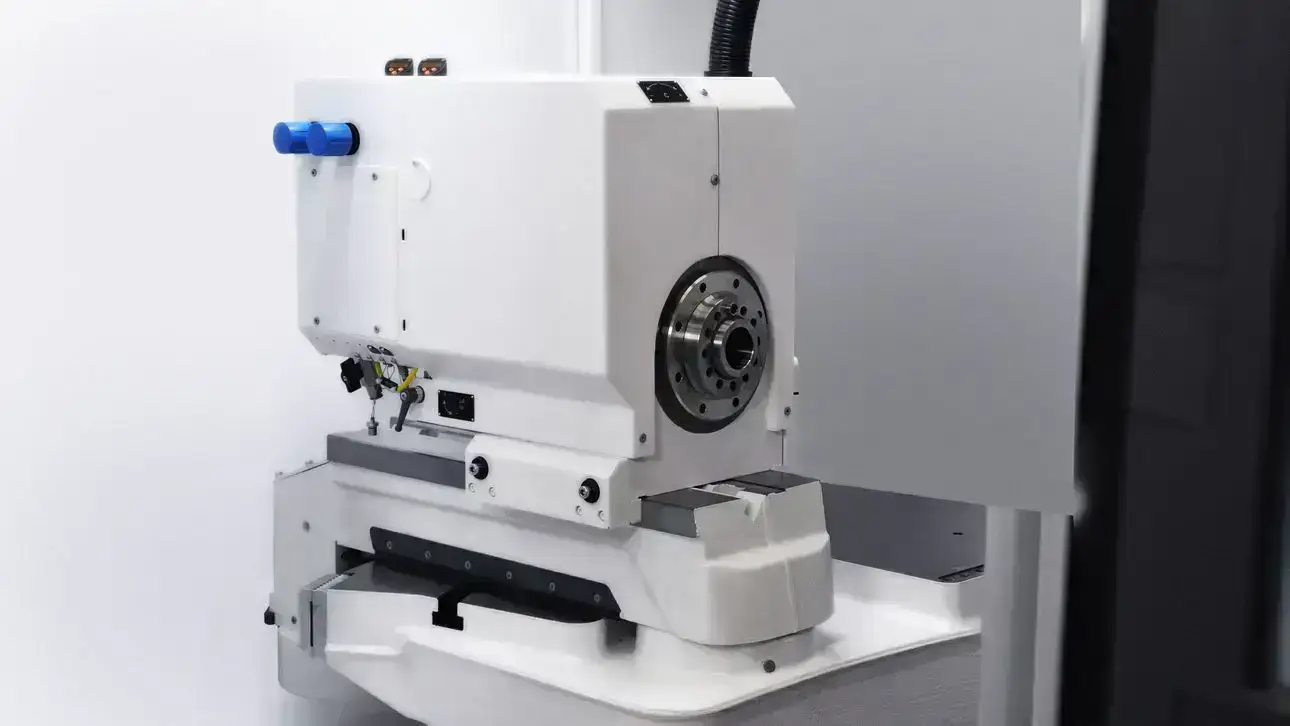

- Automatically swiveling workpiece table
- C-axis for workhead spindle for form and thread grinding
- Full enclosure with two sliding doors
- Granitan® S103 mineral casting machine base
Software:

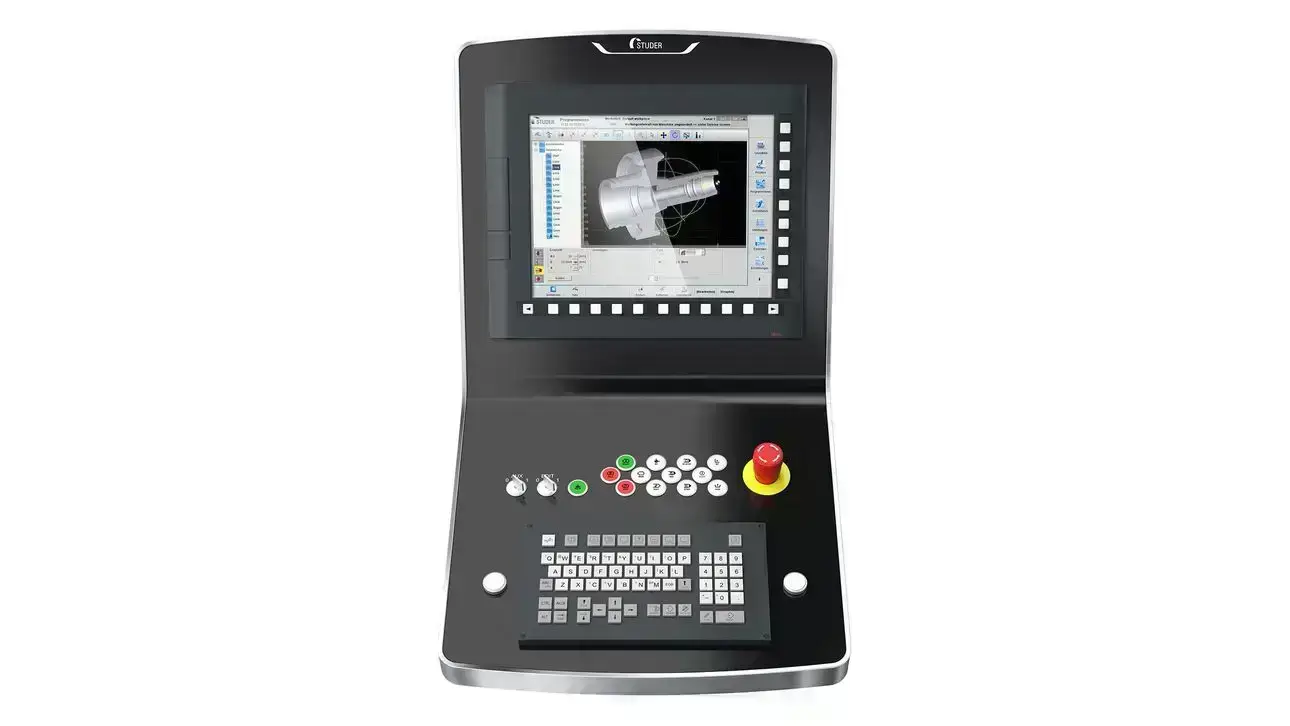

- Very simple operation and programming thanks to StuderWIN
- Short setup and resetting times e.g. with STUDER Quick-Set
- Standardized interfaces for loader and peripheral devices
Linear Axes
Max. Travel Speed X
Max. Travel Z
Max. Travel Speed Z
350 mm
20’000 mm/min
400 mm
20’000 mm/min
SPindle Drive
Max. Number Of Revolutions
Max. Grinding Wheel Diameter
Max. Grinding Wheel Width
15 kW
120’000 /min
250 mm
25 mm
Swiveling Axes
Swiveling Range B
330 °
Workpiece Data
Workpiece Length
Workpiece Diameter
Max. Workpiece Weight
Center Height
300 mm
250 mm
100kg
125 mm
Linear Axes
Max. Travel X: 350mm
Max. Travel Speed X: 20’000 mm/min
Max. Travel Z: 400mm
Max. Travel Speed Z: 20’000 mm/min
SPindle Drive
Max. Spindle Power: 15 KW
Max. Number Of Revolutions: 120’000/min
Max. Grinding Wheel Dm: 250mm
Max. Grinding Wheel Width: 25mm
Swiveling Axes
Swiveling Range B
330 °
Workpiece Data
Workpiece Length: 300mm
Workpiece Diameter: 250mm
Max. Workpiece Weight: 100kg
Center Height: 125mm
