S22
The production platform for your individual grinding solution.
Basic Data

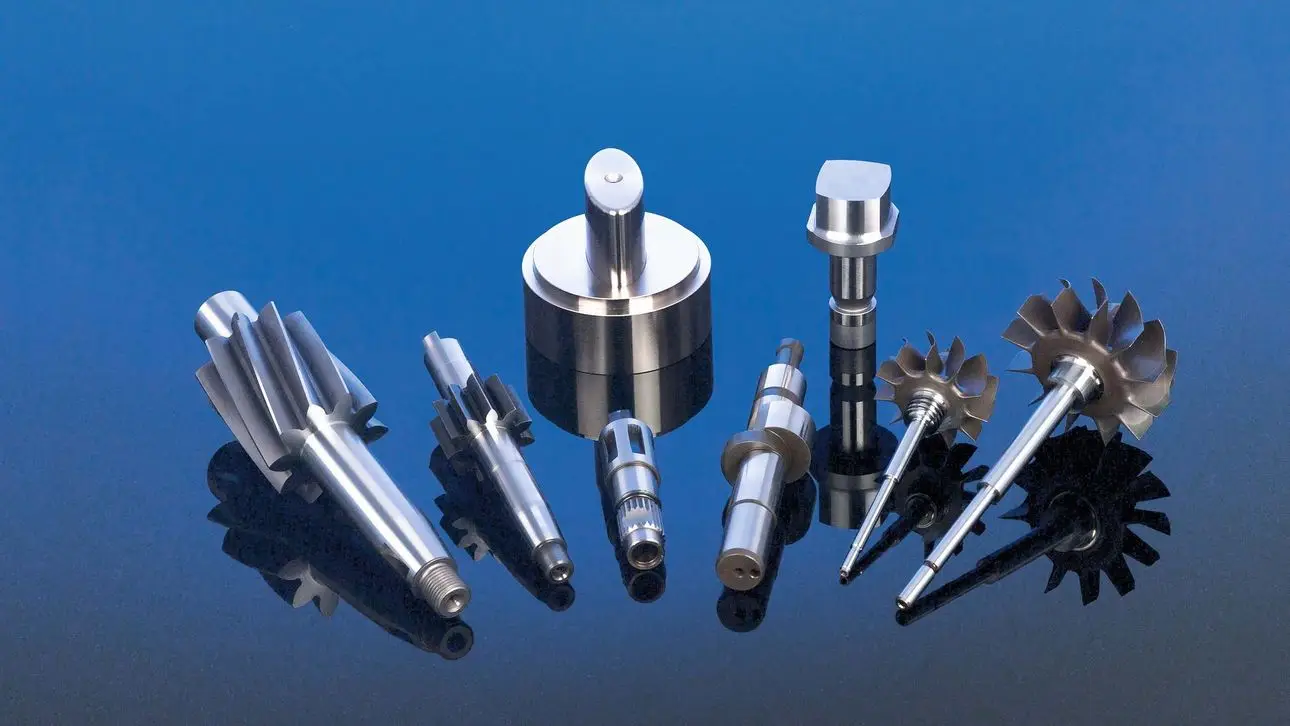

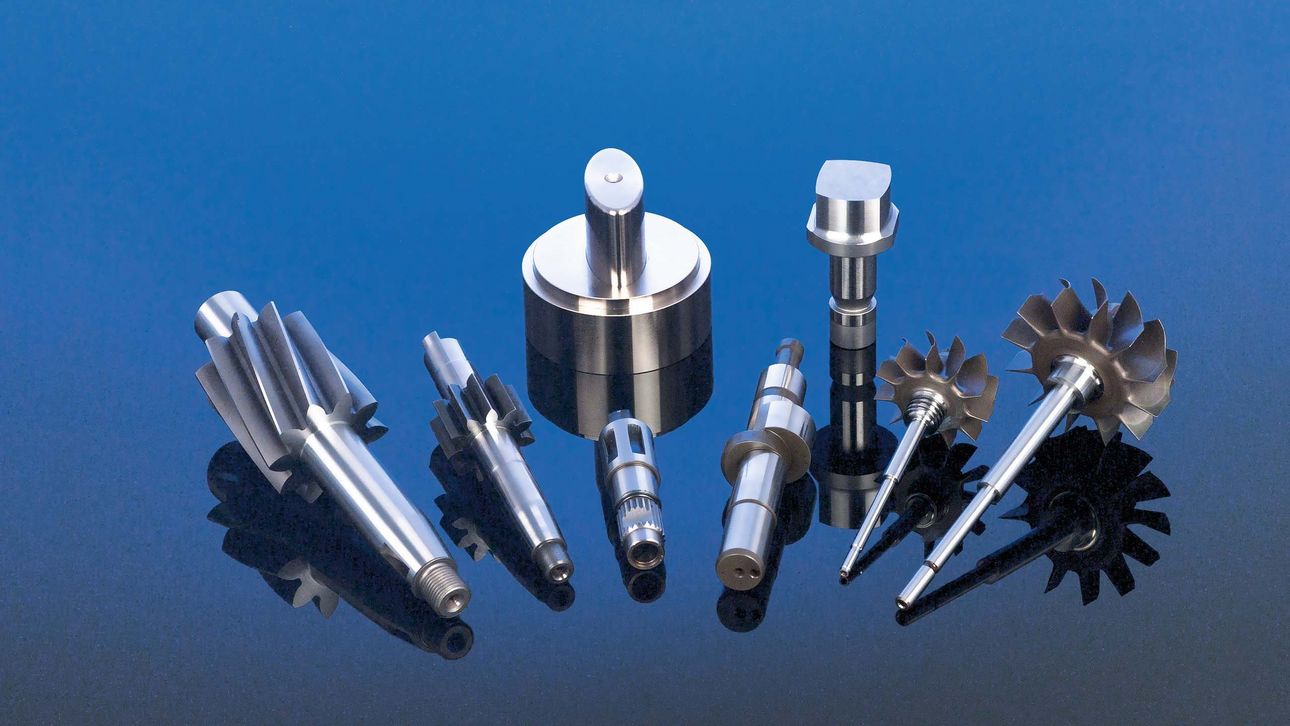

The S22 is a production platform for the mass production of medium-sized workpieces. It has distances between centres of 800 mm (31.5″) and centre heights of 175mm (6.9″) / 225mm (8.8″). It can machine workpieces with a maximum weight of 150kg (330lbs).
The S22 with its extensive expansion options can be configured for every grinding application to be the perfect production machine. Highly dynamic axis drives, high-quality STUDER guideway systems, short reaction times and optimized traverses form the basis of the S22. The high-speed grinding option (HSG) contributes to increasing productivity with its peripheral speed of up to 140m/s (27,600 sfpm).
Hardware / Software
Hardware:

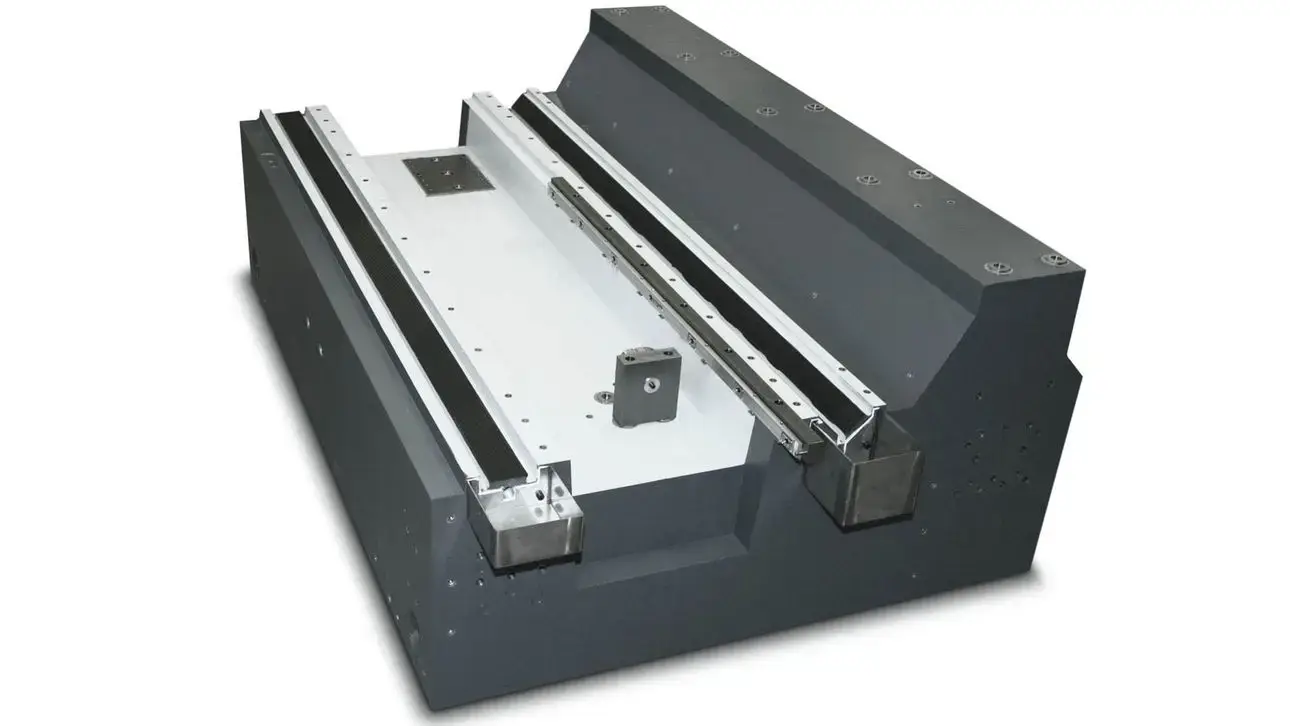

- Granitan® S103 mineral casting machine base

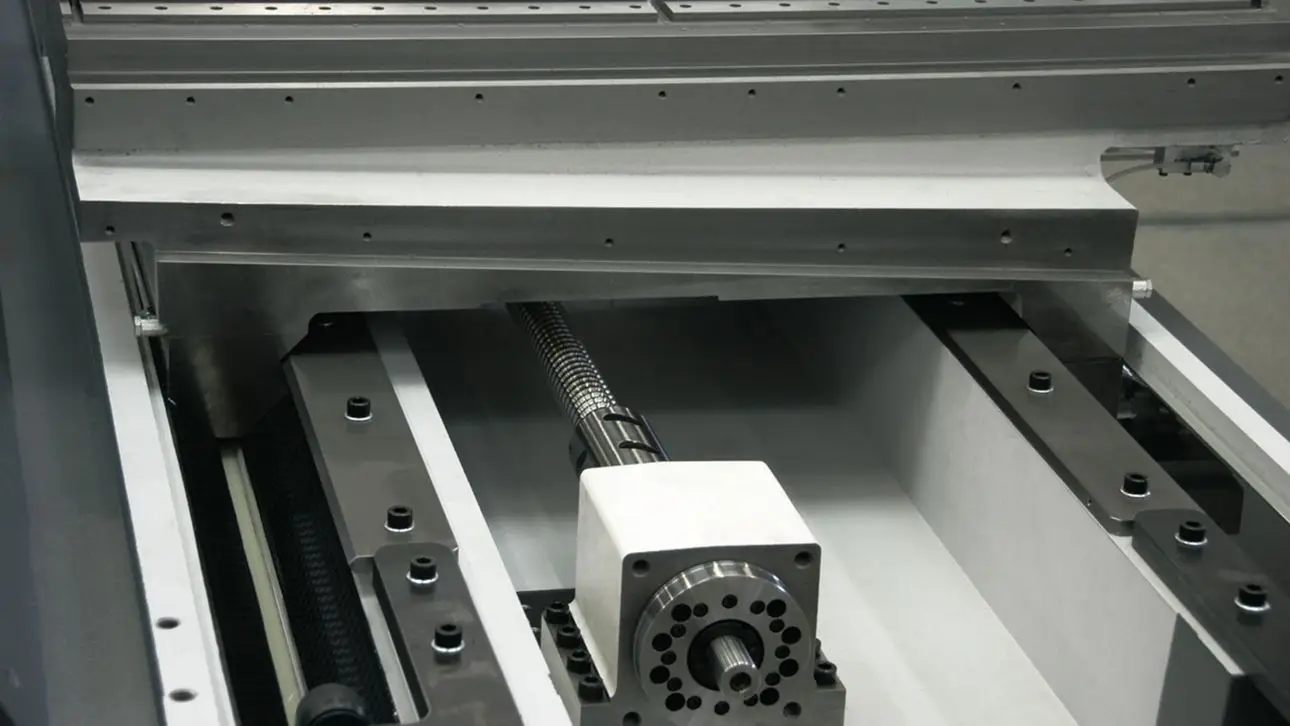

- Cross slide X: anti-friction guideways with ball-screw

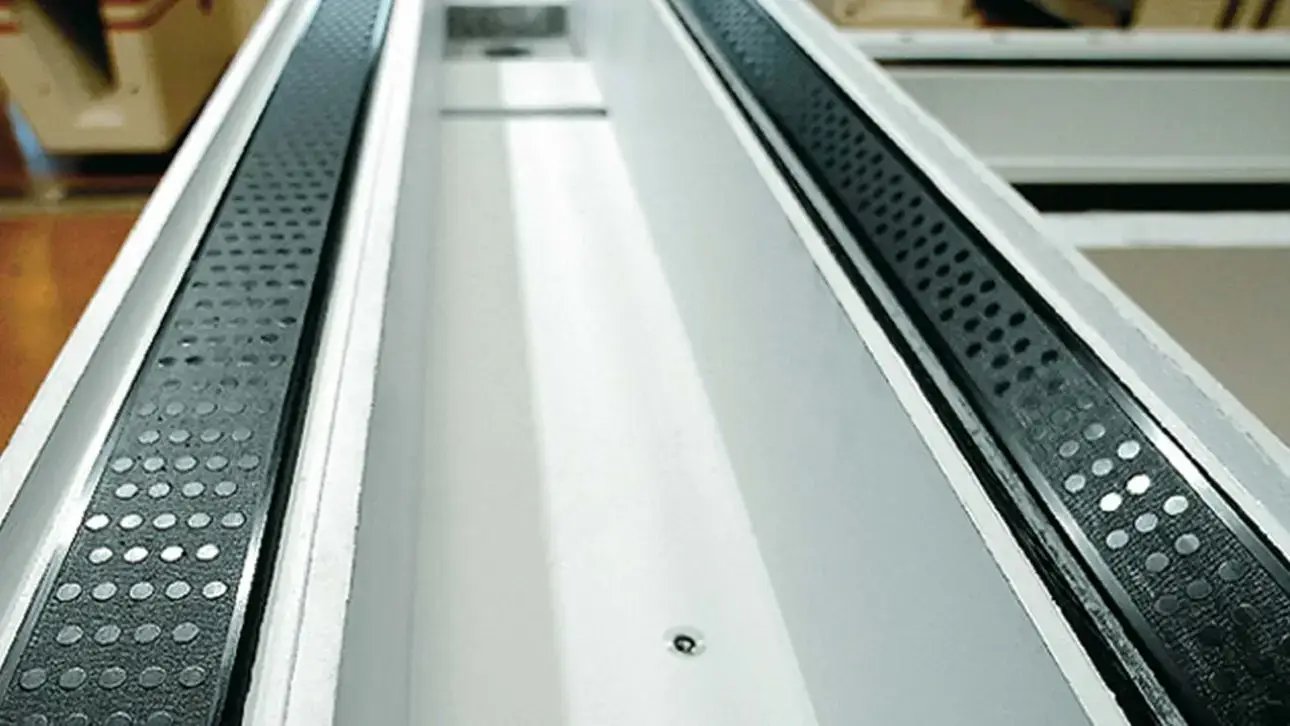

- Longitudinal slide Z: guideway with patented surface structure and ball-screw drive

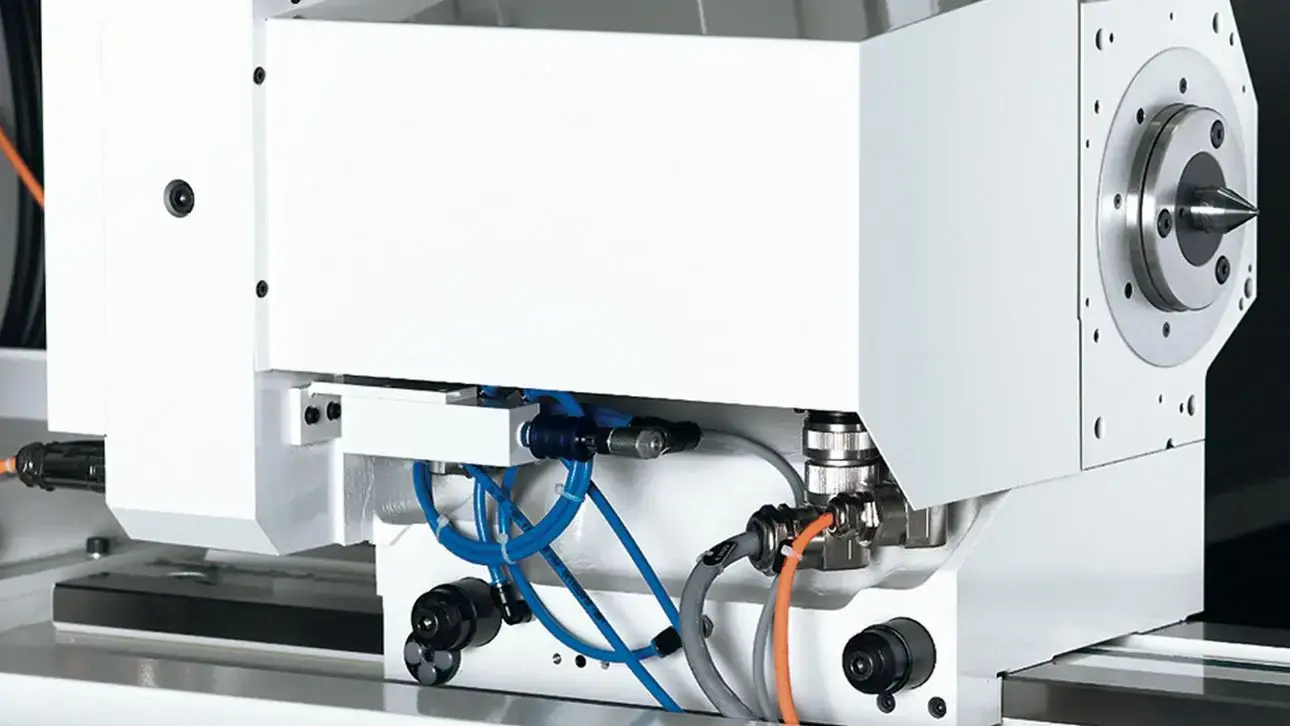

- C-axis for the workhead

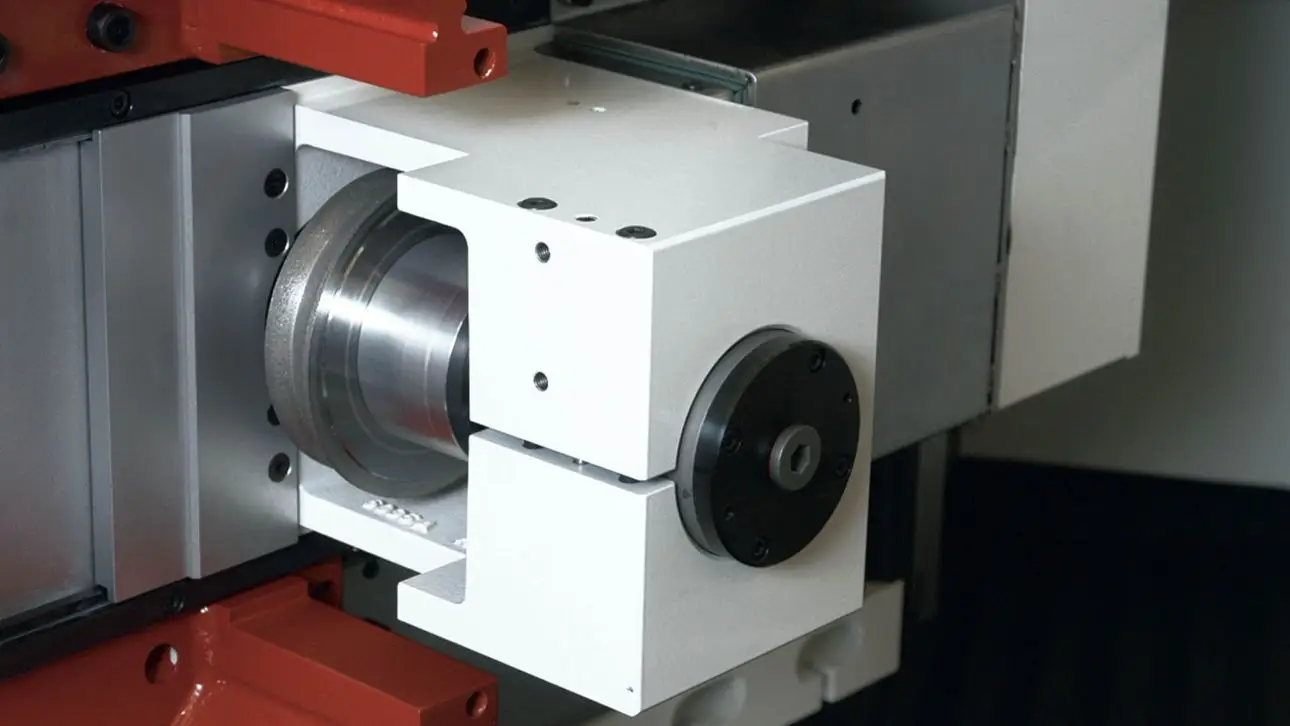

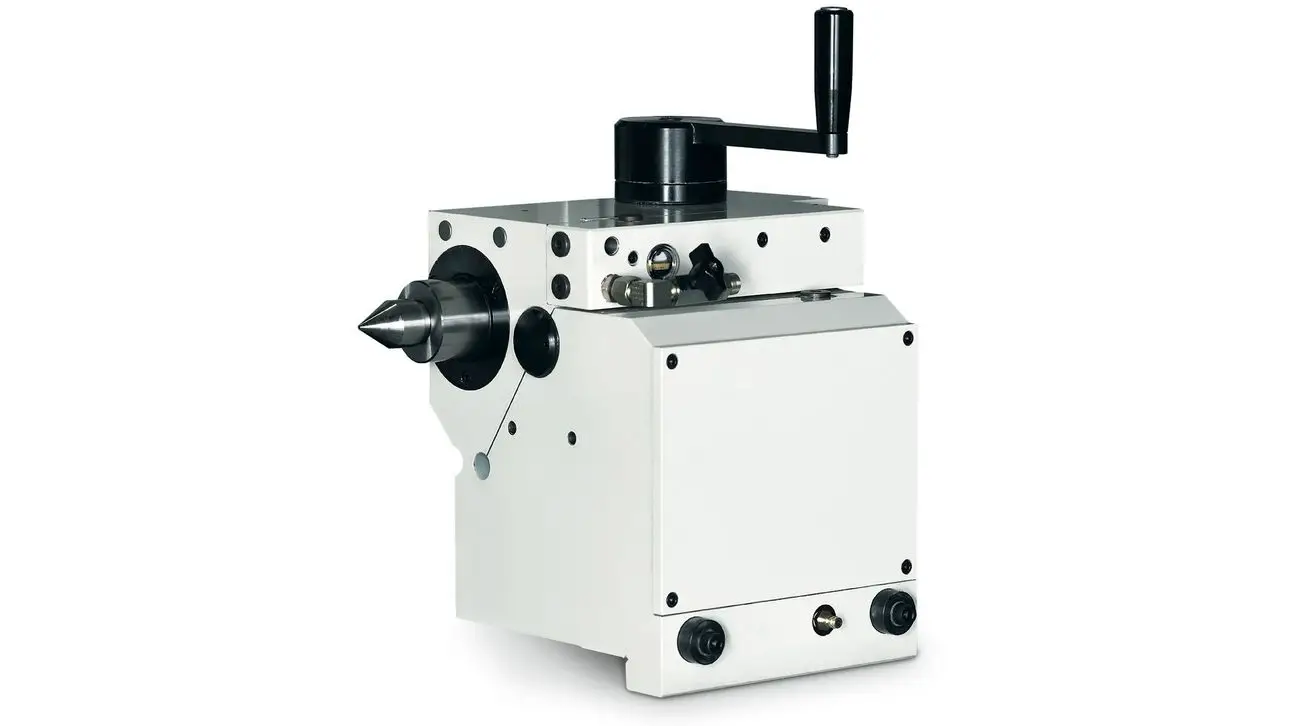

- Application-specific workhead concepts
- Additional NC axis for profiling the grinding wheel
- Full enclosure with movable front panels for optimal accessibility
- Integrated loading unit or loading cell for loading and unloading from left, right or above

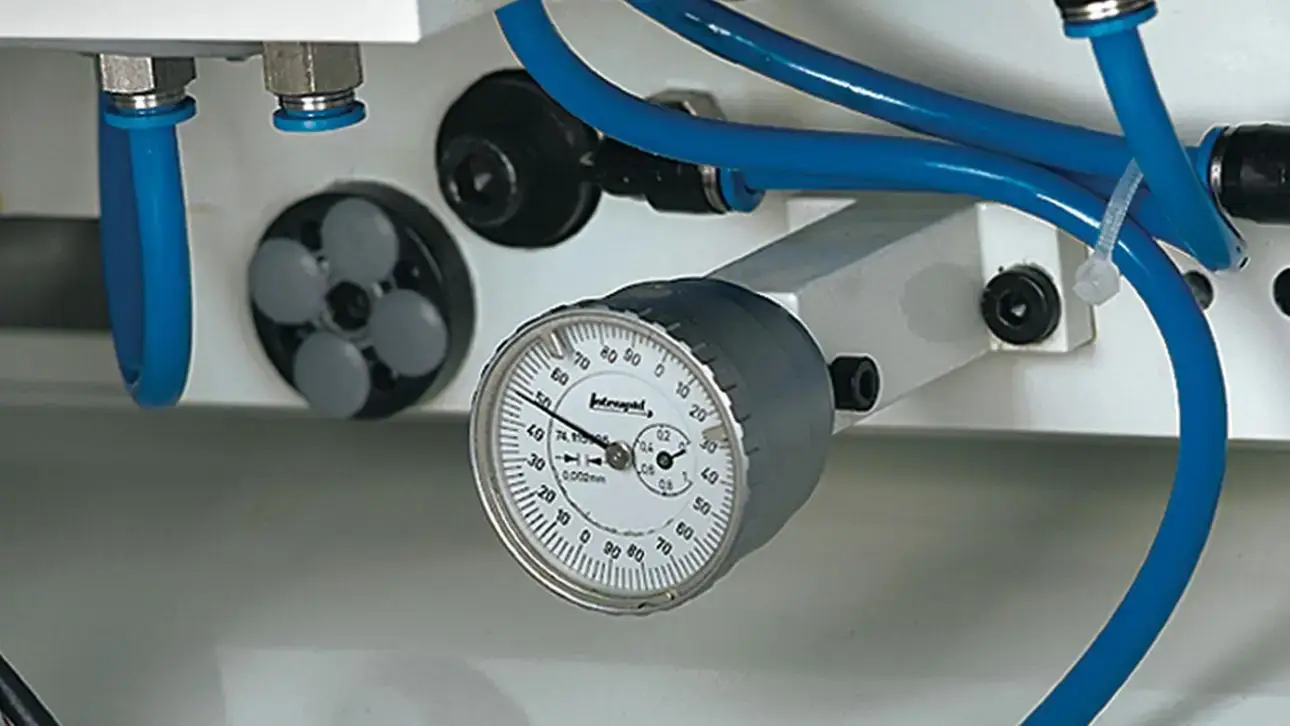

- Large range of accessories
Software:
- Easy programming with StuderWIN on Fanuc 31i-A
- StuderGRIND programming software to create grinding and
dressing programs - Standardized interfaces for loader and peripheral devices
Linear Axes
Max. Travel Speed X
Max. Travel Z
Max. Travel Z
Max. Travel Speed Z
15’000 mm/min
100 mm
850 mm
30’000 mm/min

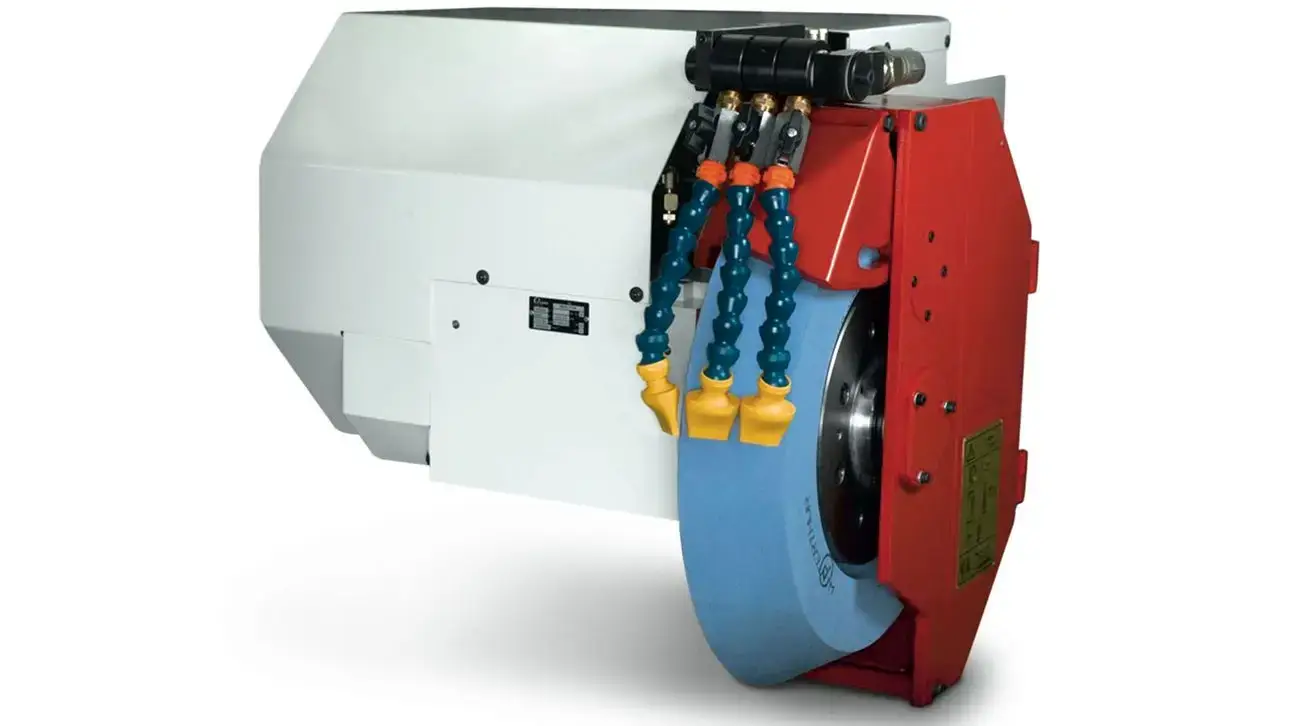

SPindle Drive
Max. Number Of Revolutions
Max. Grinding Wheel Diameter
Max. Grinding Wheel Width
15 kW
3’200 /min
610 mm
160 mm

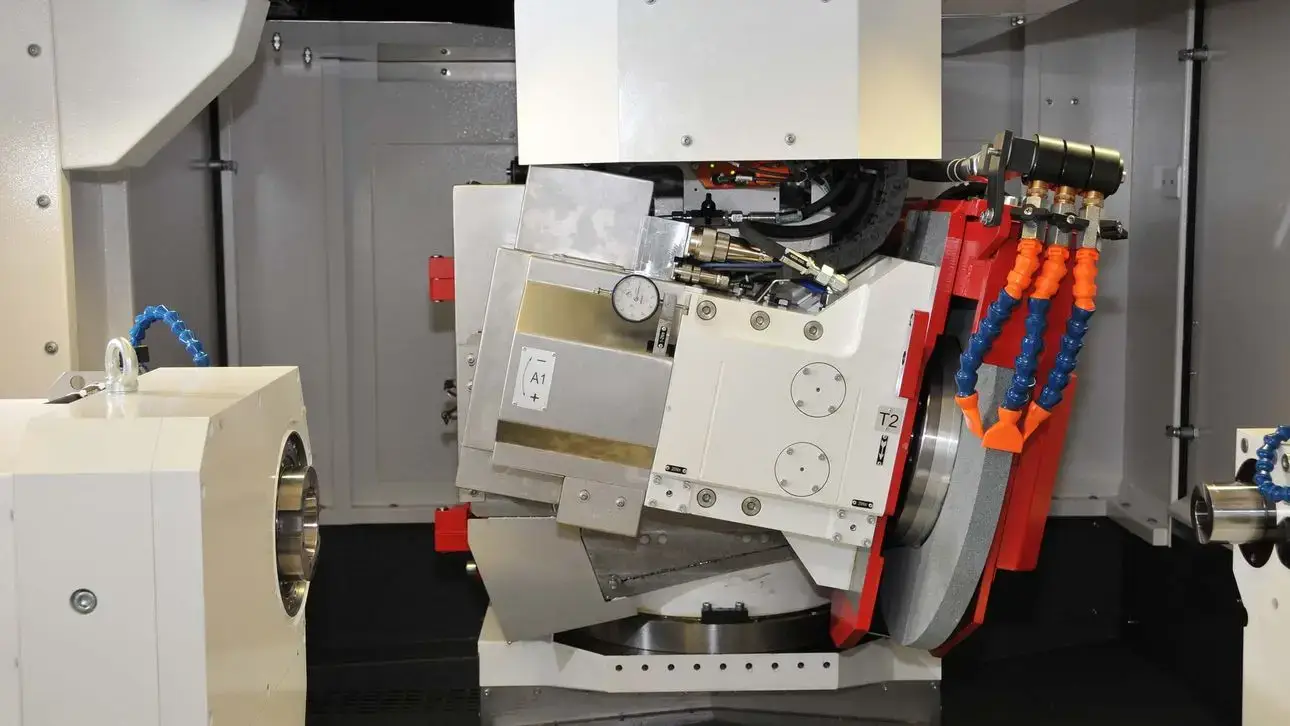

Swiveling Axes
Swiveling Range A
26 °
Swiveling Range B
195 °
Swiveling Range C
Workpiece Data
Workpiece Diameter
Max. Workpiece Weight
Distance Between Centers
Center Height
700 mm
449 mm
150 kg
800 mm
225 mm
Linear Axes
Max. Travel X: 310mm
Max. Travel Speed X: 15’000 mm/min
Max. Travel Z: 100mm
Max. Travel Z: 850mm
Max. Travel Speed Z: 30’000 mm/min
SPindle Drive
Max. Spindle Power: 15 KW
Max. Number Of Revolutions: 3’200/min
Max. Grinding Wheel Dm: 610mm
Max. Grinding Wheel Width: 160mm
Swiveling Axes
Swiveling Range A
26 °
Swiveling Range B
195 °
Workpiece Data
Workpiece Length: 700mm
Workpiece Diameter: 449mm
Max. Workpiece Weight: 150Kg
Distance Between Centers: 800mm
Center Height: 225mm
