S36
The high-performance machine for automated processes.
Basic Data
Hardware / Software
Hardware:

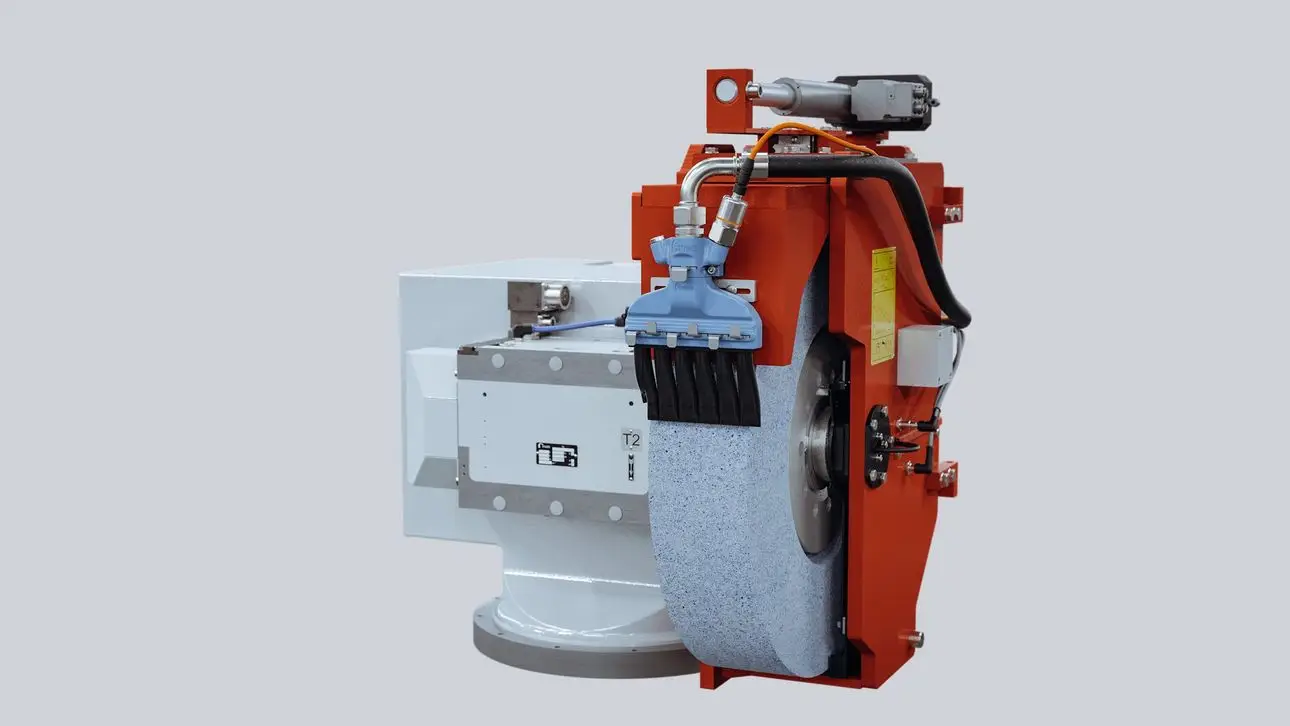

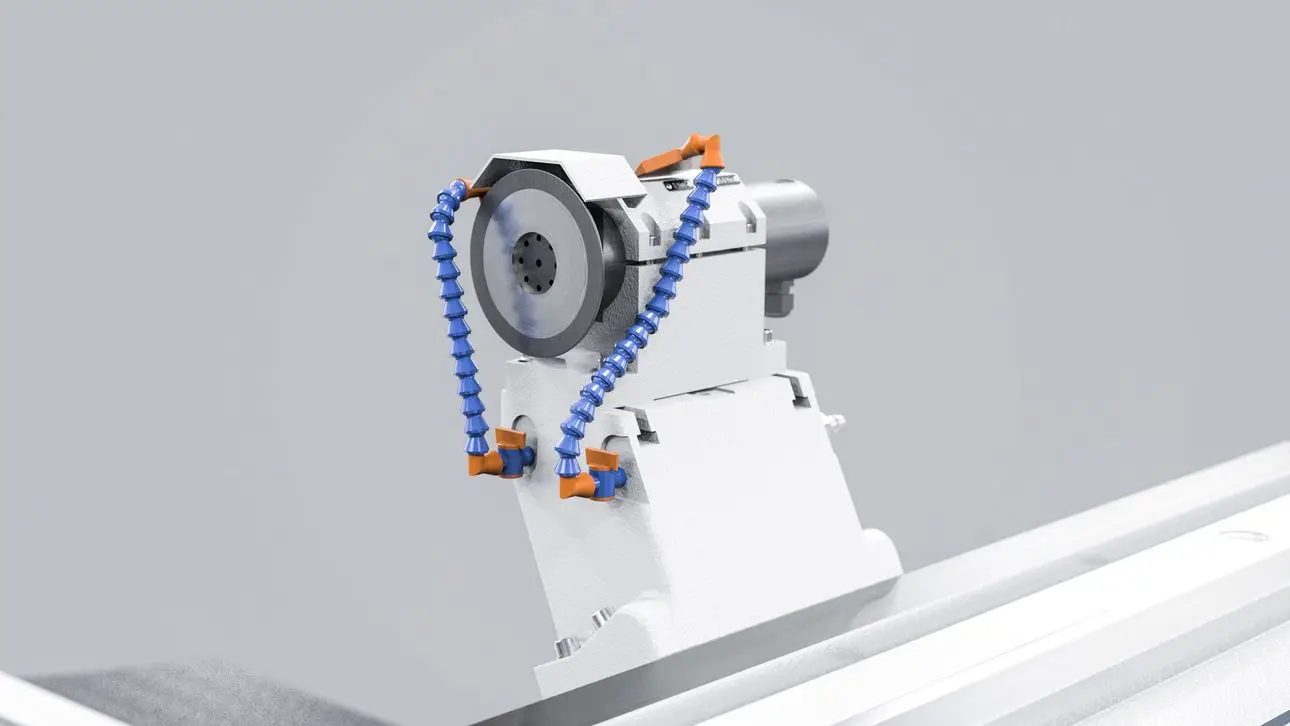

- External wheelhead with grinding wheel right, 0° / 15° / 30°
- Frequency-controlled motor grinding spindle for external grinding

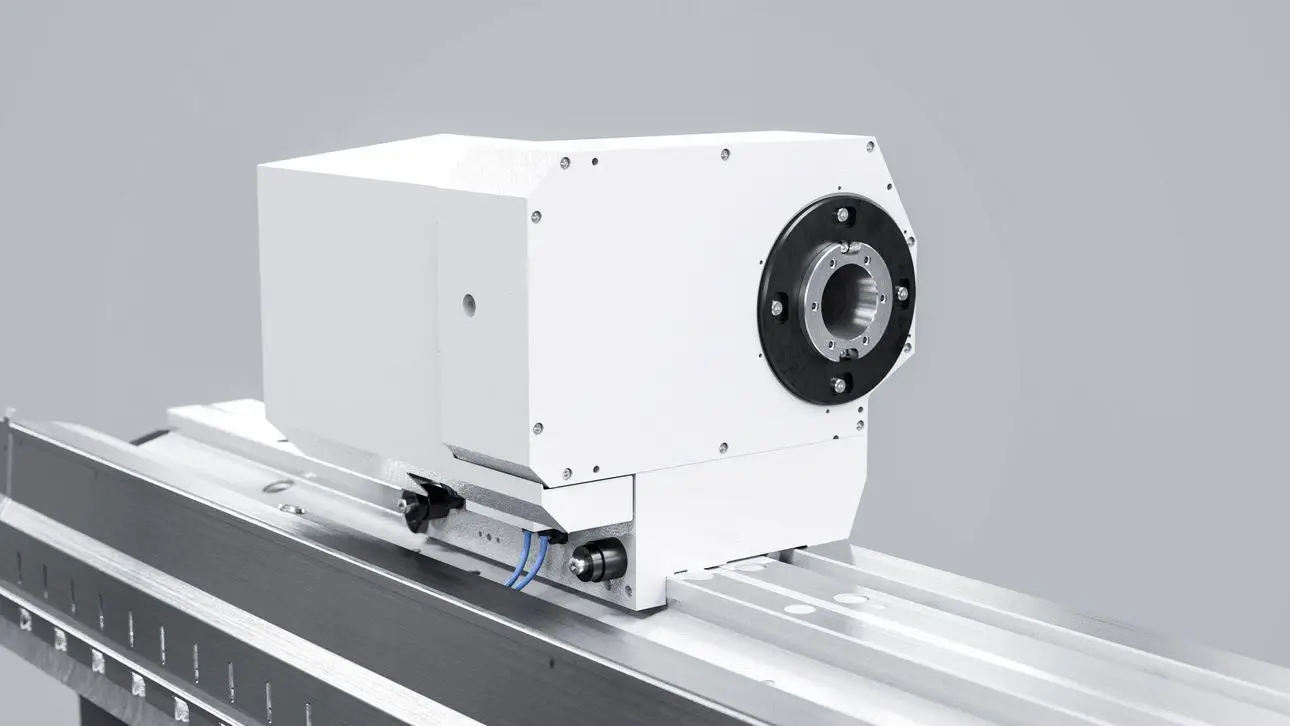

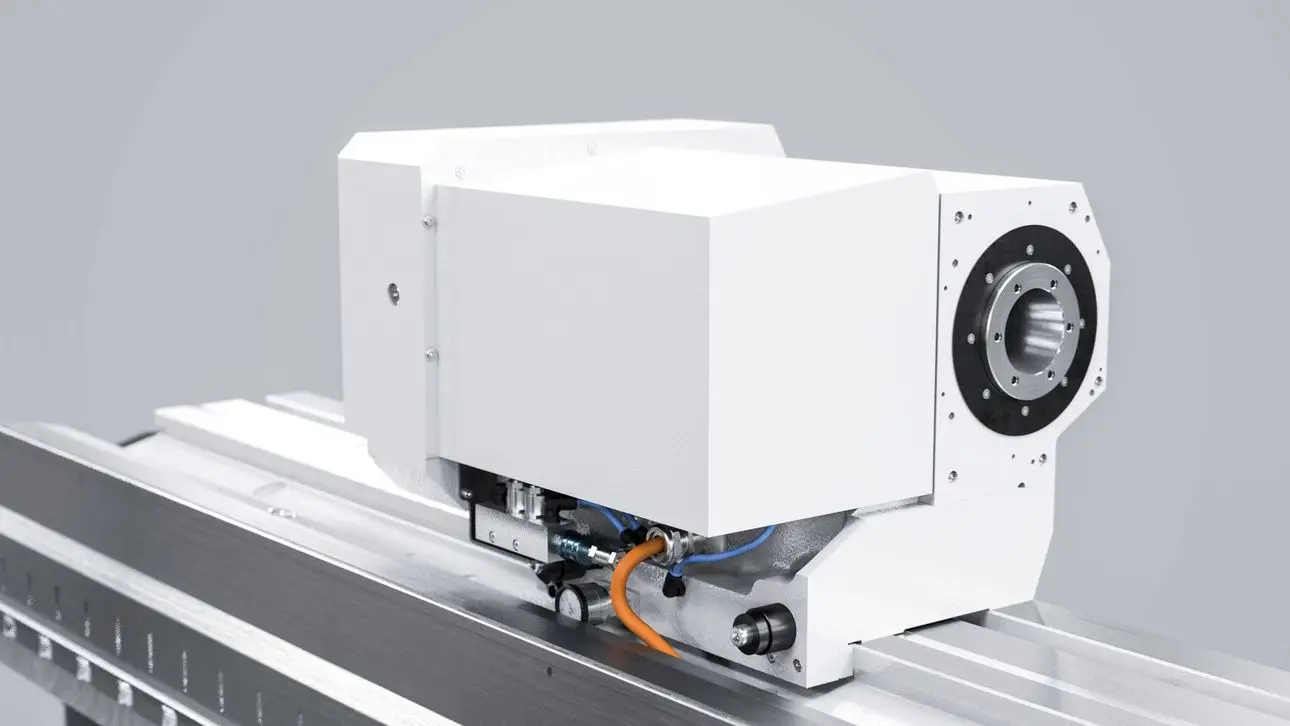

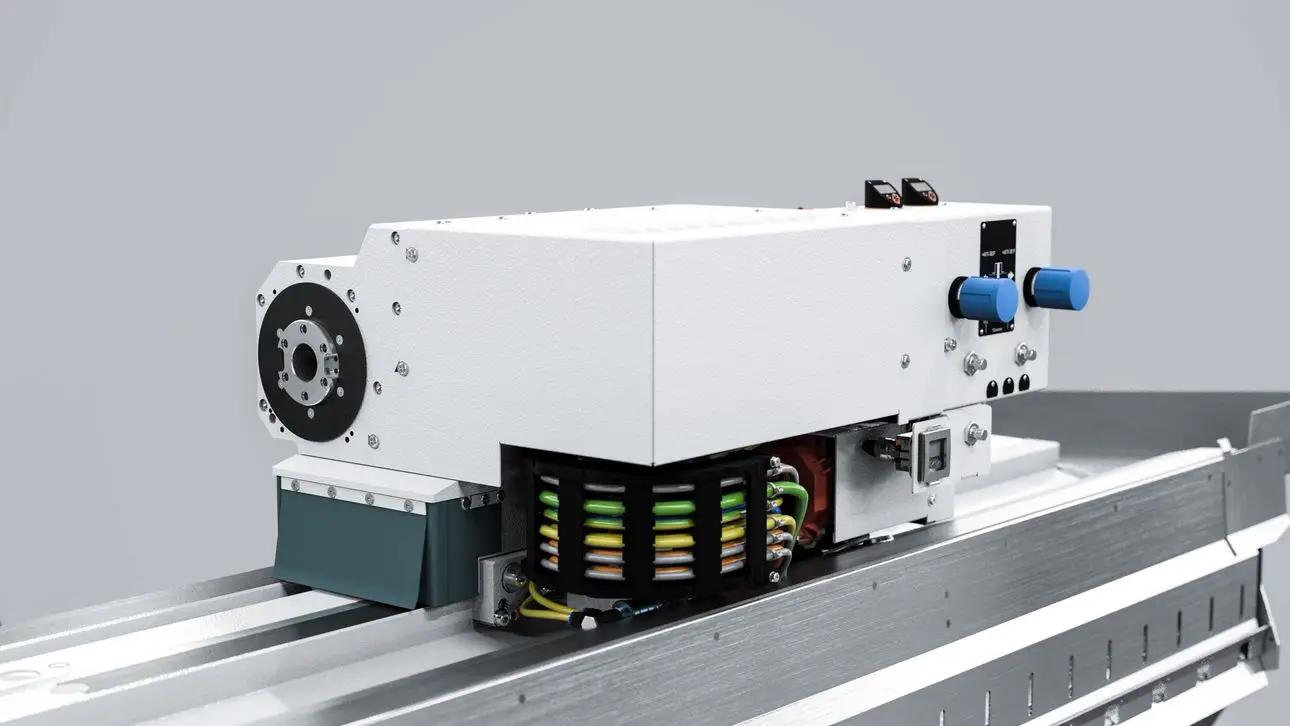

- C axis for workhead

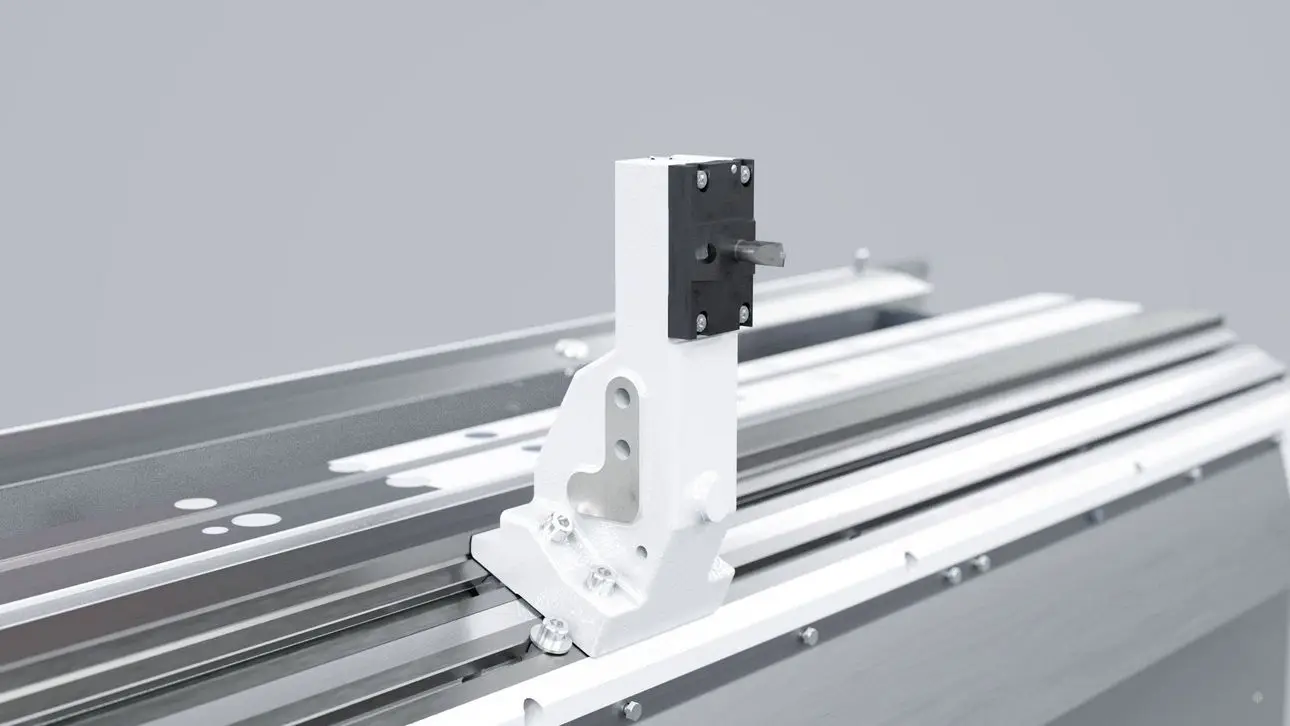

- Worktable with integrated double T-slot for dressing unit
- C.O.R.E. Panel
- Portable control unit (PCU) for setting up close to the grinding process
- Full enclosure with two sliding doors
- Granitan® S103 mineral-cast machine base
Software:
- C.O.R.E. OS operating system
- Very simple programming thanks to StuderPictogramming
- Standardized interfaces for loader and peripheral units
- Flexibly upgradeable with integrated software modules
- StuderWIN programming software (optional) for creating grinding and dressing programs on an external PC

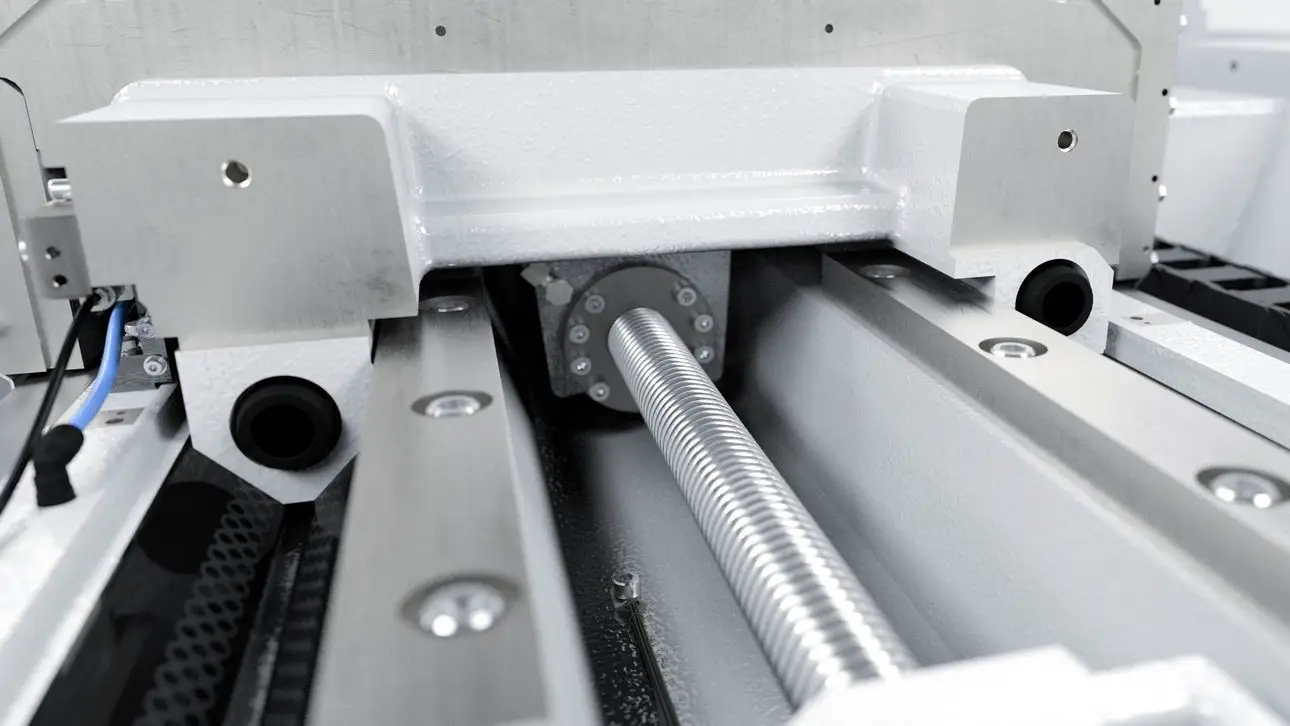

Linear Axes
Max. Travel Speed X
Max. Travel Z
Max. Travel Speed Z
370 mm
15’000 mm/min
800 mm
20’000 mm/min
SPindle Drive
Max. Number Of Revolutions
Max. Grinding Wheel Diameter
Max. Grinding Wheel Width
15 kW
1’500 /min
610 mm
125 mm
Swiveling Axes

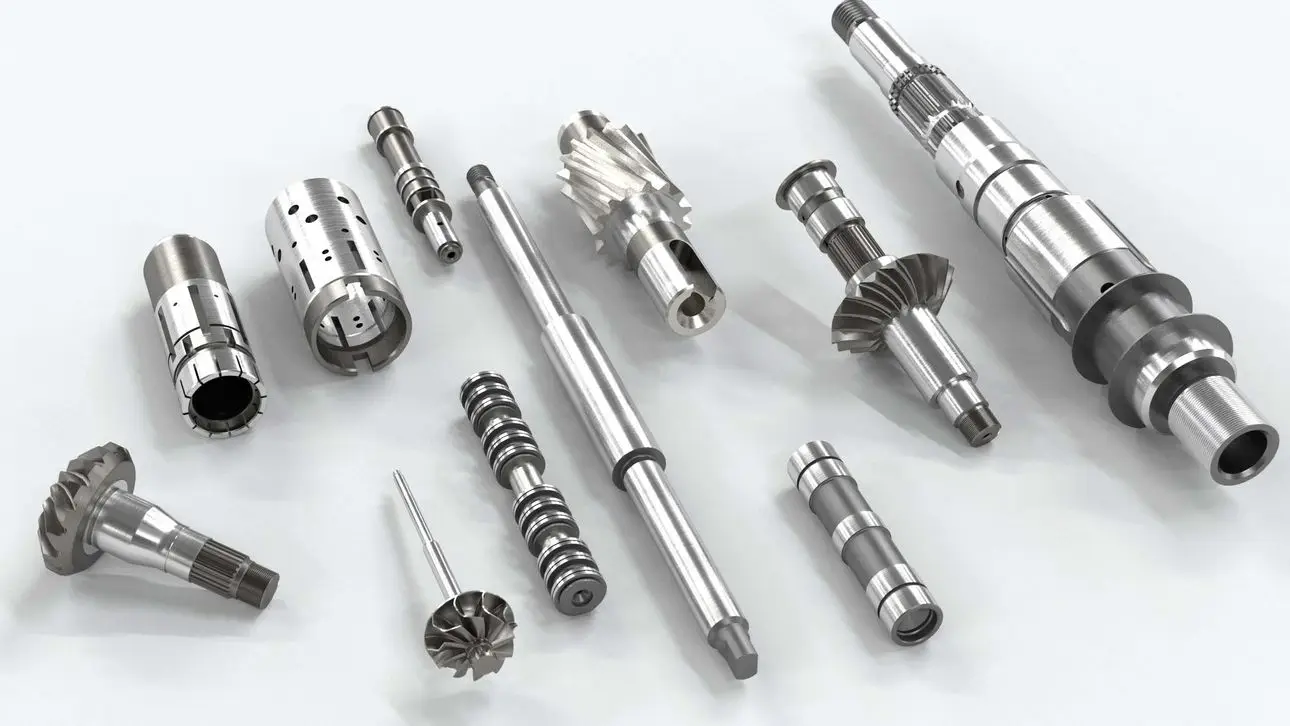

Workpiece Data
Workpiece Diameter
Max. Workpiece Weight
Distance Between Centers
Center Height
800 mm
449 mm
150 kg
650 mm
225 mm
Linear Axes
Max. Travel X: 370mm
Max. Travel Speed X: 15’000 mm/min
Max. Travel Z: 800mm
Max. Travel Speed Z: 20’000 mm/min
SPindle Drive
Max. Spindle Power: 15 KW
Max. Number Of Revolutions: 1’500/min
Max. Grinding Wheel Dm: 610mm
Max. Grinding Wheel Width: 125mm
Swiveling Axes
Workpiece Data
Workpiece Length: 800mm
Workpiece Diameter: 449mm
Max. Workpiece Weight: 150Kg
Distance Between Centers: 650mm
Center Height: 225mm
