S41
The Allrounder for complex grinding jobs.
Basic Data

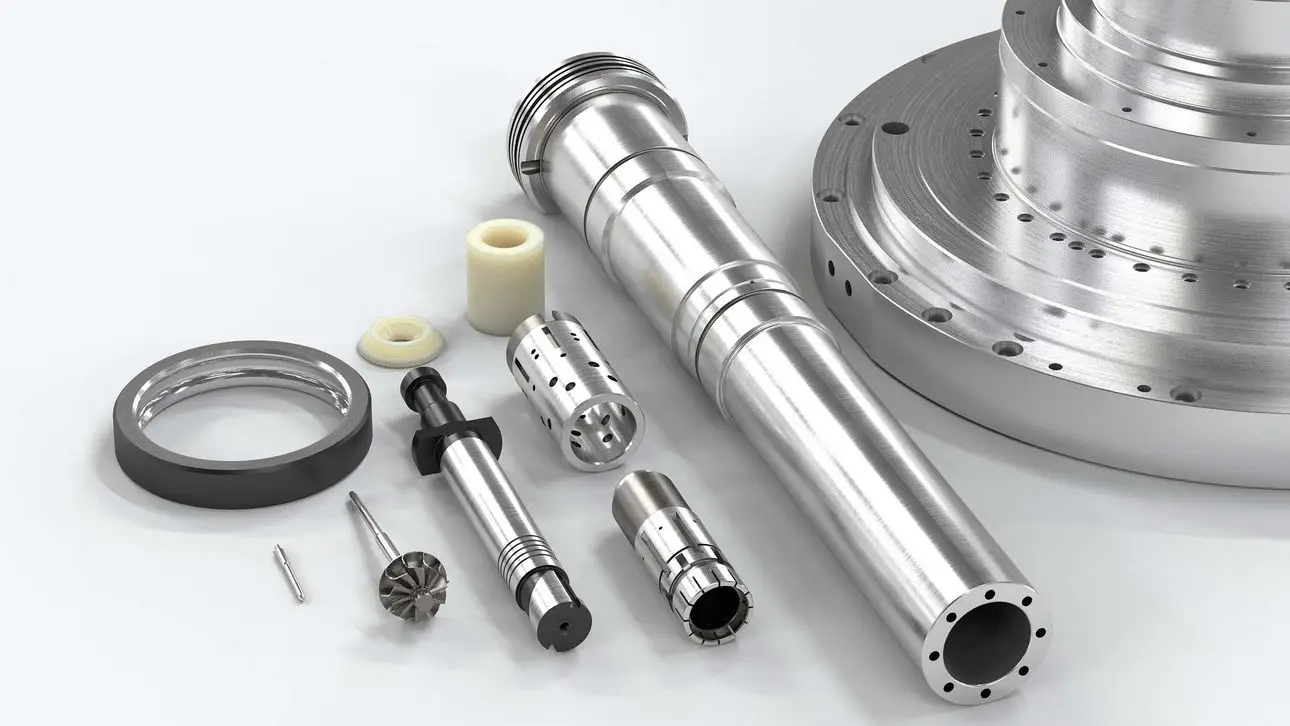

The S41 is a CNC universal cylindrical grinding machine for large workpieces. It has distances between centres of 1000mm (40″) / 1600mm (63″) and centre heights of 225mm (8.8″) / 275mm (10.8″). It can machine workpieces with a maximum weight of 250kg (550lbs).
The S41 is a CNC universal cylindrical grinding machine of the latest generation. It boasts many technical features, such as the revolutionary StuderGuide® guideway system, high-precision axis drives with linear motors, extremely fast direct drive of the B-axis, an even larger selection of wheelhead variants etc.
Hardware / Software
Hardware:

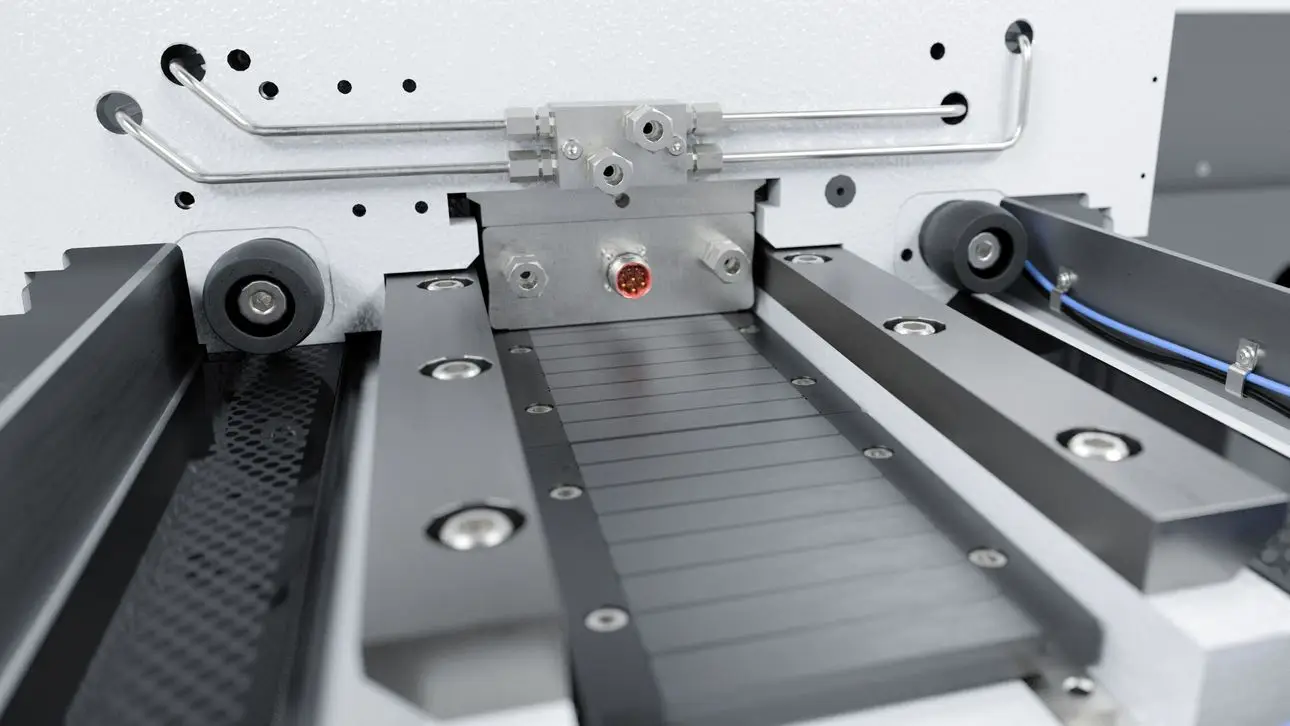

- StuderGuide® guide system with linear drive

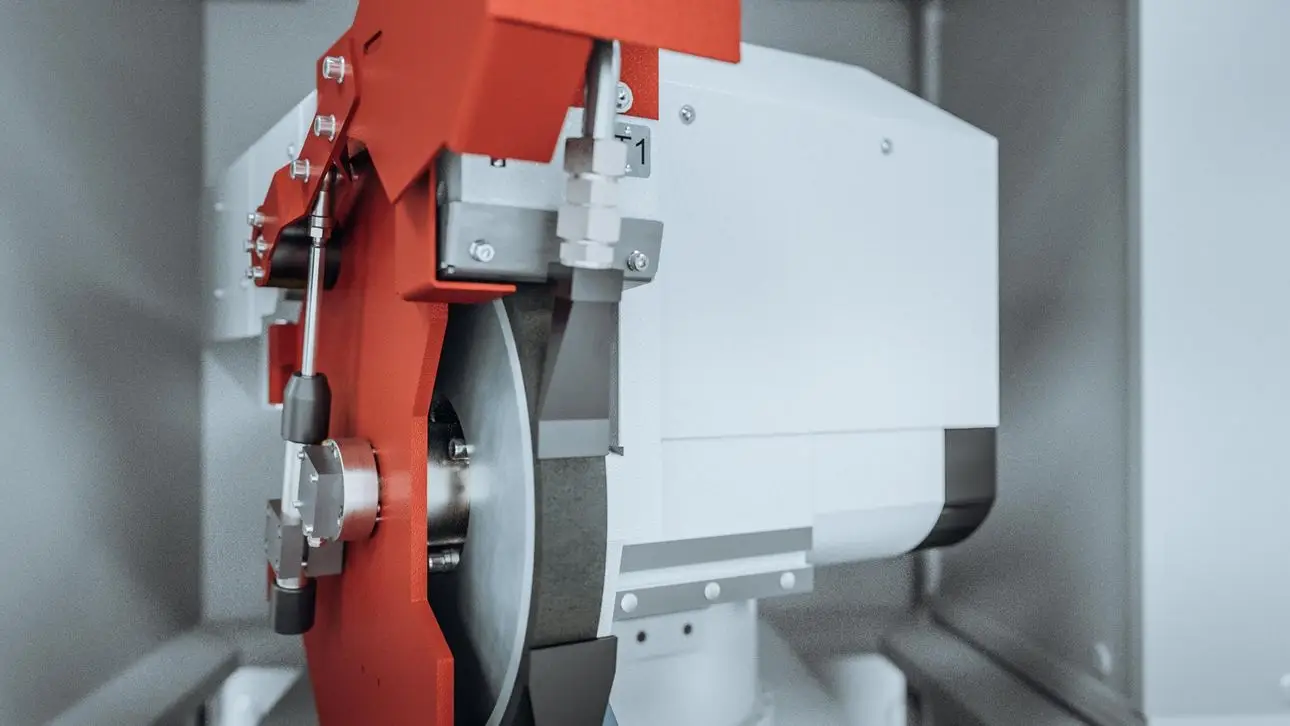

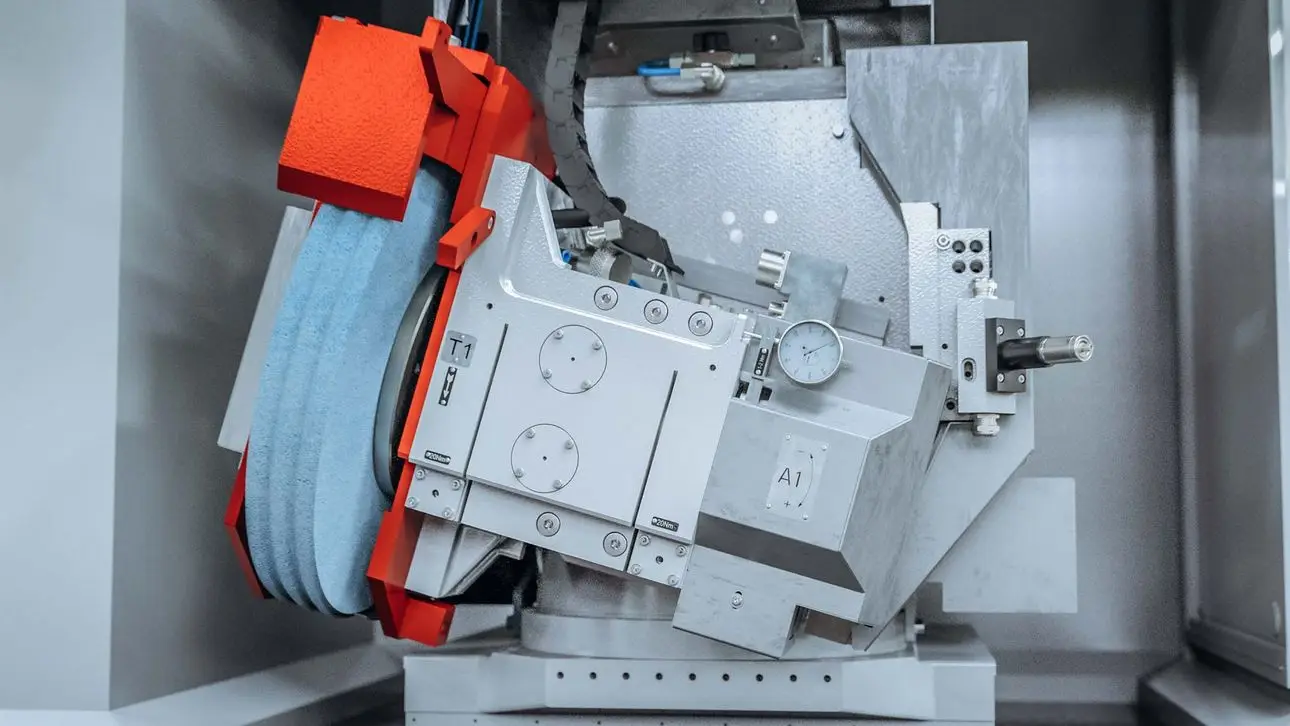

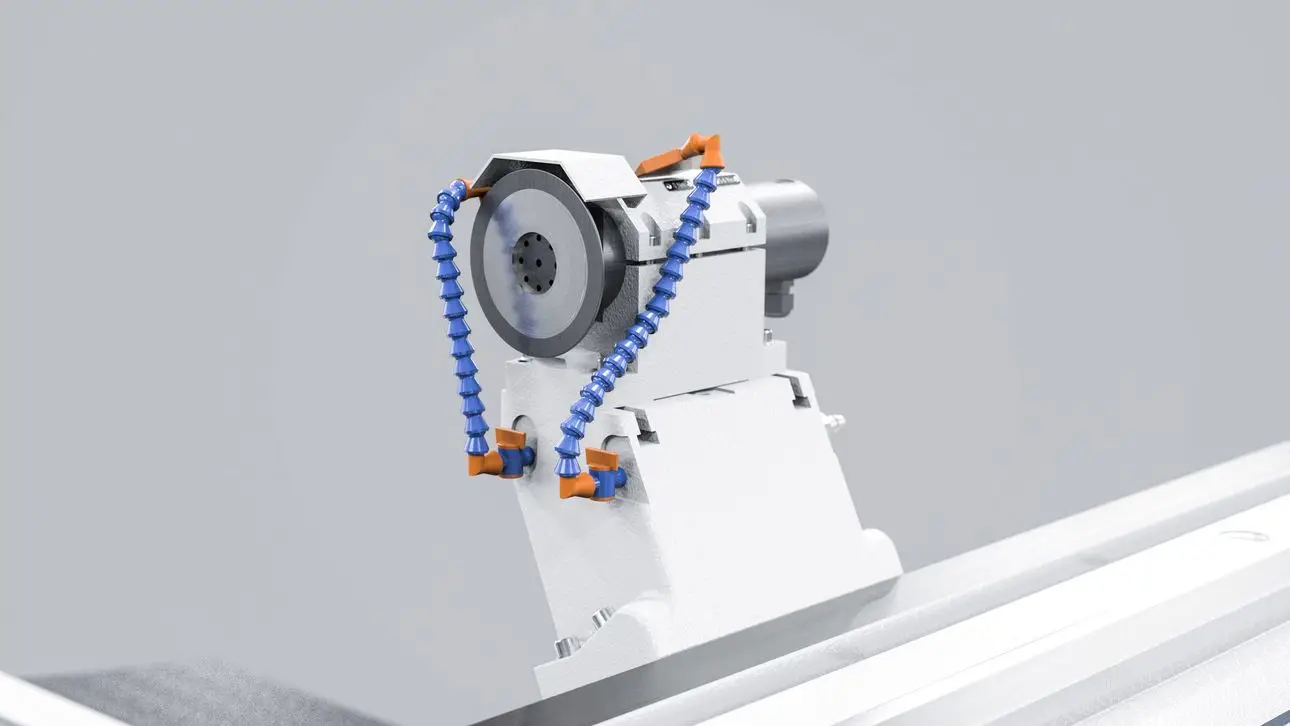

- Turret wheelhead with direct drive and 0.00005°resolution

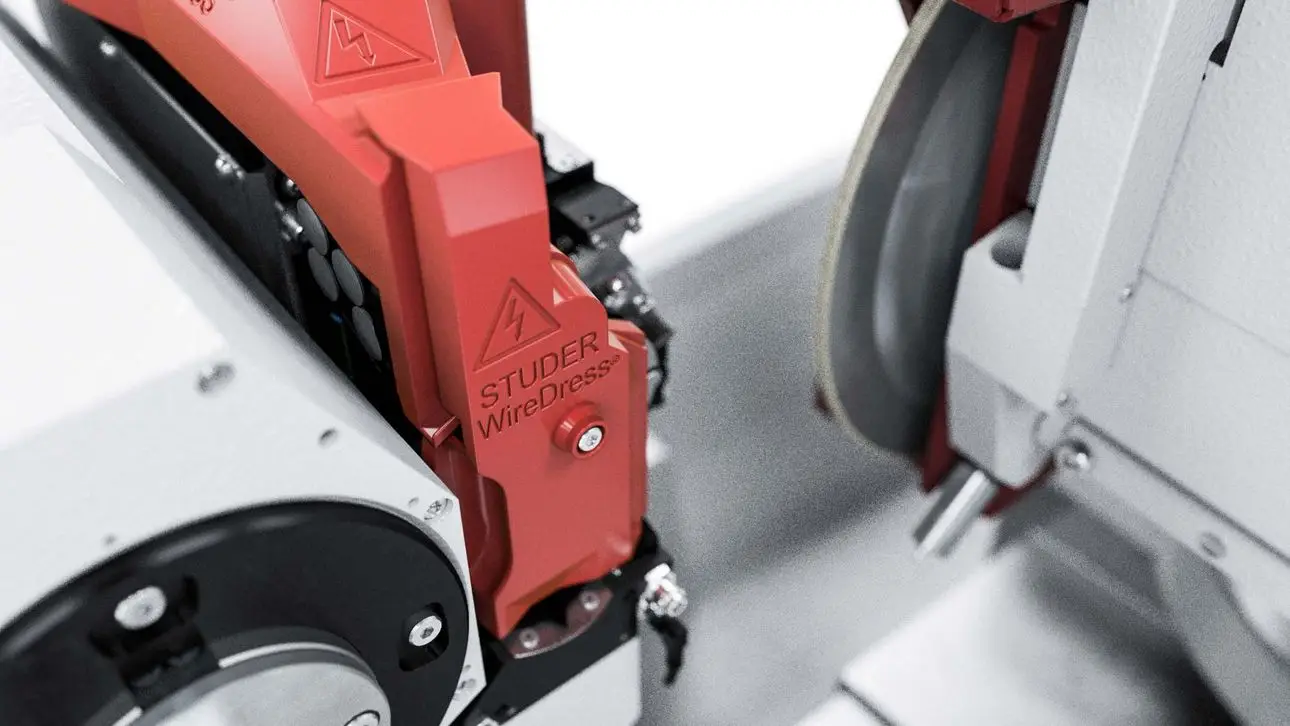

- Complete machining with up to four grinding wheels

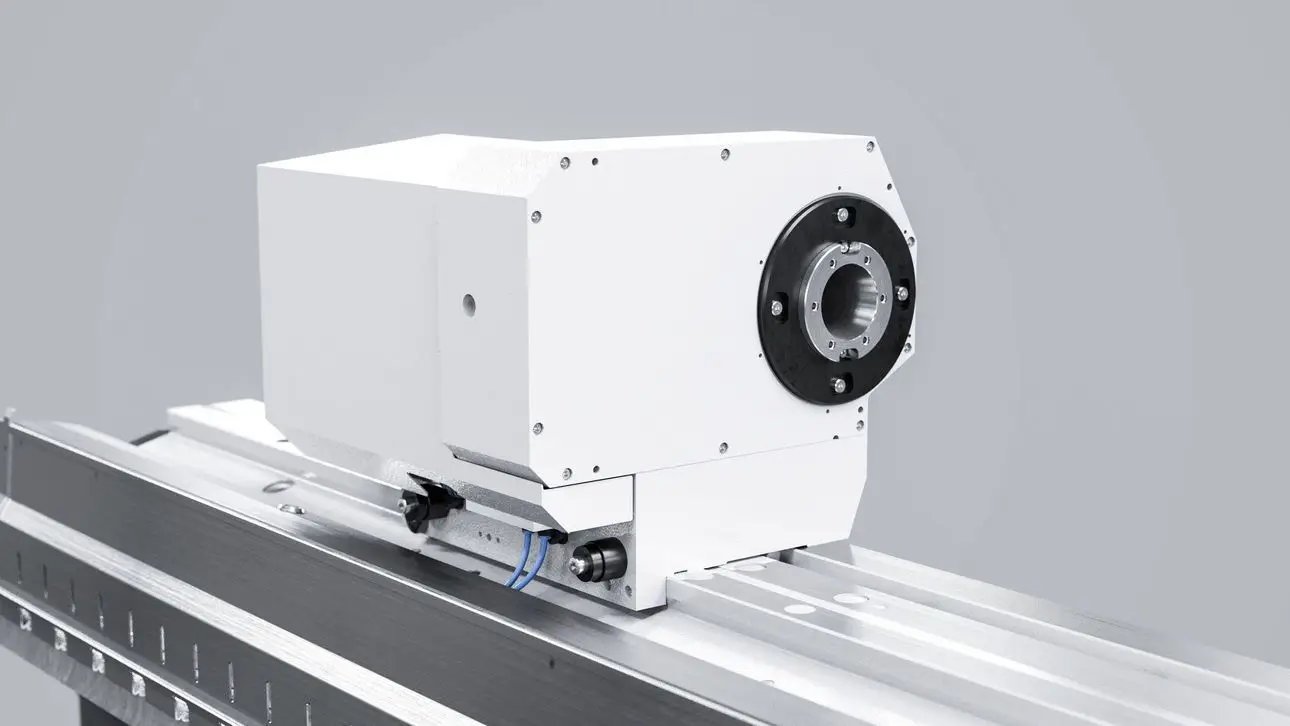

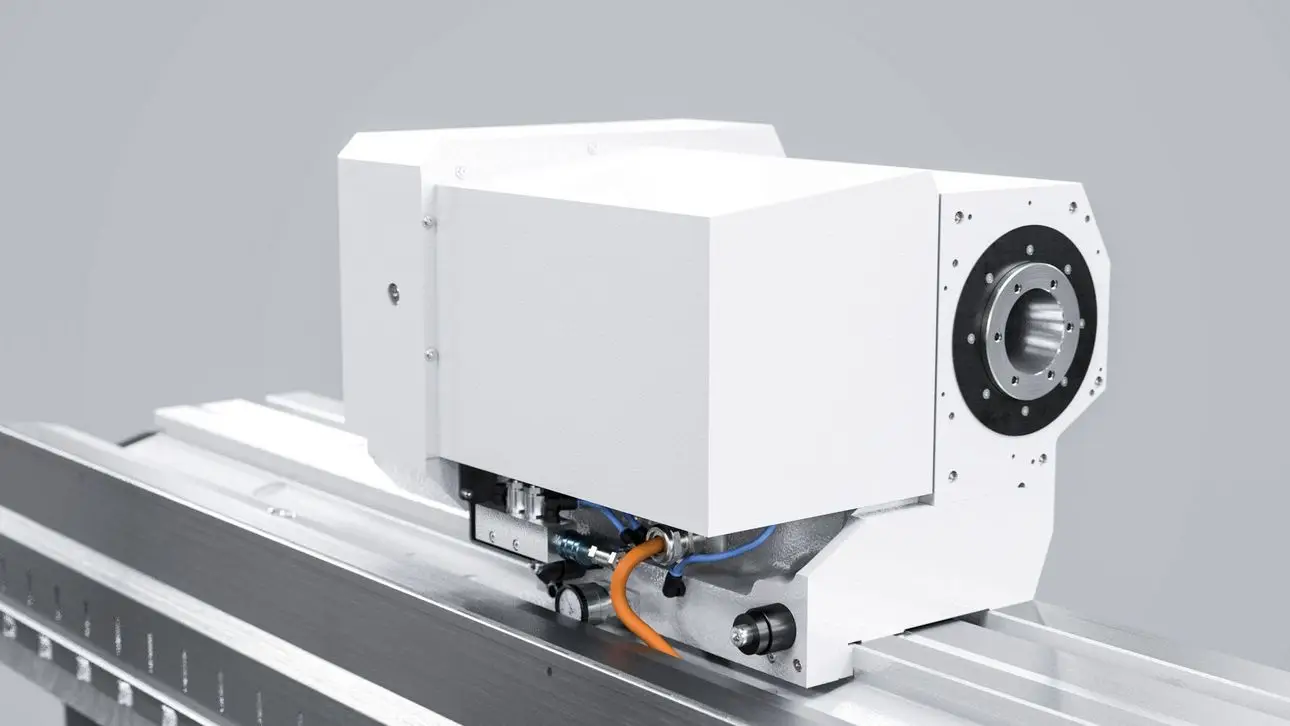

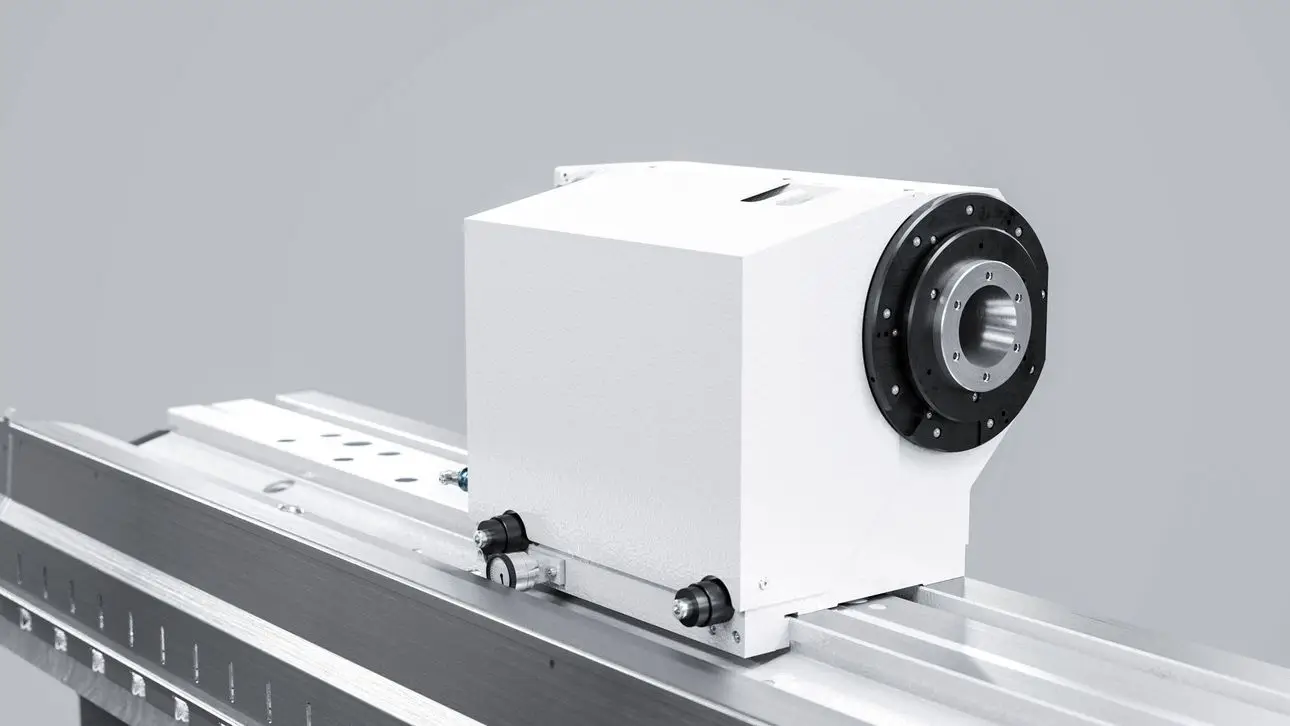

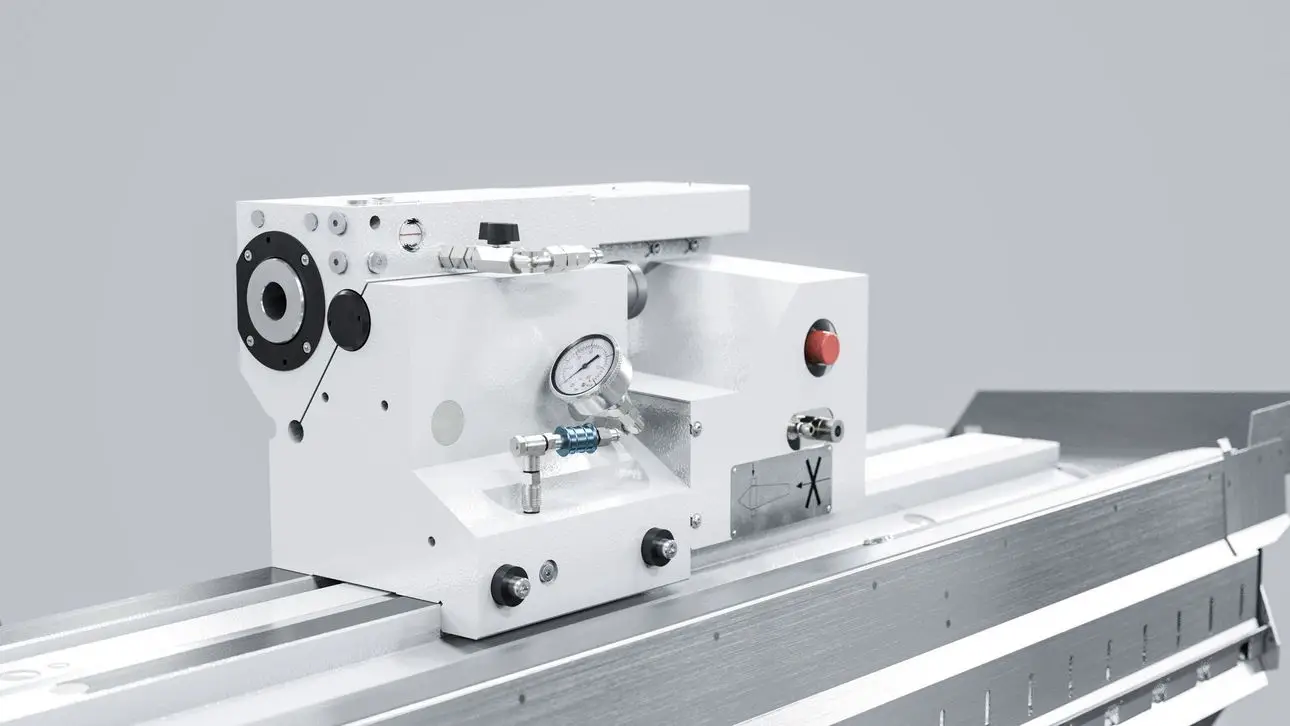

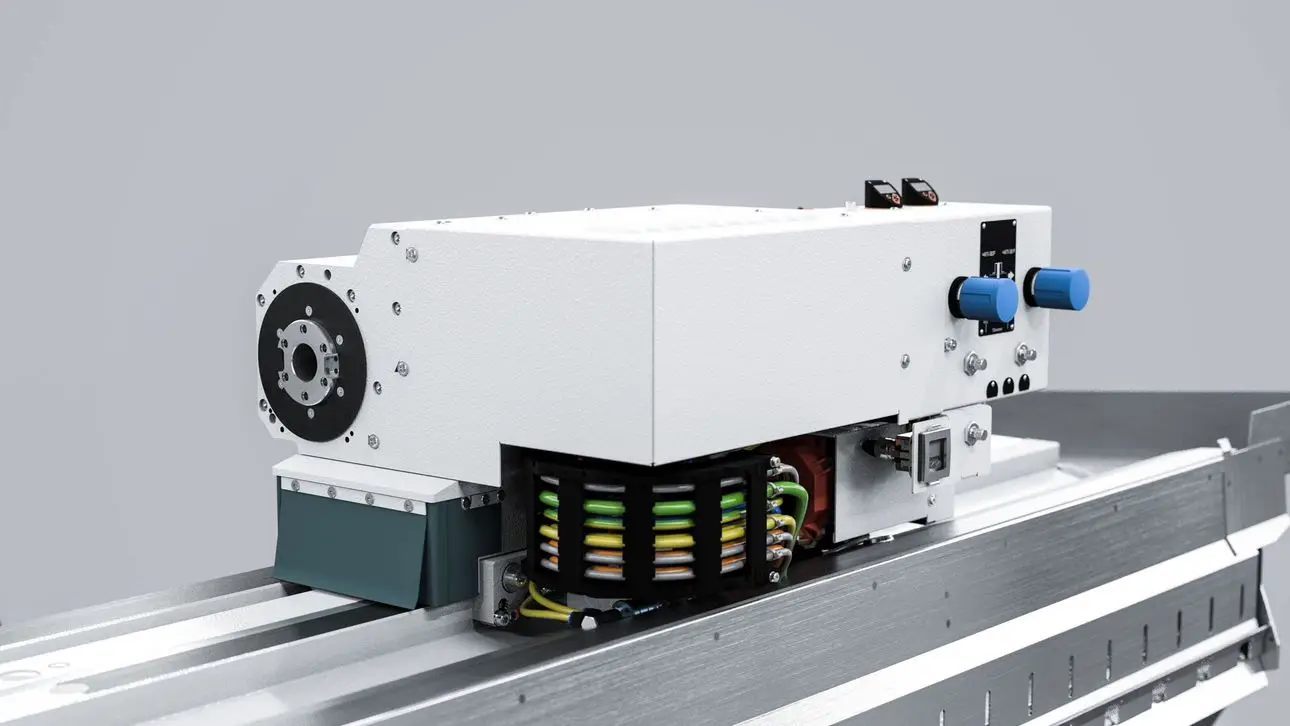

- C-axis for the workhead for form and thread grinding

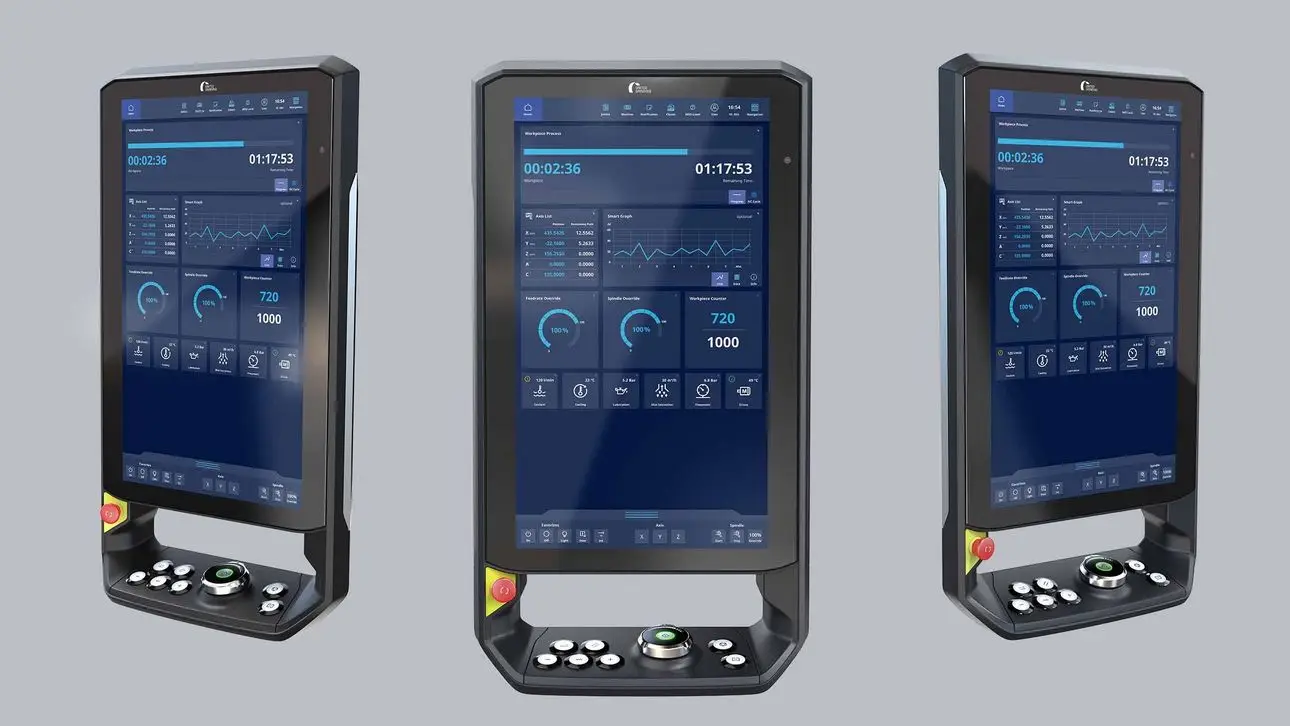

- C.O.R.E. Panel

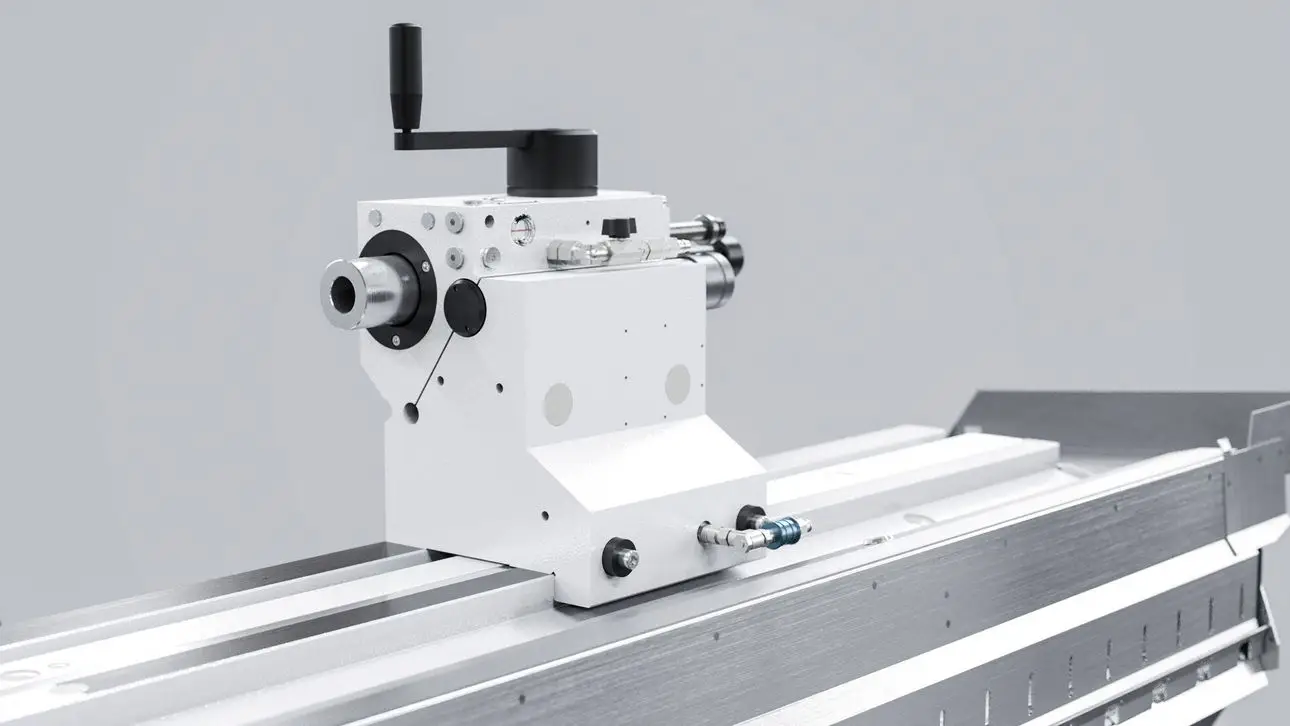

- Manual control unit (PCU) for set-up close to the grinding process
- Full enclosure with two sliding doors
- Granitan® S103 mineral casting machine base
Software:
- C.O.R.E. OS Operating system
- Very simple operation and programming thanks to StuderWIN
- StuderTechnology with integrated expertise
- StuderGRIND programming software for the creation of grinding anddressing programs directly on the machine control, or on an external PC
- Reduced setup and resetting times with STUDER QuickSet

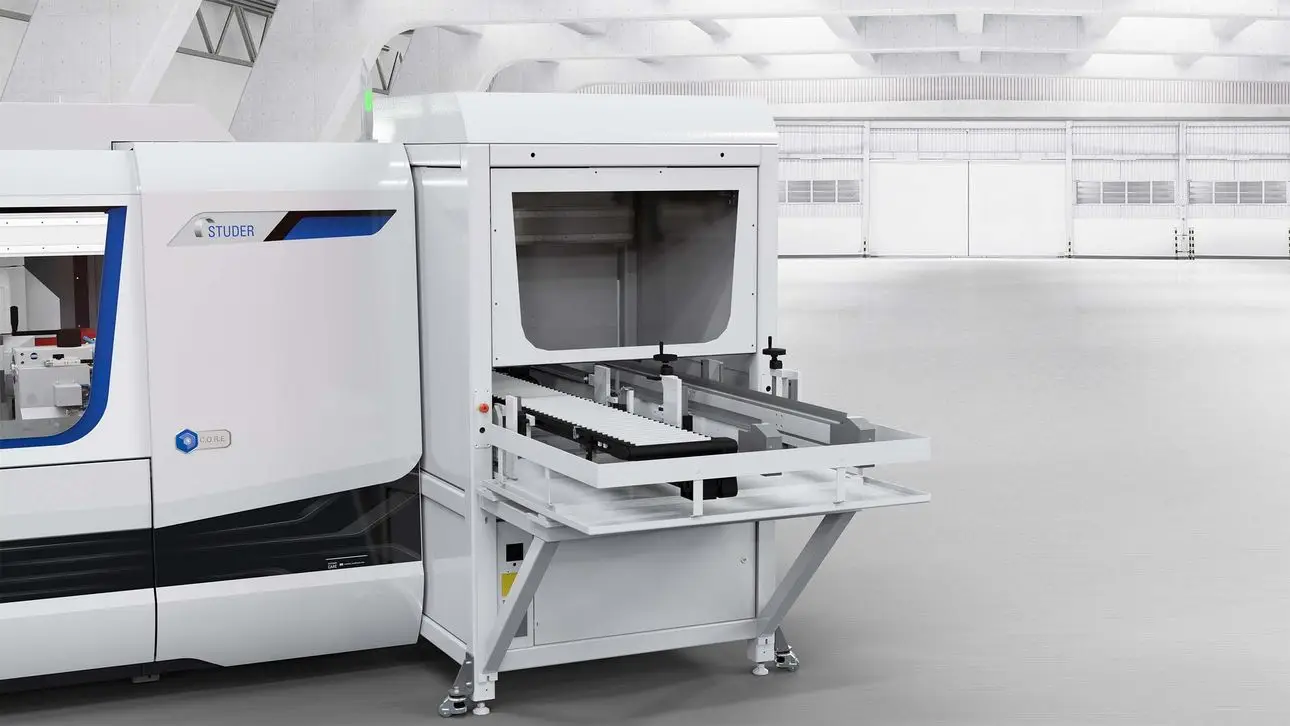

- Standardized interfaces for loader and peripheral devices
- External programming station with all machine software options in StuderWINprogramming
Linear Axes
Max. Travel X
Max. Travel Speed X
Max. Travel Y
Max. Travel Z
Max. Travel Speed Z
350 mm
20’000 mm/min
100/mm
1’150 mm
20’000 mm/min
SPindle Drive
Max. Number Of Revolutions
Max. Grinding Wheel Diameter
Max. Grinding Wheel Width
15 kW
4’500 /min
508 mm
100 mm
Swiveling Axes
Swiveling Range A
30 °
Swiveling Range B
270 °
Workpiece Data
Workpiece Diameter
Max. Workpiece Weight
Distance Between Centers
Center Height
1’000 mm
549 mm
250 kg
1’000 mm
275 mm
Linear Axes
Max. Travel X: 350mm
Max. Travel Speed X: 20’000 mm/min
Max. Travel Y: 100mm
Max. Travel Z: 1’150mm
Max. Travel Speed Z: 20’000 mm/min
SPindle Drive
Max. Spindle Power: 15 KW
Max. Number Of Revolutions: 4’5’00/min
Max. Grinding Wheel Dm: 508mm
Max. Grinding Wheel Width: 100mm
Swiveling Axes
Swiveling Range A
30 °
Swiveling Range B
270 °
Workpiece Data
Workpiece Length: 1’000mm
Workpiece Diameter: 549mm
Max. Workpiece Weight: 250Kg
Distance Between Centers: 1’000mm
Center Height: 275mm
Linear Axes
Max. Travel X
Max. Travel Speed X
Max. Travel Y
Max. Travel Z
Max. Travel Speed Z
370 mm
15’000 mm/min
500 mm
20’000 mm/min
SPindle Drive
Max. Number Of Revolutions
Max. Grinding Wheel Diameter
Max. Grinding Wheel Width
11.5 kW
3’200 /min
508 mm
80 mm
Swiveling Axes
Swiveling Range B
255 °
Workpiece Data
Workpiece Diameter
Max. Workpiece Weight
Distance Between Centers
Center Height
400 mm
349 mm
150 kg
400 mm
175 mm
Linear Axes
Max. Travel X: 370mm
Max. Travel Speed X: 15’000 mm/min
Max. Travel Z: 500mm
Max. Travel Speed Z: 20’000 mm/min
SPindle Drive
Max. Spindle Power: 11.5 KW
Max. Number Of Revolutions: 3’2’00/min
Max. Grinding Wheel Dm: 508mm
Max. Grinding Wheel Width: 80mm
Swiveling Axes
Swiveling Range B
255 °
Workpiece Data
Workpiece Length: 400mm
Workpiece Diameter: 349mm
Max. Workpiece Weight: 150Kg
Distance Between Centers: 400mm
Center Height: 175mm
