MC7

Blohm-machines

jung machines

Basic Data

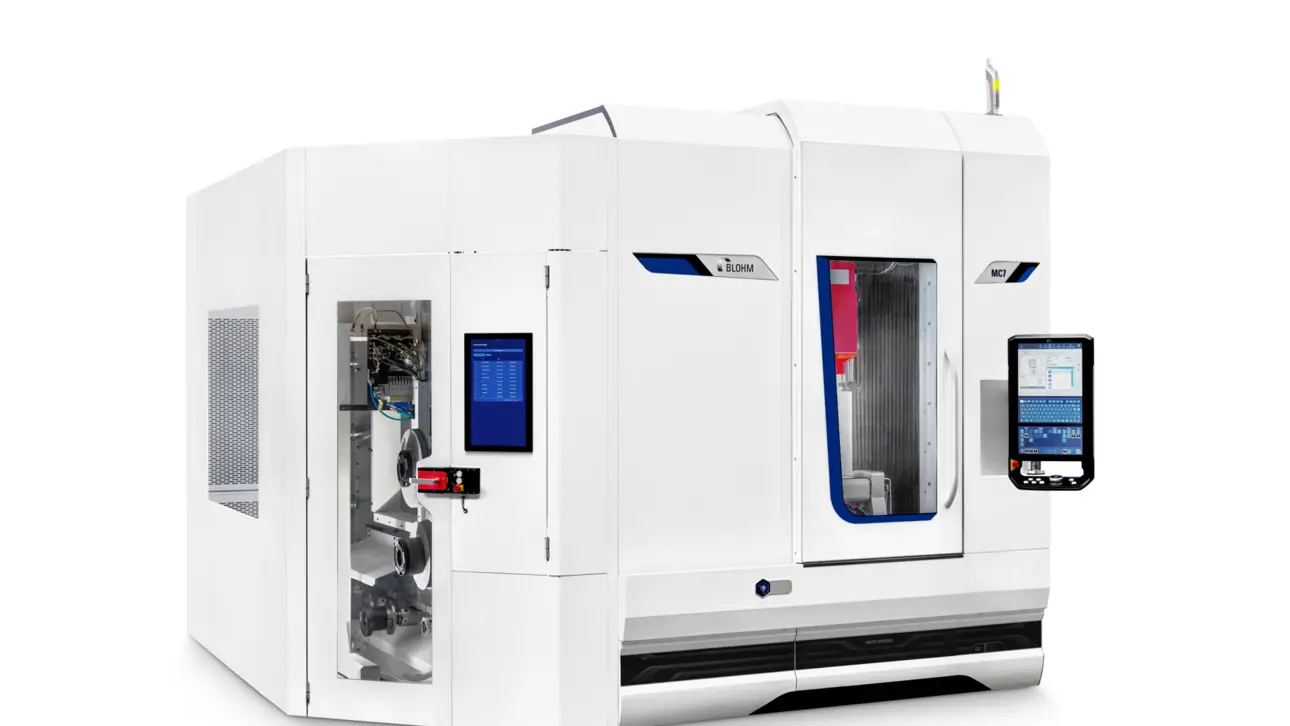

BLOHM has specially designed the MC7 for those markets where multi-face machining of complex workpieces in just a single clamping operation is demanded. The high-performance spindle, which allows speeds of up to 12,000 rpm, and the large working area make the grinding center ideal for applications such as turbine vanes and blades are for use in the aviation and energy industry.

The P360 coolant nozzle technology combined with various axis combinations allows to create new opportunities in grinding of complex geometries. The optional Tool changer ensures less operator intervention, and the continuous dressing process enables high material removal rates with high profile accuracy over long cuts. Several options for coolant supply will guarantee highest results in quality and productivity.

The machine can be loaded from the front, the top and from the side to run all kinds of automated processes.

Hardware / Software

Hardware:

  • Modular machine concept
  • P360 coolant nozzle

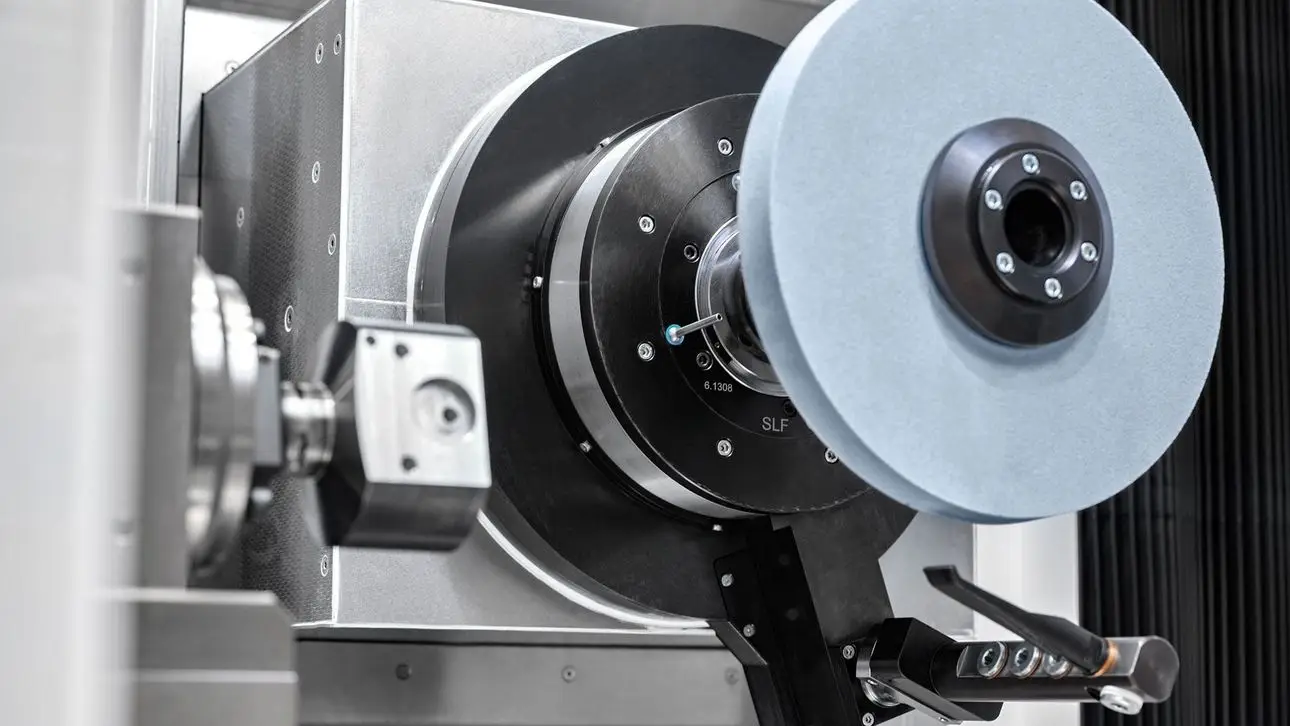

  • Grinding wheel size up to 500mm
  • Tool changer with 72 positions for tools and grinding wheel diameter up to 400mm
  • Spindle power: 27,5 / 62 kW
  • Spindle speeds up to 12‘000 min-1
  • 5-axis system
  • Grinding, milling and drilling capability
  • Table and overhead dressing solutions

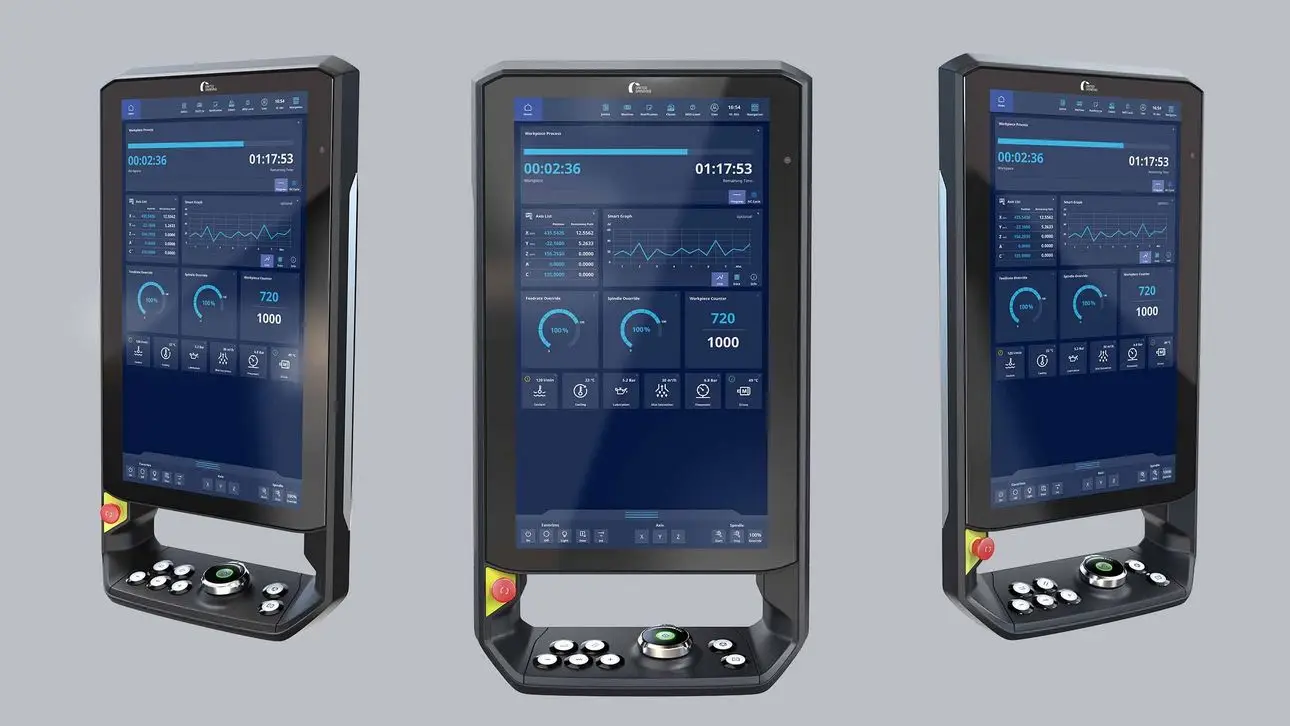

  • C.O.R.E. panel

Software:

  • Pre-programmed grinding and dressing cycles
  • Intuitive operation
  • Focus on work and production safety
  • CAD/CAM connection
  • C.O.R.E. OS operating system

Download MC7 Brochure

DOWNLOAD

Technical Data

Linear Axes

Max. Travel X
Max. Travel Speed X
Max. Travel Y
Max. Travel Speed Y
Max. Travel Z
Max. Travel Speed Z
700 mm
50000 mm/min
650 mm
30000 mm/min
570 mm
50000 mm/min

SPindle Drive

Max. Spindle Power
Max. Number Of Revolutions
Max. Grinding Wheel Diameter
Max. Grinding Wheel Width
27,5 kW
8000 /min
500 mm
200 mm

Workpiece Data

Table Sizes

700×600 mm

Linear Axes

Max. Travel X                          700 mm
Max. Travel Speed X              50000 mm/min
Max. Travel Y                           650 mm
Max. Travel Speed Y               30000 mm/min
Max. Travel Z                           570 mm
Max. Travel Speed Z               50000 mm/min

SPindle Drive

Max. Travel X                          700 mm
Max. Travel Speed X              50000 mm/min
Max. Travel Y                          650 mm
Max. Travel Speed Y              30000 mm/min
Max. Travel Z                          570 mm
Max. Travel Speed Z              50000 mm/min

Workpiece Data

Table Sizes                              700×600 mm
