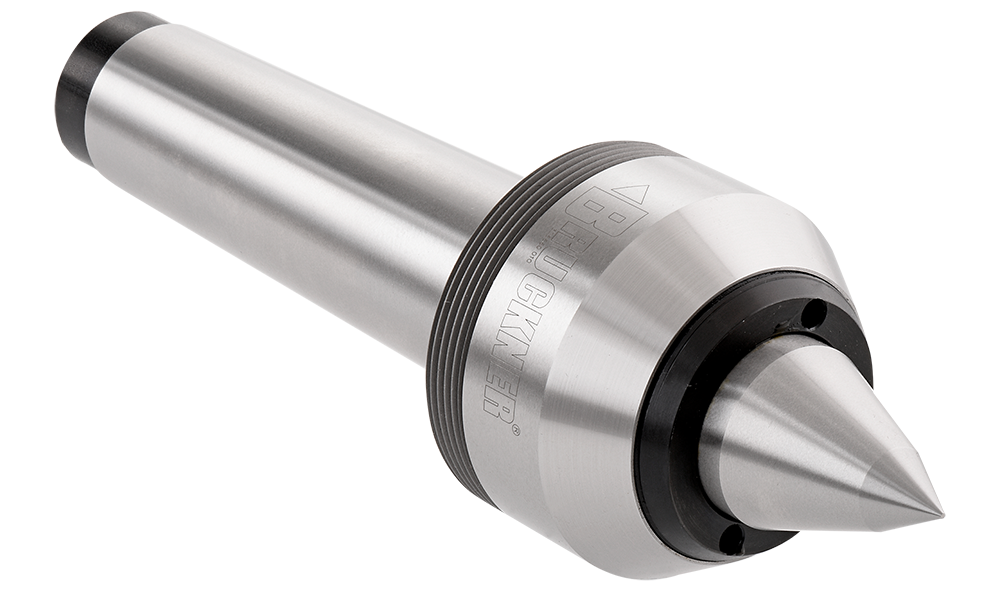

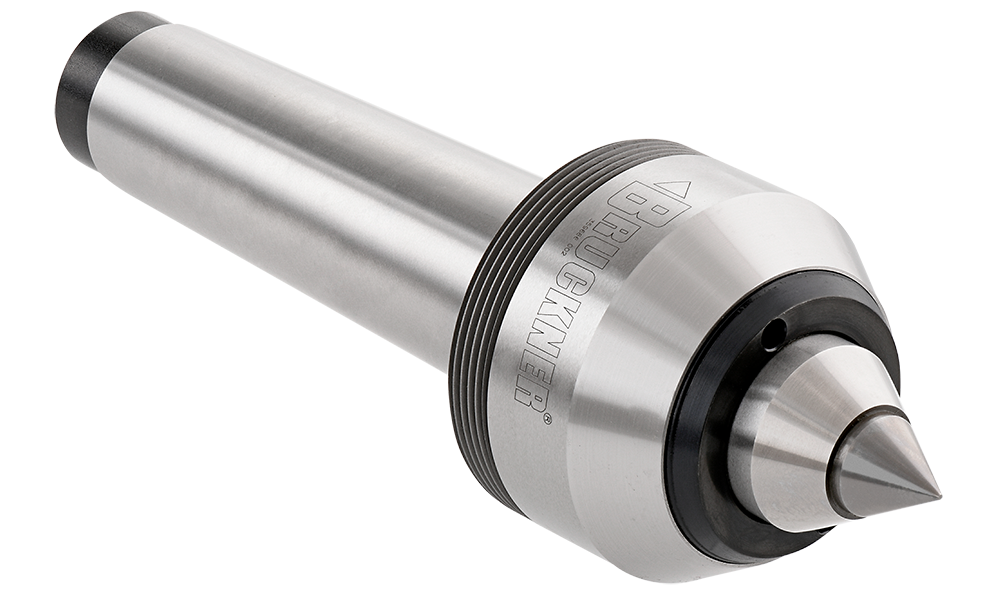

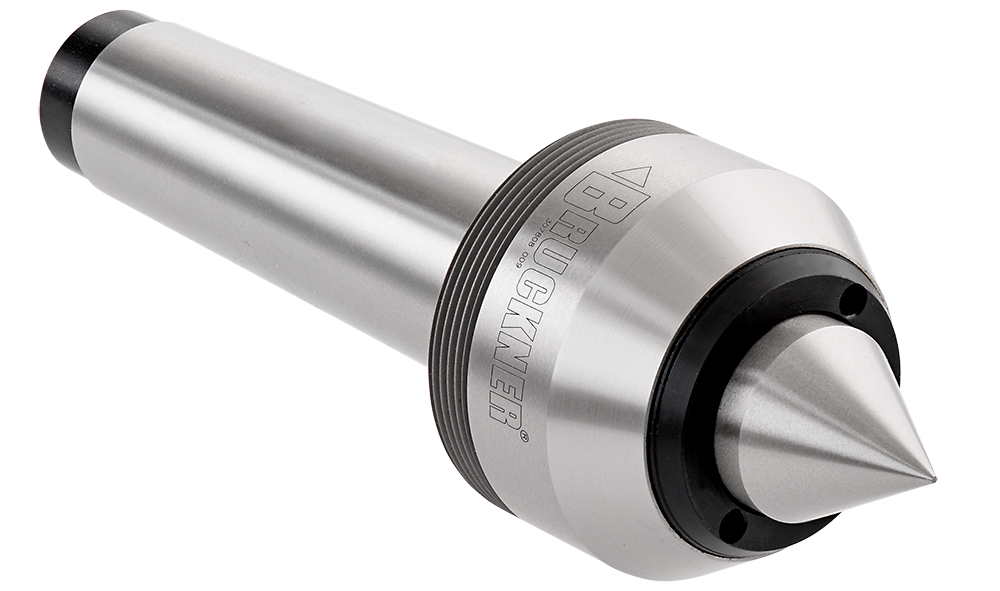

LK Series – with superior stiffness
This high performance live centre was developed for use with advanced turning and grinding technology. With a short design, the bearings and pitch of the bearings are matched so that this high performance centre withstands vibrations in all machining situations.
This high performance centre proves its strength for turning, CNC turning, cylindrical grinding and hard turning operations. Result: Excellent surface quality and the process-reliable compliance with tolerances.

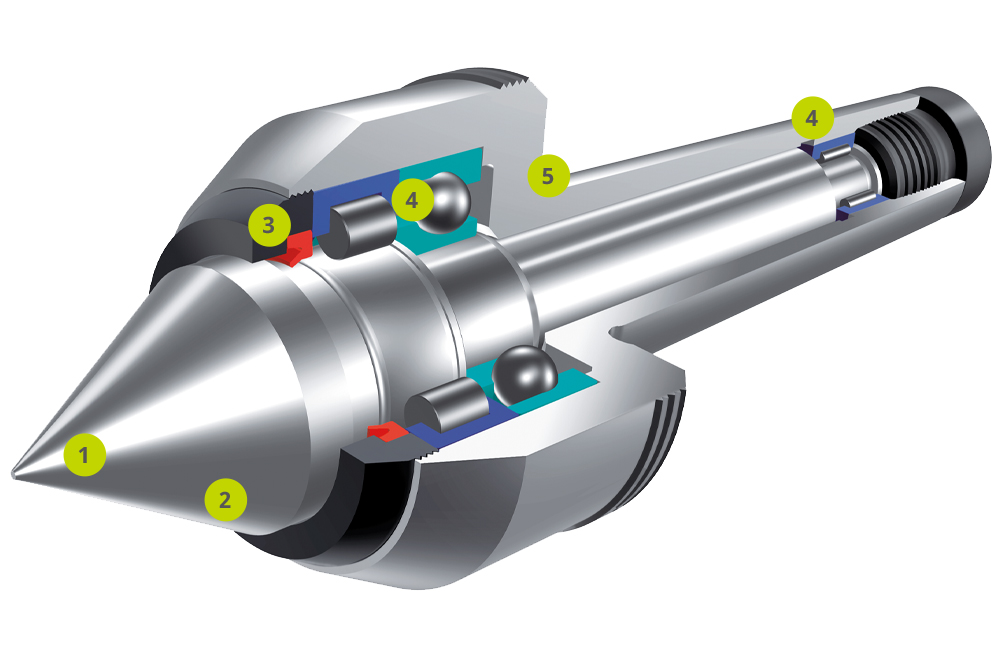

1 Runout with test report
Precision design:
max. 0.005 mm
High-precision design:
max. 0.003 mm
2 Centrepoint through-hardened
made of alloy tool steel
3 Sealing through shaft seal ring
protects the bearings from dirt and coolant.
4 Precision bearings
with precision ground bearing seats. Maintenance-free due to permanent lubrication.
5 Housing
of high tensile alloy steel. Head and shank hardened.
