S23
Compact in design, versatile in use, and intuitive to operate
Basic Data
Hardware / Software

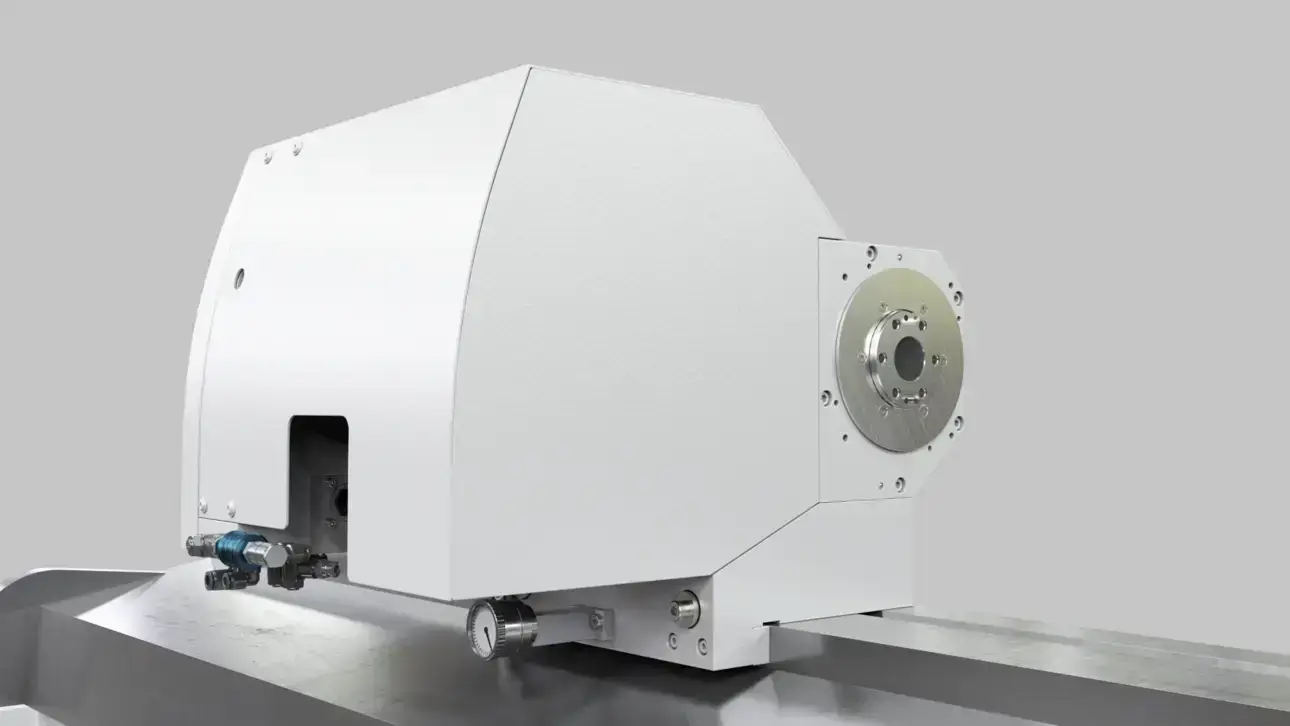

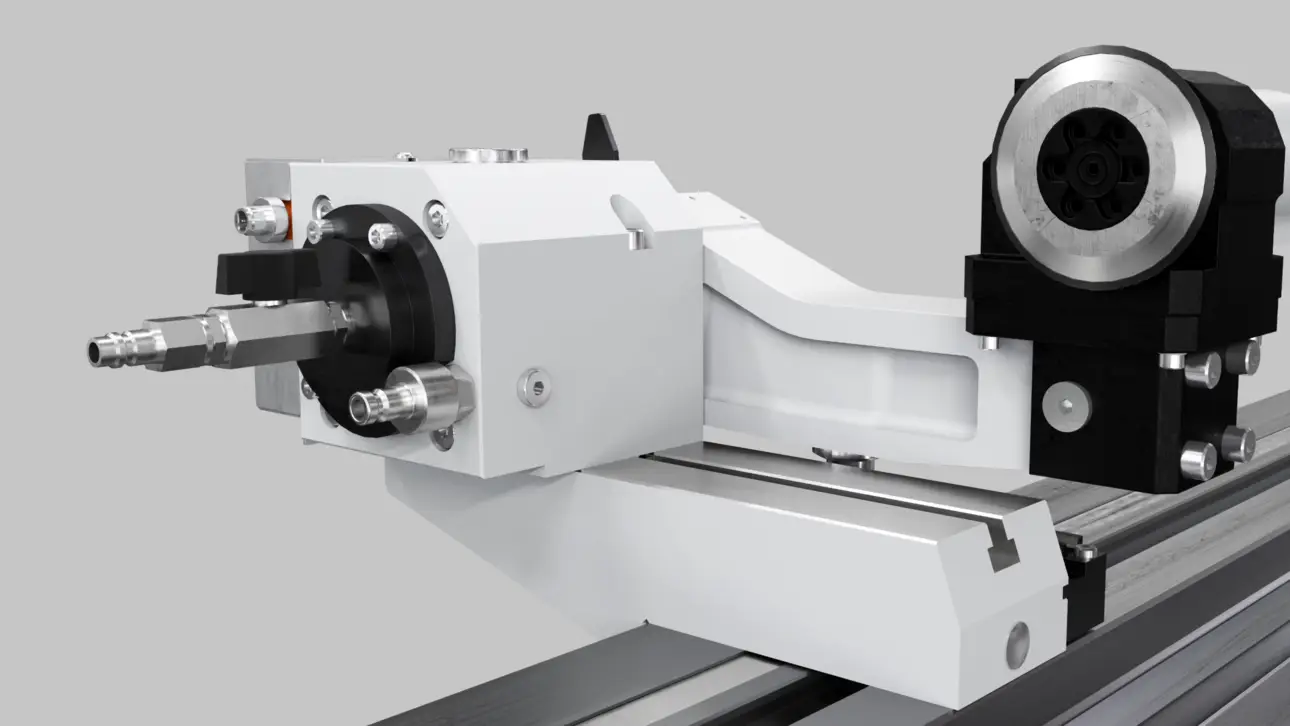

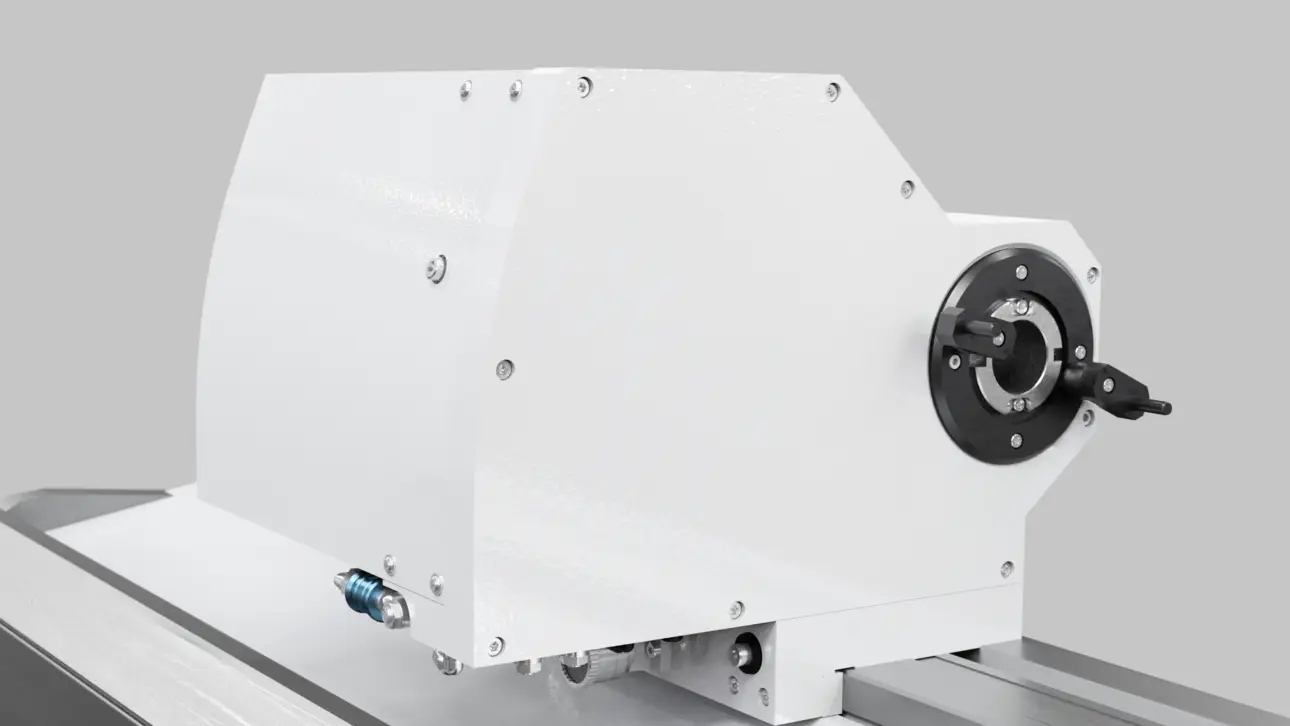

Hardware:
- Selectable wheelhead:
- Fixed wheelhead, adjustable 0°/15°/30°
- Universal wheelhead, Hirth 2.5°, manual
- Universal wheelhead, Hirth 1°, automatic
- Up to three grinding tools selectable
- Frequency-controlled belt-driven or motor spindles available
- External and internal grinding possible in one setup
- C-axis for out-of-round and thread grinding

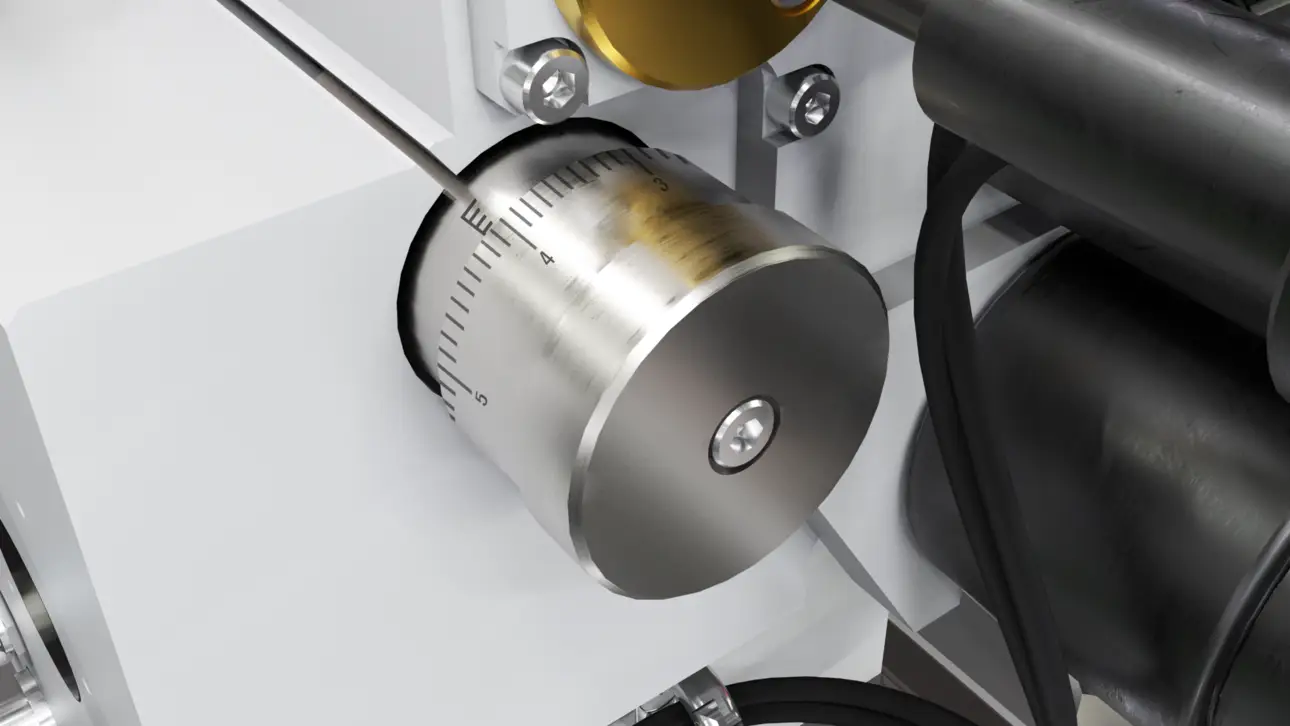

- Fixed table or swiveling table (up to 8.5°)
- Portable control unit for setup close to the grinding process
- Automatic operating door
- Granitan® S103 mineral-cast machine base
Software:
- C.O.R.E. OS operating system
- Very simple programming thanks to StuderPictogramming
- Reduced set-up and resetting times with STUDER QuickSet
- Standardized interfaces for loader and peripheral devices
- Flexibly upgradeable with integrated software modules
- StuderWIN programming software (optional) for creating grinding and dressing
programs on an external PC
Linear Axes
Max. Travel X
Max. Travel Speed X
Max. Travel Z
Max. Travel Speed Z
285 mm
10’000 mm/min
800 mm
20’000 mm/min
SPindle Drive
Max. Number Of Revolutions
Max. Grinding Wheel Diameter
Max. Grinding Wheel Width
12.5 kW
3’200 /min
500 mm
110 mm
Swiveling Axes
Swiveling Range B
– 30 ° bis 190°
Swiveling Range C

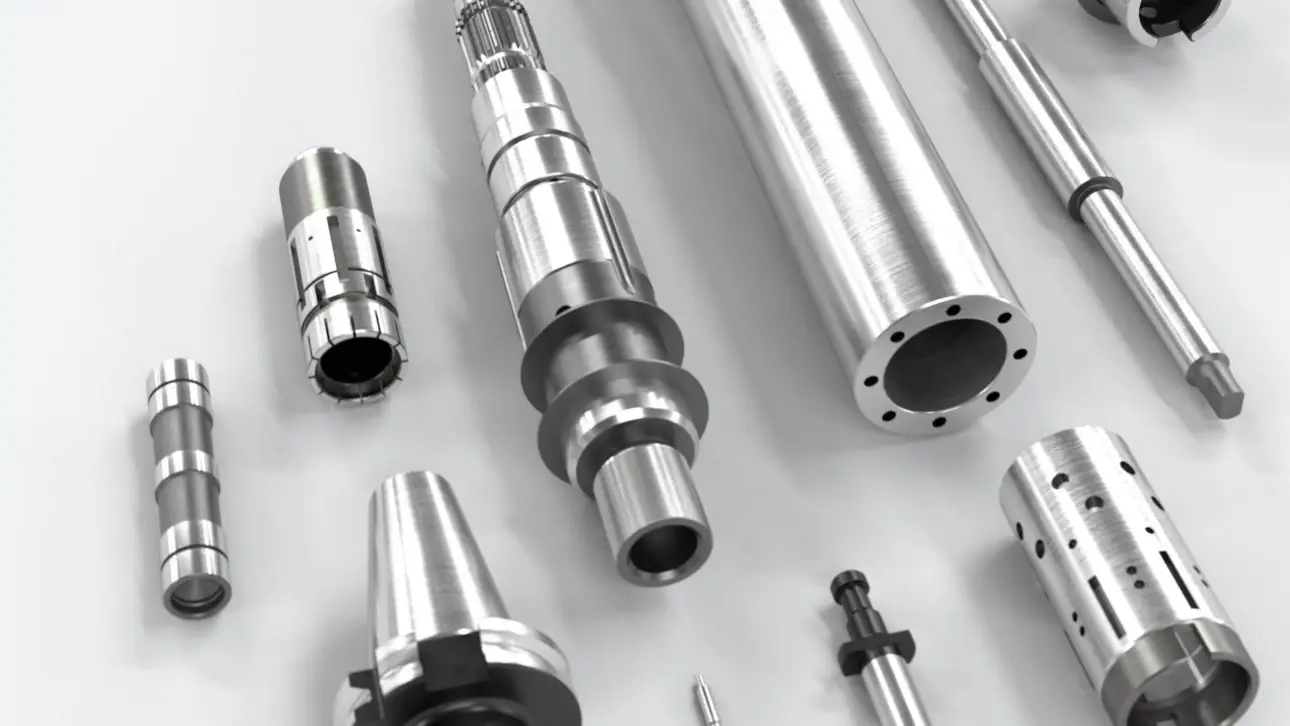

Workpiece Data
Workpiece Length
Max. Workpiece Weight
Distance Between Centers
Center Height
650 mm
120 kg
650 mm
175 mm
Linear Axes
Max. Travel X: 285mm
Max. Travel Speed X: 10’000 mm/min
Max. Travel Z: 800mm
Max. Travel Speed Z: 20’000 mm/min
SPindle Drive
Max. Spindle Power: 12.5 KW
Max. Number Of Revolutions: 3’200/min
Max. Grinding Wheel Dm: 500mm
Max. Grinding Wheel Width: 110mm
Swiveling Axes
Swiveling Range B
– 30 ° bis 190°
Workpiece Data
Workpiece Length: 650mm
Max. Workpiece Weight: 120Kg
Distance Between Centers: 650mm
Center Height: 175mm
