S20
The Compact for small precision components.
Basic Data
The S20 is a universal cylindrical grinding machine with electromechanical drives for the production of small workpieces. It has a distance between centres of 400mm (15.75″) / 650mm (25.6″) and a centre height of 100mm (3.94″). It can machine workpieces with a maximum weight of 20kg (44lbs).
The universal cylindrical grinding machine is designed for the grinding of workpieces in single-component or small series production runs. It is suitable for use in any industry where precise small components are manufactured. This simple and very reasonably priced machine has a tried-and-tested SPS control unit. It is easy to operate and the machine can be reset very quickly.
Hardware / Software
Hardware:

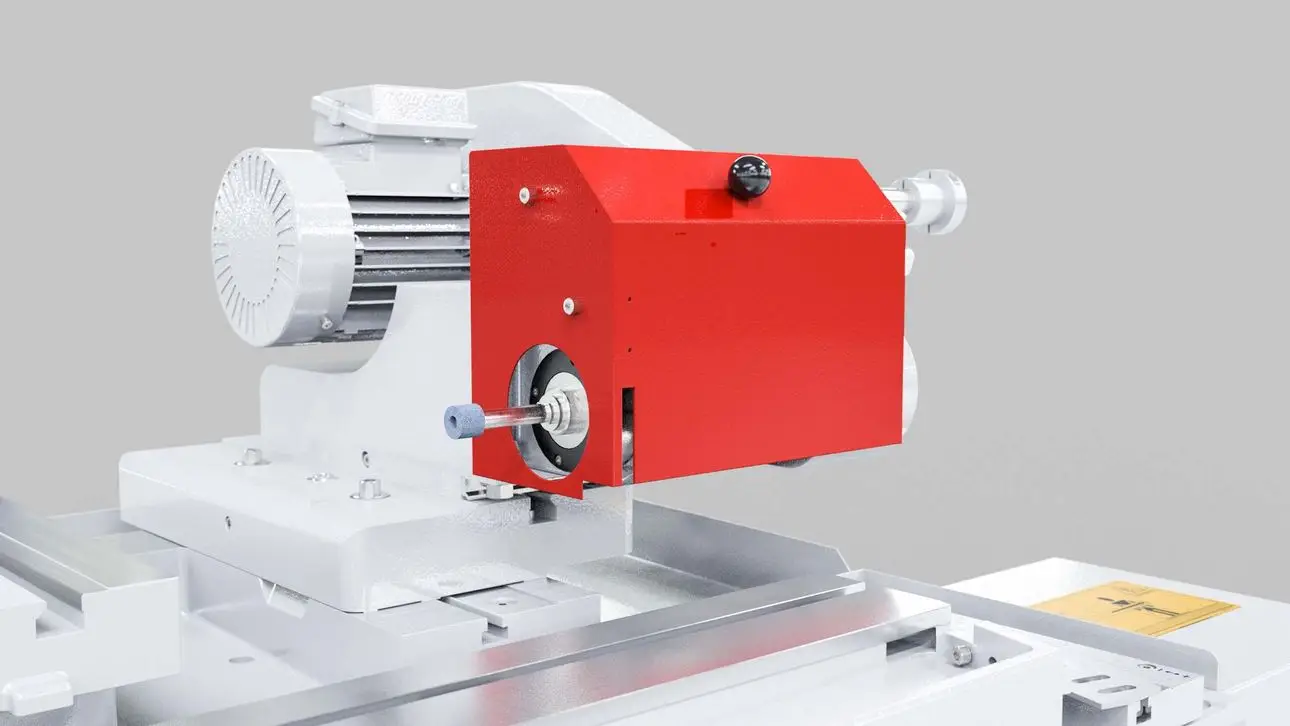

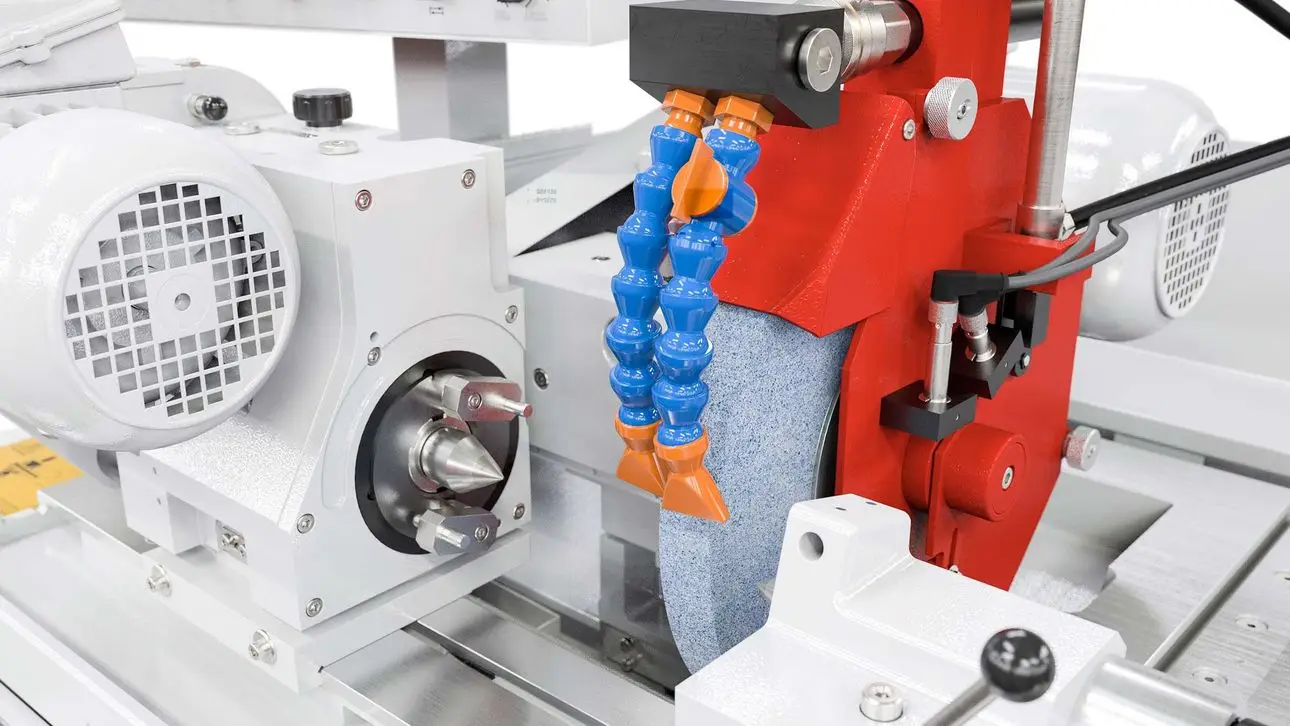

- Cross slide with wheelhead for external grinding with grinding wheel right and a prepared interface for the internal grinding unit (optional)
- Wheelhead with manual swiveling to 0°, 15°, 30°

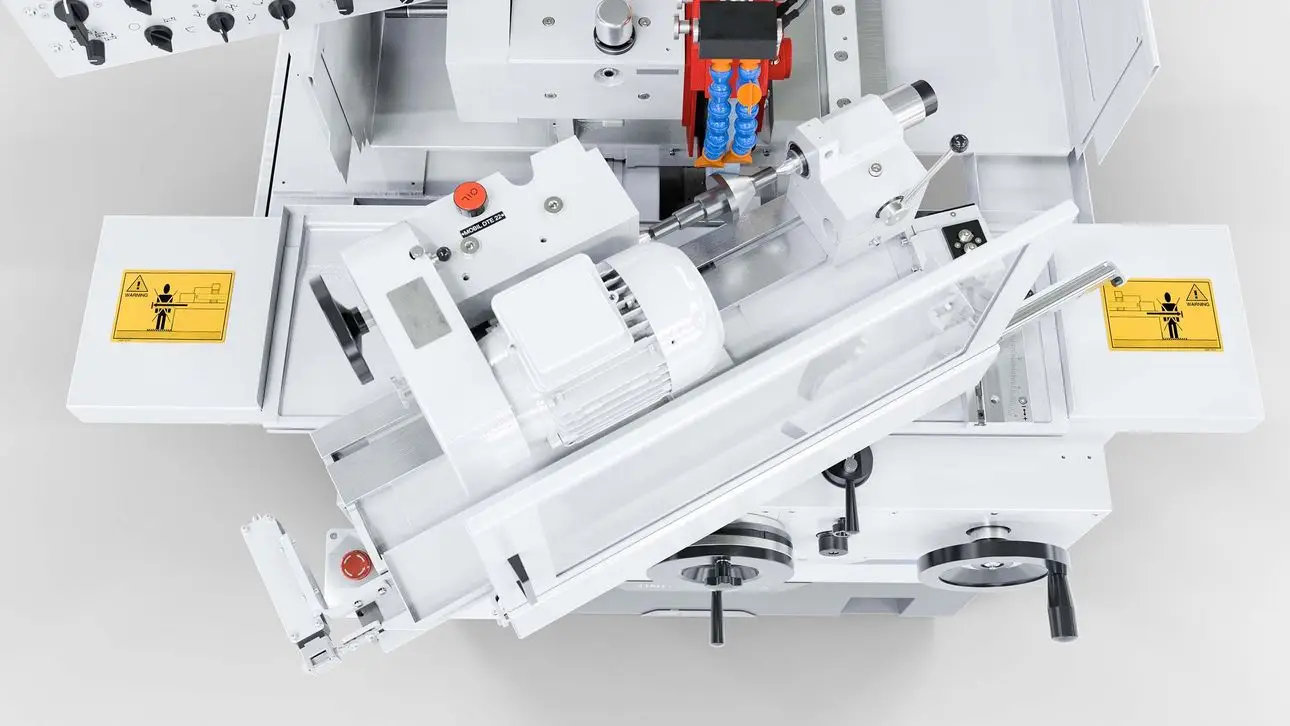

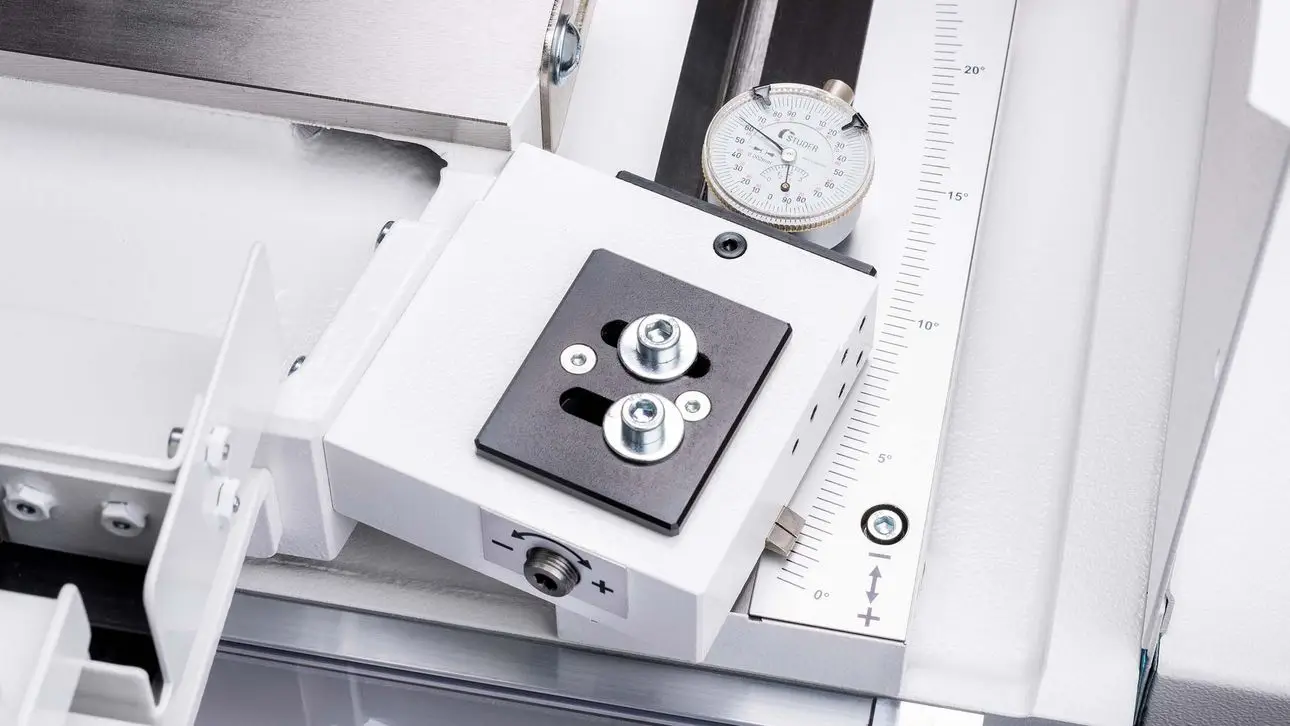

- Table with swivel range of:
– up to 30 deg with centre distance 400mm (15.75″)

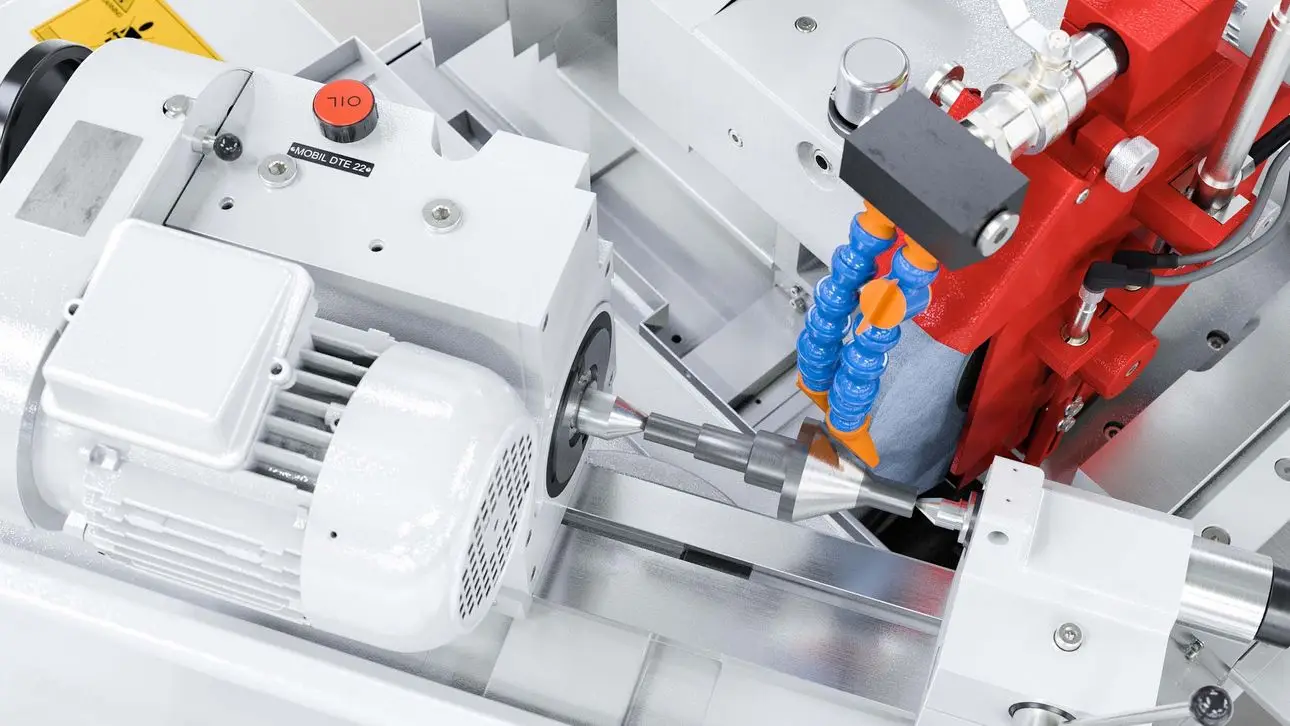

– up to 15 deg with centre distance 650mm (25.6″) - Workhead with hydrodynamic bearing for grinding between fixed centres or live spindle grinding

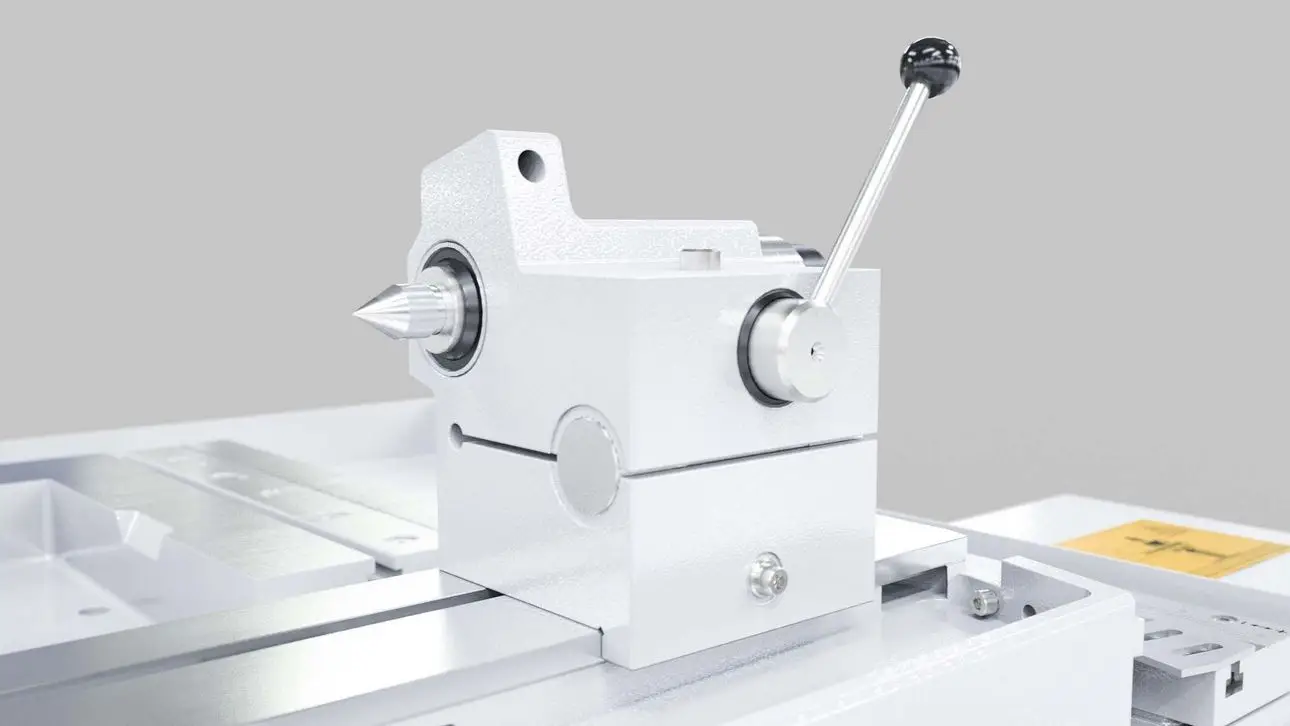

- Tailstock with adjustable centre pressure and fine adjustment for rapid and easy cylindricity correction

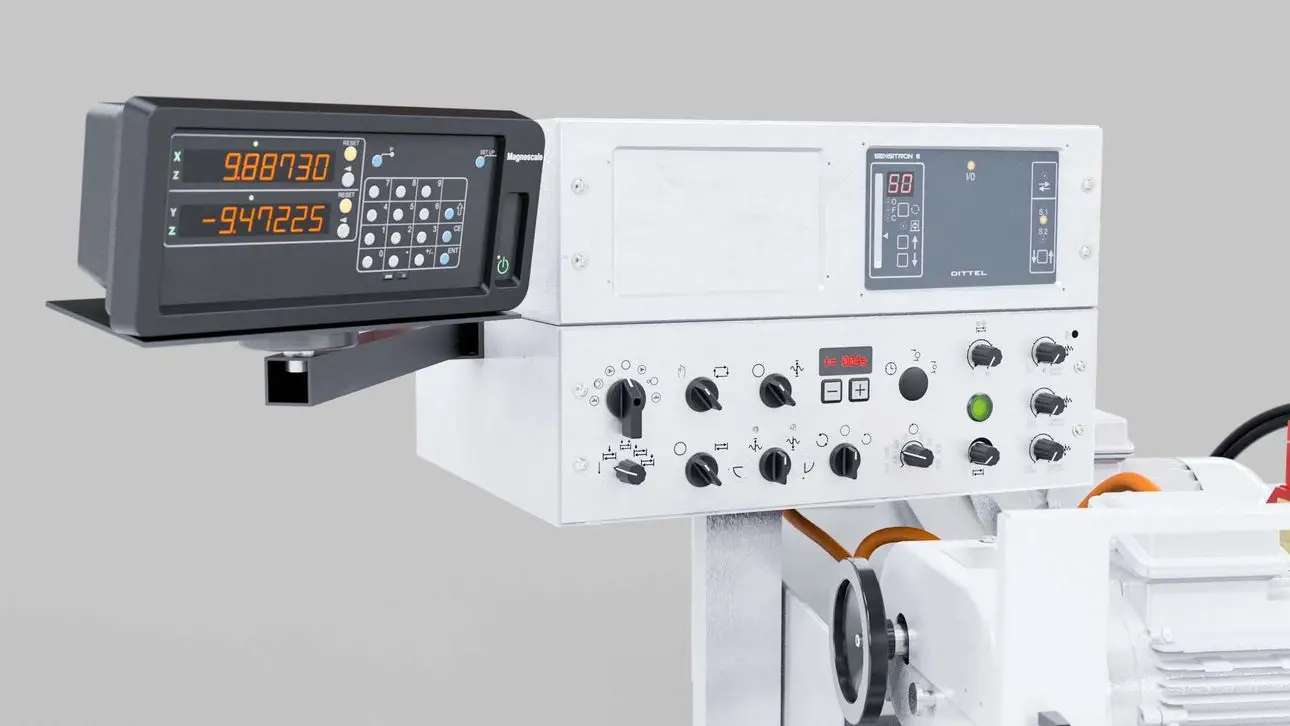

- Control cabinet connected to the machine. Can be expanded to include in-process gauging and Sensitron
- Automatic grinding cycles for plunge and traverse grinding
- Automatic grinding cycle with automatic switch-off function:
– Rapid infeed
– Grinding feed
– Spark-out - Rapid retraction of the feed handwheel to the set grinding allowance
Plunge and traverse - grinding with or without rapid infeed
- Compact design
- Wide range of accessories
Linear Axes
Max. Travel X
Max. Travel Speed X
Max. Travel Z
Max. Travel Speed Z
Max. Travel Speed X
Max. Travel Z
Max. Travel Speed Z
30 mm
2 mm/min
420 mm
3’500 mm/min
2 mm/min
420 mm
3’500 mm/min
SPindle Drive
Max. Spindle Power
Max. Number Of Revolutions
Max. Grinding Wheel Diameter
Max. Grinding Wheel Width
Max. Number Of Revolutions
Max. Grinding Wheel Diameter
Max. Grinding Wheel Width
3 kW
1’640 /min
350 mm
50 mm
1’640 /min
350 mm
50 mm
Swiveling Axes
Swiveling Range C
∞ °
Workpiece Data
Workpiece Length
Workpiece Diameter
Max. Workpiece Weight
Distance Between Centers
Center Height
Workpiece Diameter
Max. Workpiece Weight
Distance Between Centers
Center Height
400 mm
199 mm
20 kg
400 mm
100 mm
199 mm
20 kg
400 mm
100 mm
Linear Axes
Max. Travel X: 30mm
Max. Travel Speed X: 2 mm/min
Max. Travel Z: 420mm
Max. Travel Speed Z: 3’500 mm/min
SPindle Drive
Max. Spindle Power: 3 KW
Max. Number Of Revolutions: 1’640/min
Max. Grinding Wheel Dm: 350mm
Max. Grinding Wheel Width: 50mm
Swiveling Axes
Swiveling Range C
∞ °
Workpiece Data
Workpiece Length: 400mm
Workpiece Diameter: 199mm
Max. Workpiece Weight: 20Kg
Distance Between Centers: 400mm
Center Height: 100mm
Linear Axes
Max. Travel X
Max. Travel Speed X
Max. Travel Z
Max. Travel Speed Z
Max. Travel Speed X
Max. Travel Z
Max. Travel Speed Z
30 mm
2 mm/min
650 mm
3’500 mm/min
SPindle Drive
Max. Spindle Power
Max. Number Of Revolutions
Max. Grinding Wheel Diameter
Max. Grinding Wheel Width
Max. Number Of Revolutions
Max. Grinding Wheel Diameter
Max. Grinding Wheel Width
3 kW
1’640 /min
350 mm
50 mm
1’640 /min
350 mm
50 mm
Swiveling Axes
Swiveling Range C
∞ °
Workpiece Data
Workpiece Length
Workpiece Diameter
Max. Workpiece Weight
Distance Between Centers
Center Height
Workpiece Diameter
Max. Workpiece Weight
Distance Between Centers
Center Height
650 mm
199 mm
20 kg
650 mm
100 mm
Linear Axes
Max. Travel X: 30mm
Max. Travel Speed X: 2mm/min
Max. Travel Z: 650mm
Max. Travel Speed Z: 3’500mm/min
SPindle Drive
Max. Spindle Power: 3KW
Max. Number Of Revolutions: 1’640/min
Max. Grinding Wheel Diameter: 350mm
Max. Grinding Wheel Width: 50mm
Swiveling Axes
Swiveling Range C
∞ °
Workpiece Data
Workpiece Length: 650mm
Workpiece Diameter: 199mm
Max. Workpiece Weight: 20Kg
Distance Between Centers: 600mm
Center Height: 100mm
