S110
The practical machine for your specific grinding solution.
Basic Data

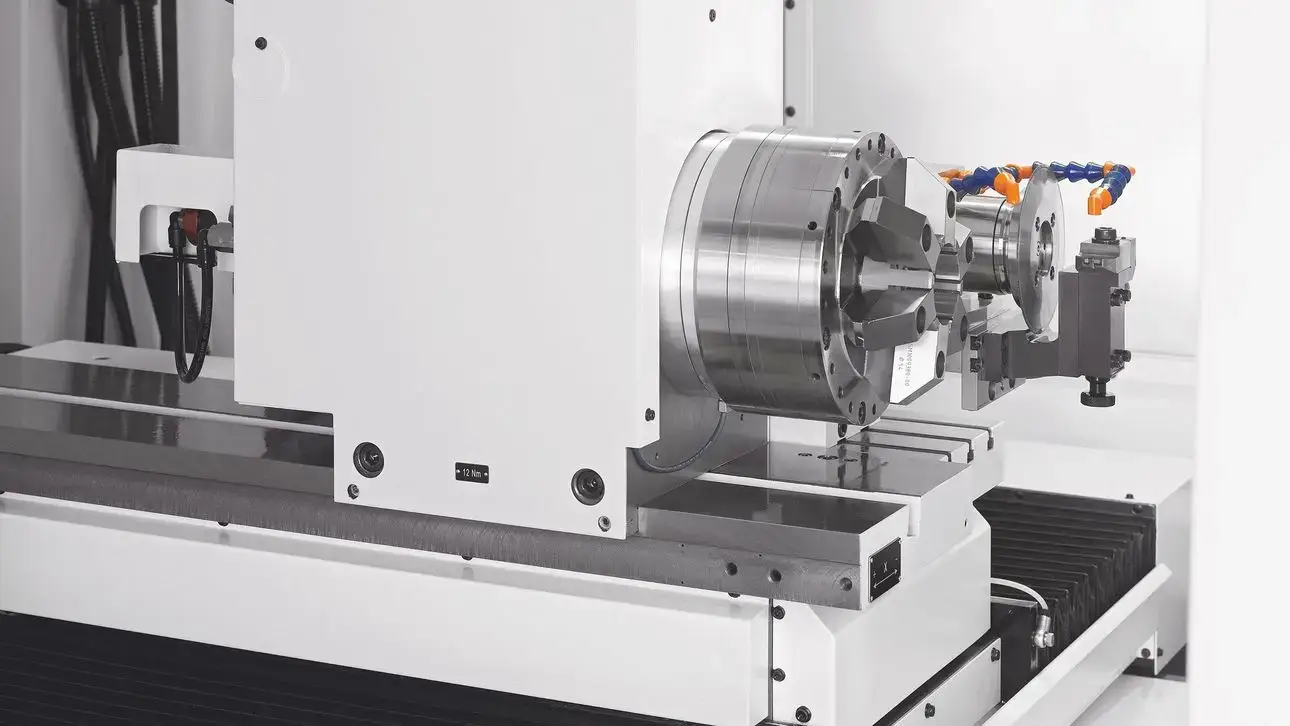

The S110 is a very flexible internal cylindrical grinding machine for machining medium-sized workpieces. The machine has a centre height of 102mm (4″) and a grinding length of max. 120mm (4.7″).

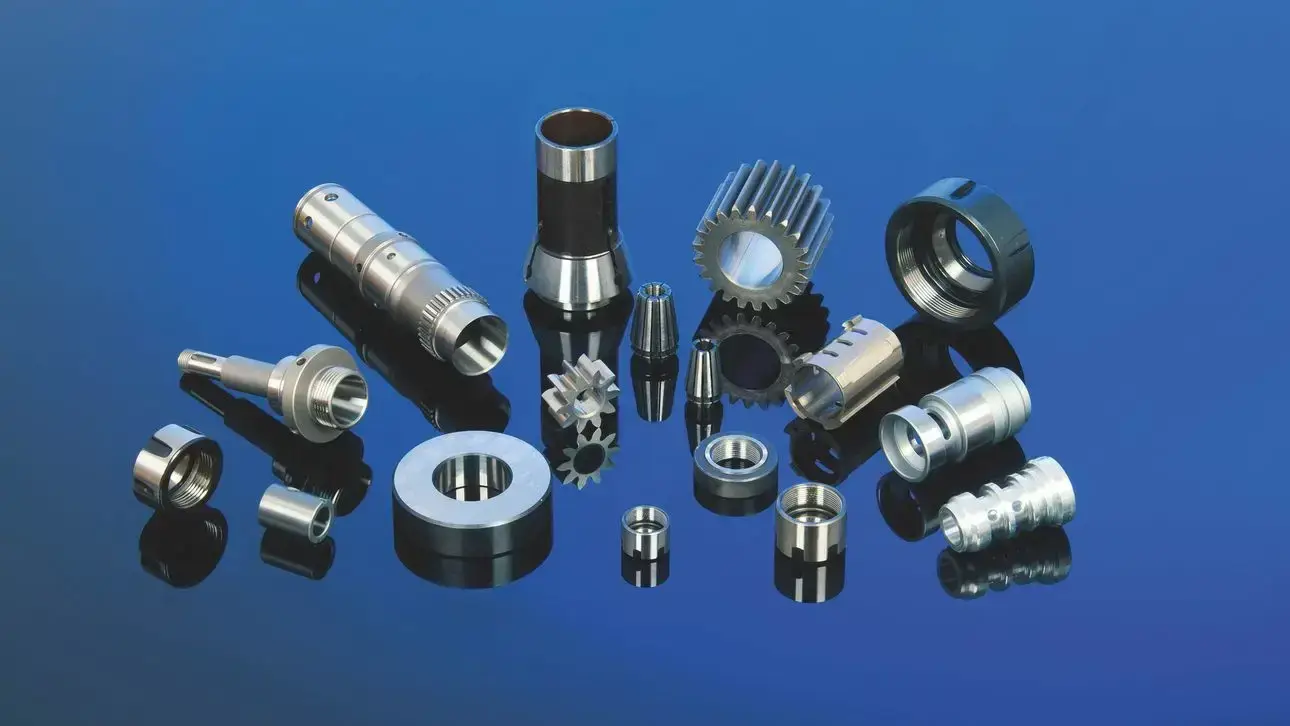

Up to three linearly arranged grinding spindles enable external and internal grinding in a single clamping. S110 is the ideal machine for chuck applications for individual components up to small-batch production. A cost-effective solution for high-precision automated grinding can be achieved with the optional, fully integrated automatic loading and unloading system.
Hardware / Software

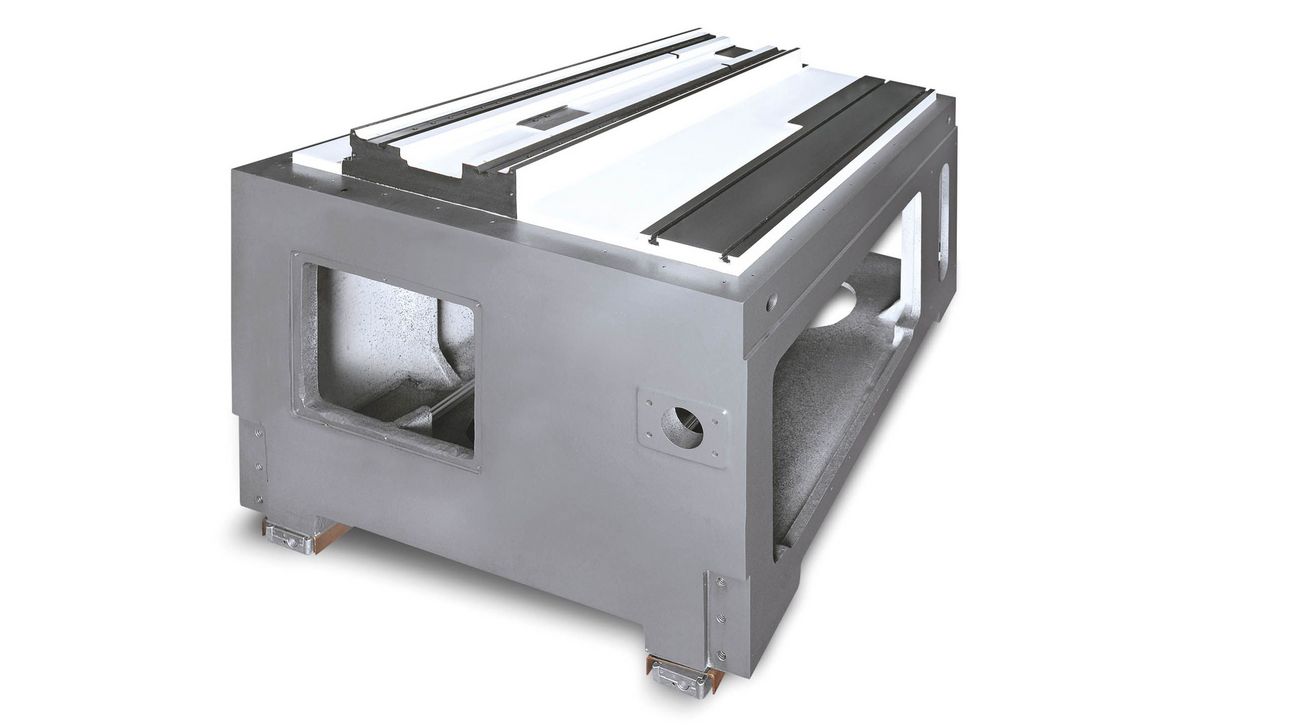

Hardware:

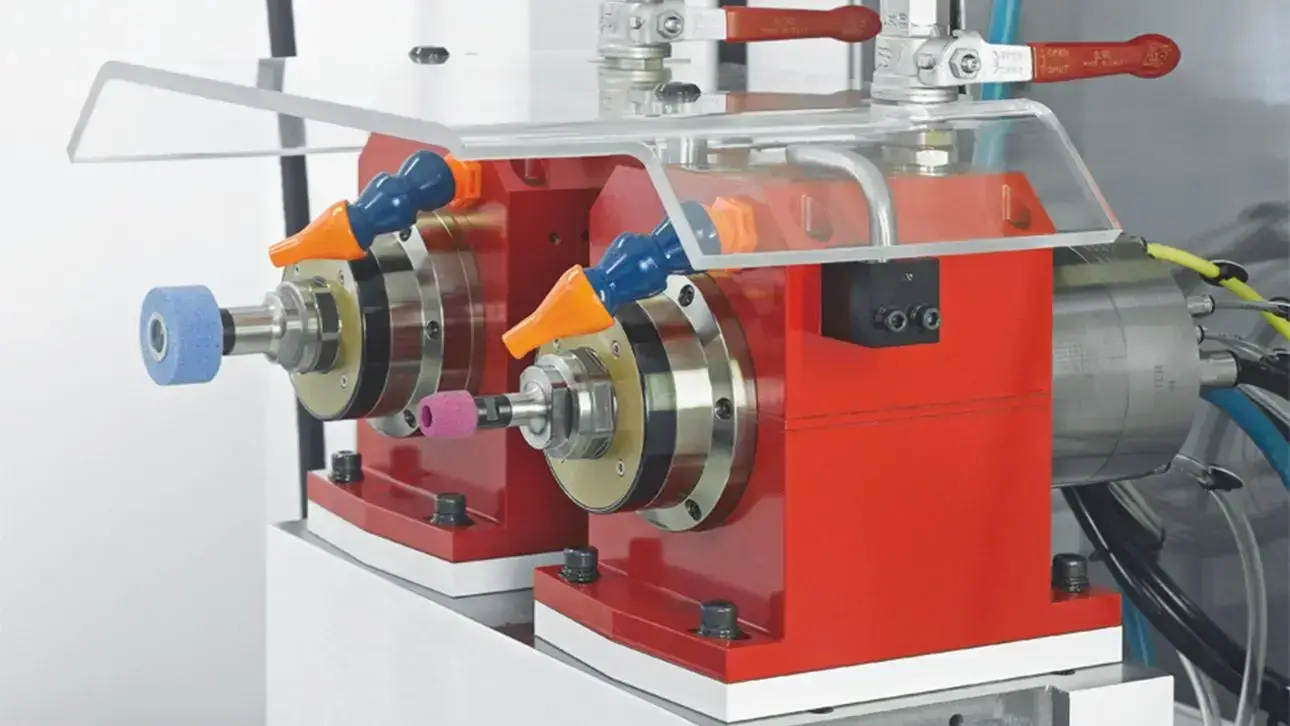

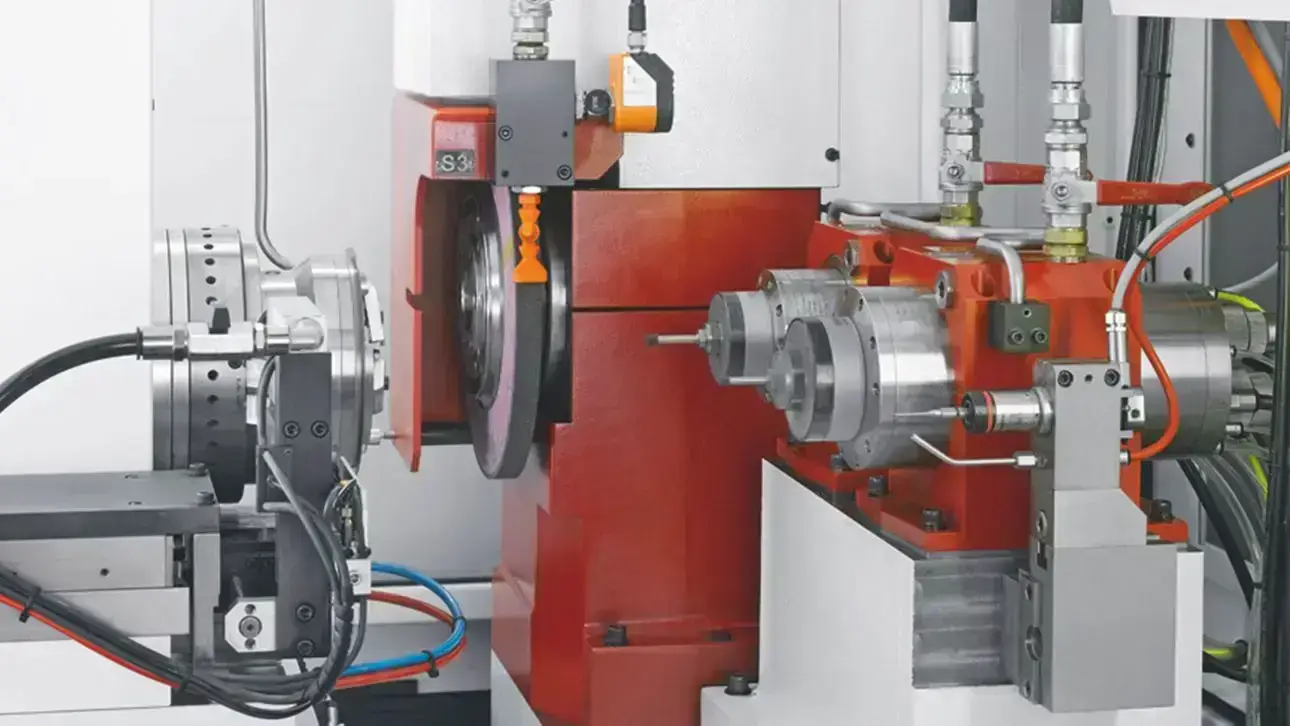

- Up to three grinding spindles in a linear arrangement

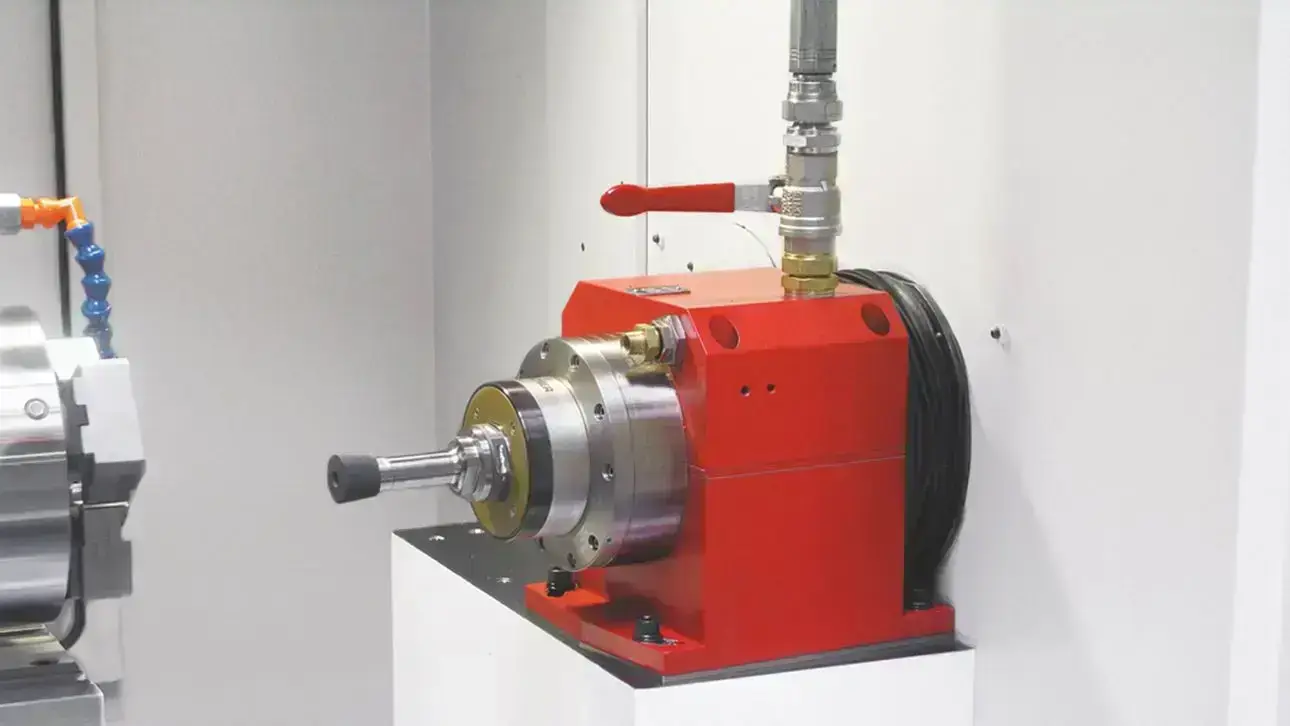

- HF or belt-driven spindles
- A grinding spindle can be equipped with an external grinding wheel dia. 300mm (11.8″)
- External and internal grinding possible in one clamping
- Full enclosure with sliding door
- Integrated or autonomous loading systems
- Fanuc Oi-TD / Fanuc 31i-A (with loader)
Software:
- StuderWIN or StuderSIM simulation software for the creation and simulation of grinding programs on the machine control or on a PC
Linear Axes
Max. Travel Speed X
Max. Travel Z
Max. Travel Speed Z
370 mm
15’000 mm/min
200 mm
12’000 mm/min
SPindle Drive
Max. Number Of Revolutions
Max. Grinding Wheel Diameter
Max. Grinding Wheel Width
15 kW
120’000 /min
300 mm
32 mm

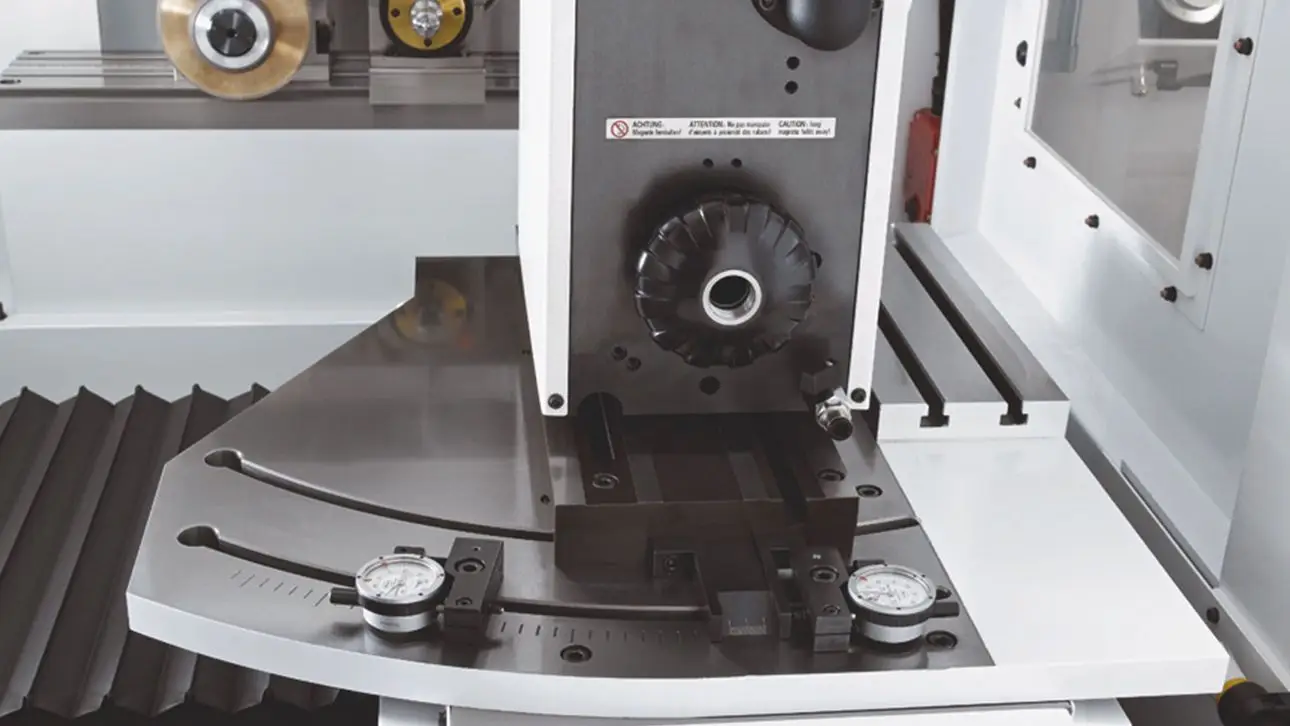

Swiveling Axes
Workpiece Data
Workpiece Length
Workpiece Diameter
Max. Workpiece Weight
Center Height
230 mm
120 mm
50kg
102 mm
Linear Axes
Max. Travel X: 370mm
Max. Travel Speed X: 15’000 mm/min
Max. Travel Z: 200mm
Max. Travel Speed Z: 120’000 mm/min
SPindle Drive
Max. Spindle Power: 15 KW
Max. Number Of Revolutions: 120’000/min
Max. Grinding Wheel Dm: 300mm
Max. Grinding Wheel Width: 32mm
Swiveling Axes
Workpiece Data
Workpiece Length: 230mm
Workpiece Diameter: 120mm
Max. Workpiece Weight: 50kg
Center Height: 102mm
