S131 RADIUS
The experts in internal and radius grinding.
Basic Data
The S131 is a radius internal cylindrical grinding machine that is especially suitable for grinding complex workpieces from very hard materials The maximum swing diameter is 300mm (11.7″) and the maximum workpiece weight is 100kg (220lbs).
The machine is ideal for the manufacture of drawing dies, especially in the packaging industry, where tungsten carbide and ceramics are primarily processed. The machine has a host of sophisticated technical features such as the revolutionary StuderGuide® guideway system, high-precision axis drives with linear motors, a fully automatic B-axis with direct drive, etc.
Hardware / Software
Hardware:

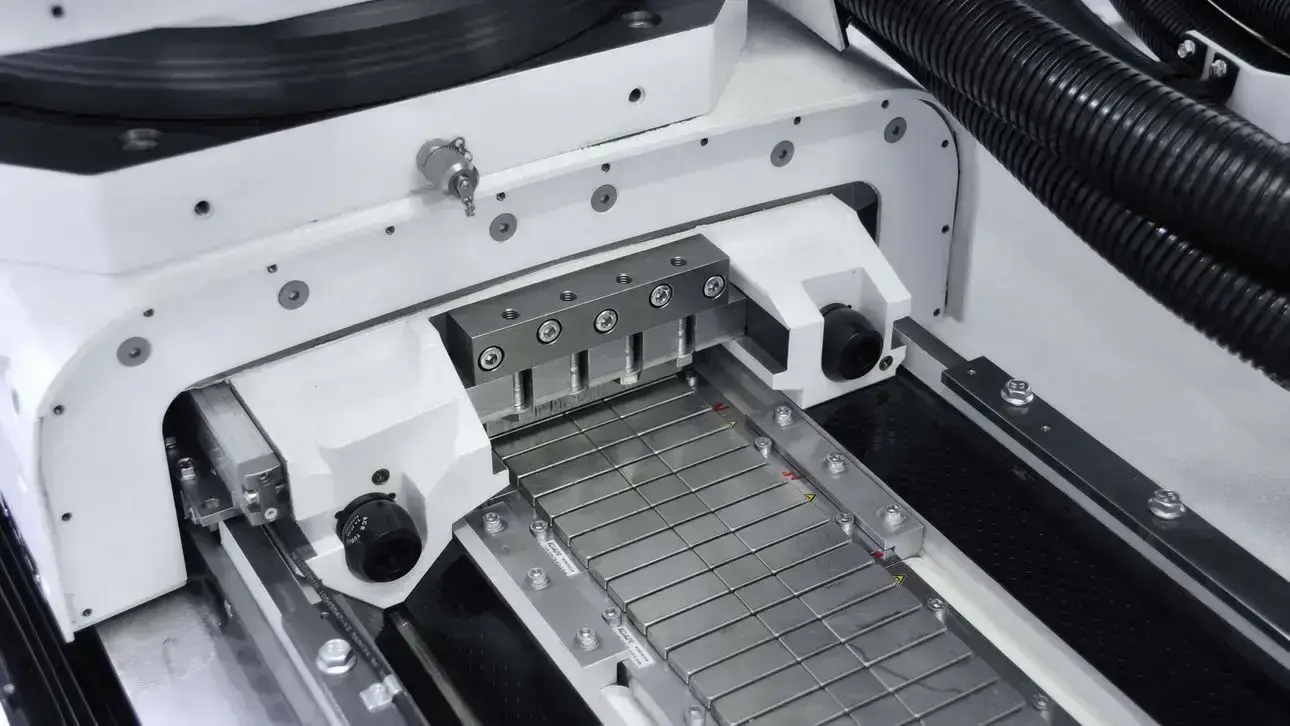

- StuderGuide® guideway system with linear drive
- Fully automatic B-axis with direct drive with a swiveling range from -60° to +91°

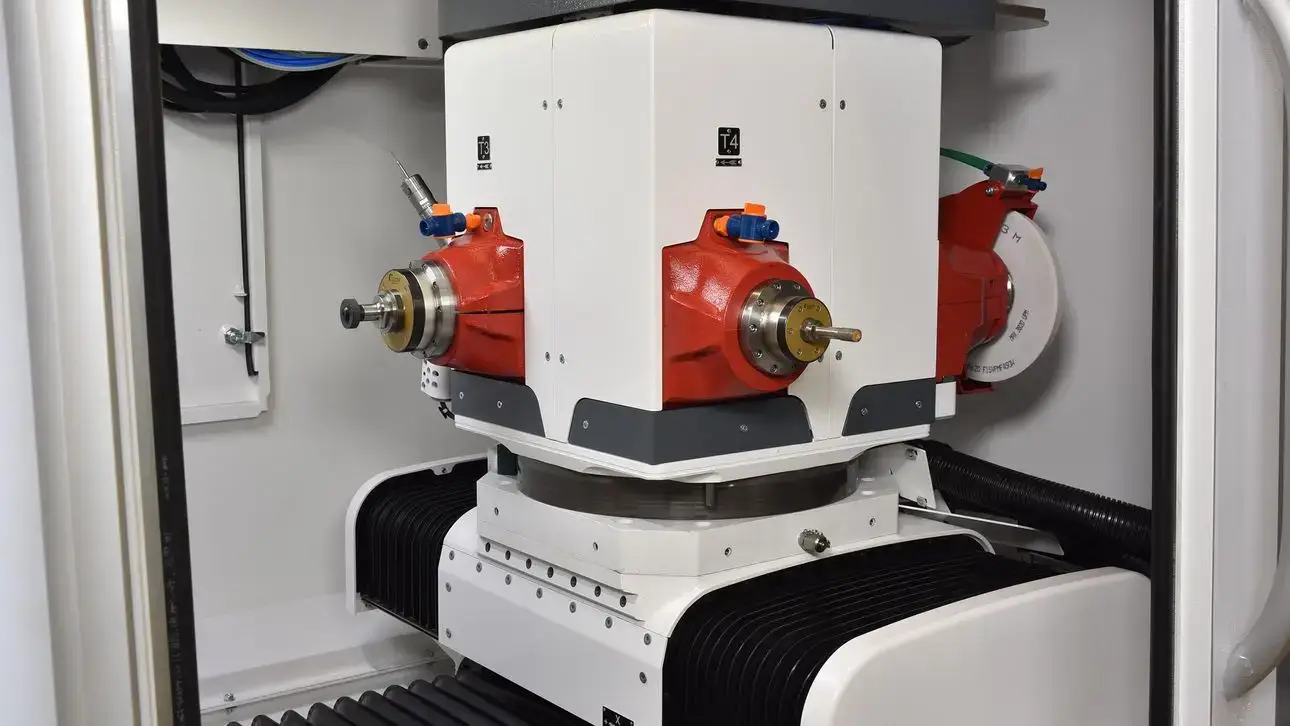

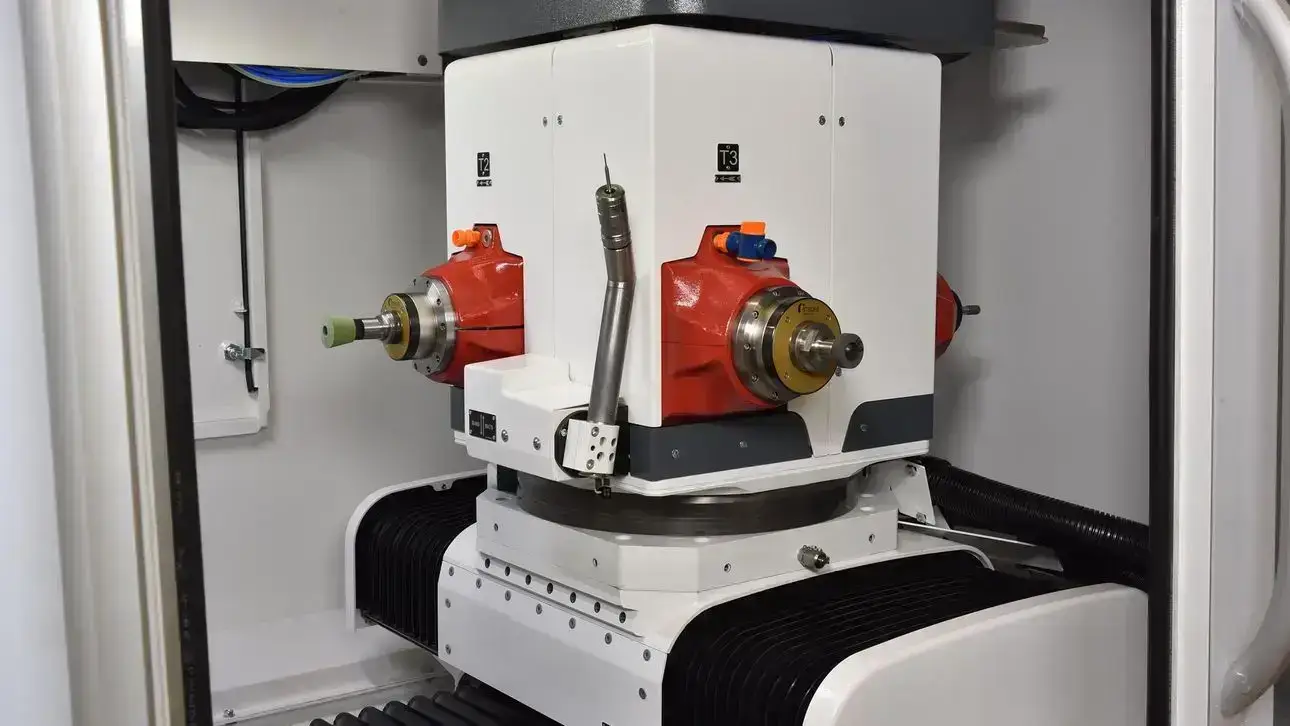

- Spindle turret with up to four grinding spindles

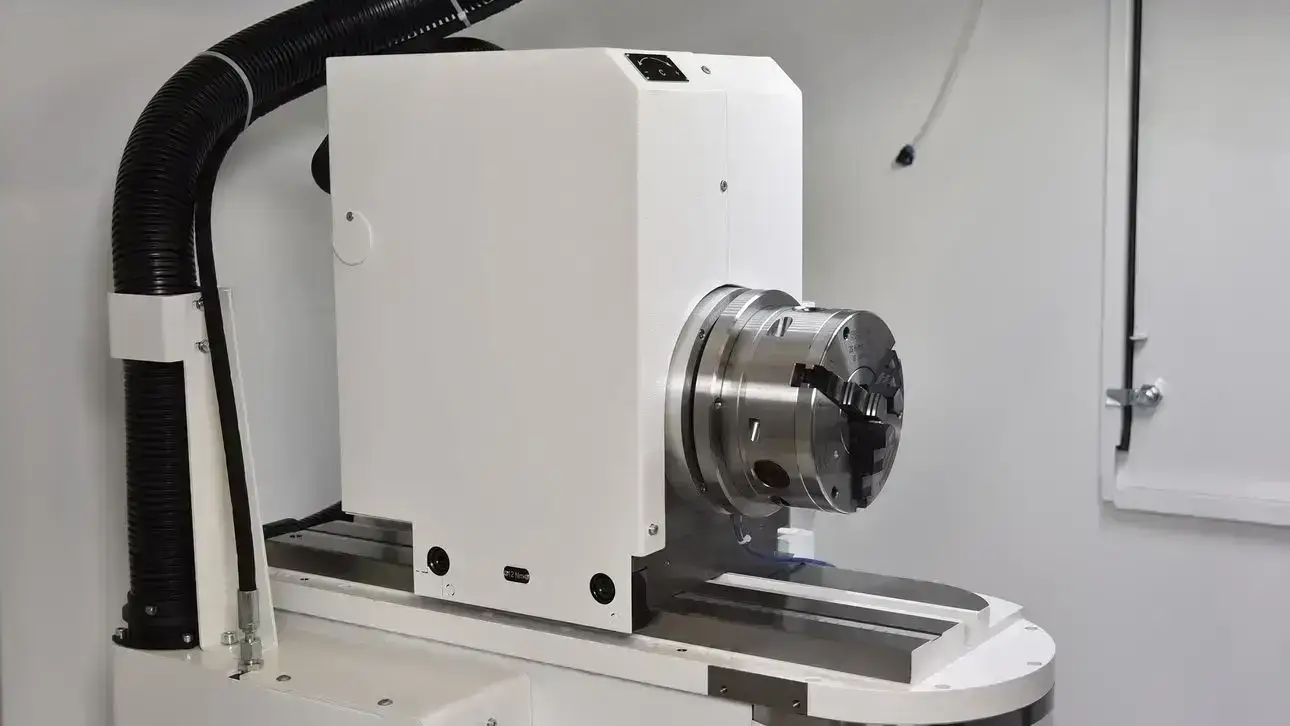

- C-axis for the workhead for form and thread grinding
- Full enclosure with two sliding doors

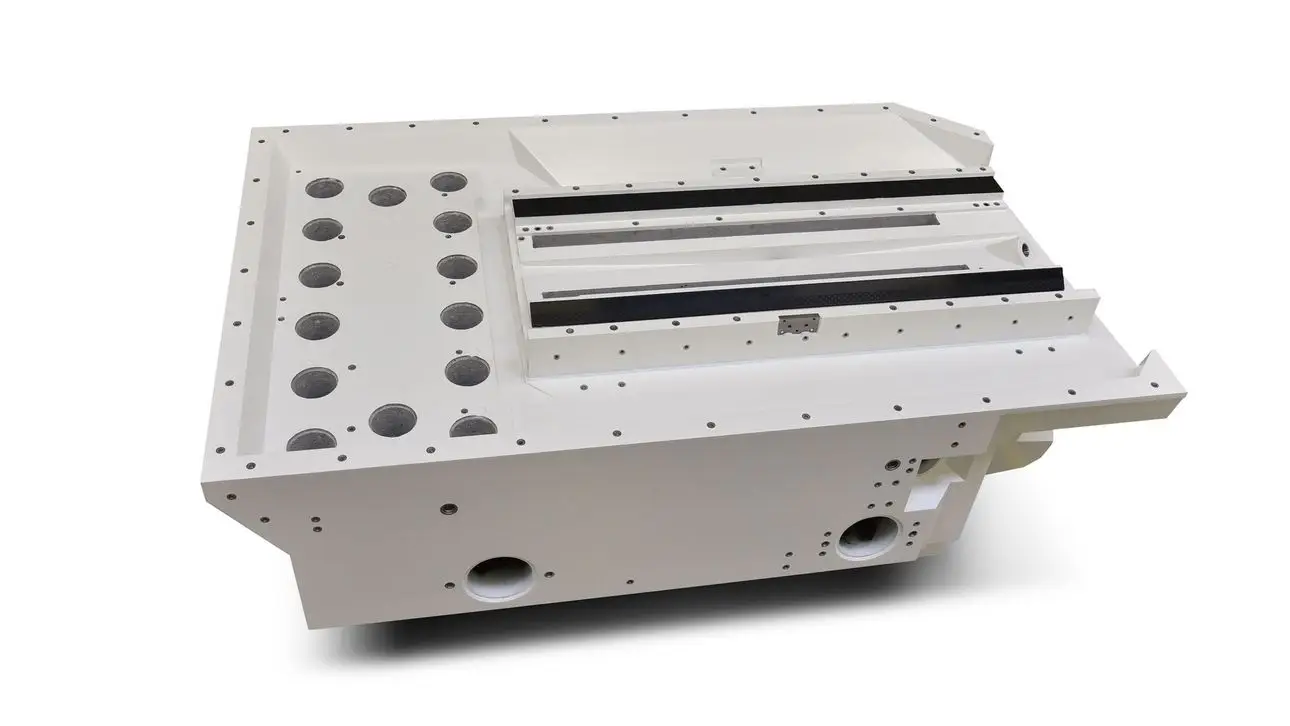

- Granitan® S103 mineral casting machine base
Software:
- Simple to use and program thanks to HMI StuderSim
- StuderSIM programming and simulation software for the creation and simulation of grinding and dressing programs on the machine control or on an external PC
- Standardized interfaces for loader and peripheral devices
Linear Axes
Max. Travel Speed X
Max. Travel Z
Max. Travel Speed Z
350 mm
20’000 mm/min
350 mm
20’000 mm/min
SPindle Drive
Max. Number Of Revolutions
Max. Grinding Wheel Diameter
Max. Grinding Wheel Width
15 kW
120’000 /min
150 mm
20 mm
Swiveling Axes
Workpiece Data
Workpiece Length
Workpiece Diameter
Max. Workpiece Weight
Center Height
120 mm
70 mm
3kg
110 mm
Linear Axes
Max. Travel X: 350mm
Max. Travel Speed X: 20’000 mm/min
Max. Travel Z: 350mm
Max. Travel Speed Z: 20’000 mm/min
SPindle Drive
Max. Spindle Power: 15 KW
Max. Number Of Revolutions: 120’000/min
Max. Grinding Wheel Dm: 150mm
Max. Grinding Wheel Width: 20mm
Swiveling Axes
Workpiece Data
Workpiece Length: 120mm
Workpiece Diameter: 70mm
Max. Workpiece Weight: 3kg
Center Height: 110mm
