S30

The Classical for medium-sized precision components.

Basic Data

The S30 is a cylindrical grinding machine for medium-sized workpieces in individual and small batch production. It has distances between centres of 650mm (25.6″) / 1000mm (40″) and centre heights of 125mm (4.9″) / 175mm (6.9″) / 225mm (8.8″). It can machine workpieces with a maximum weight of 130kg (286lbs).

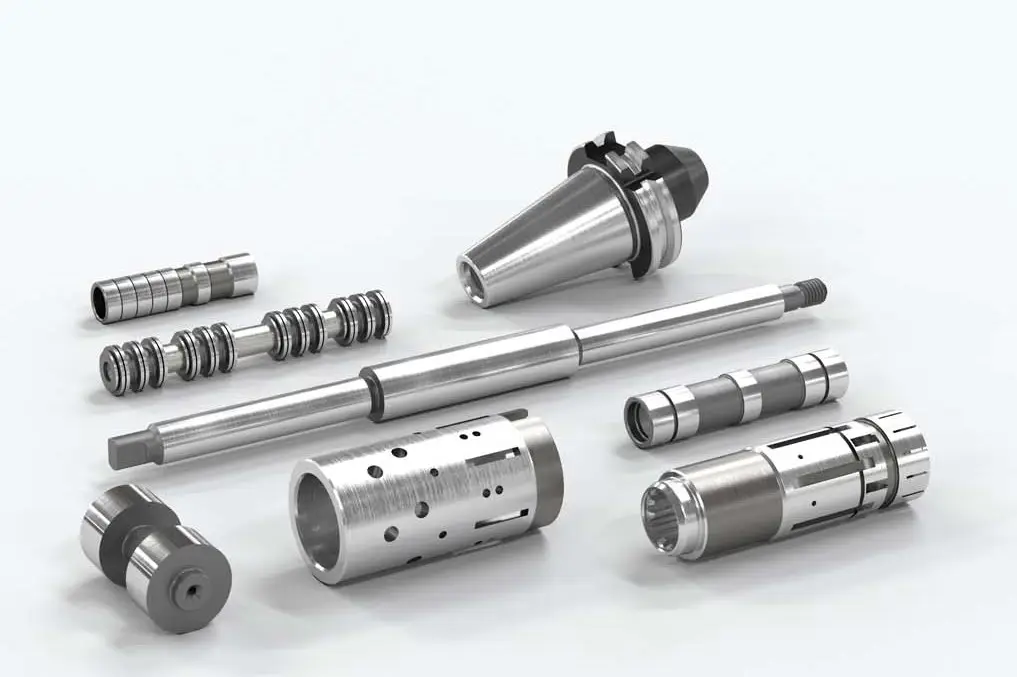

It is suitable for any sector in which medium-sized components are produced. This simple, reasonably priced machine has a tried-and-tested hydraulic infeed system. It is easy to operate and the machine can be reset very quickly. The Granitan® S103 machine bed provides the basis for the fitting of technologically outstanding components to form a cylindrical grinding machine guaranteeing the highest possible precision, performance and reliability for many years.

Hardware / Software

Hardware:

  • Wheelhead versions:
    – Turret wheelhead with grinding wheel left, right, and internal grinding attachment (option). Manual swivel in increments of 5° with Hirth coupling and limit stops at 0° and 180°.
    – External wheelhead with grinding wheel left
  • Swiveling machine table 10° / 8.5°

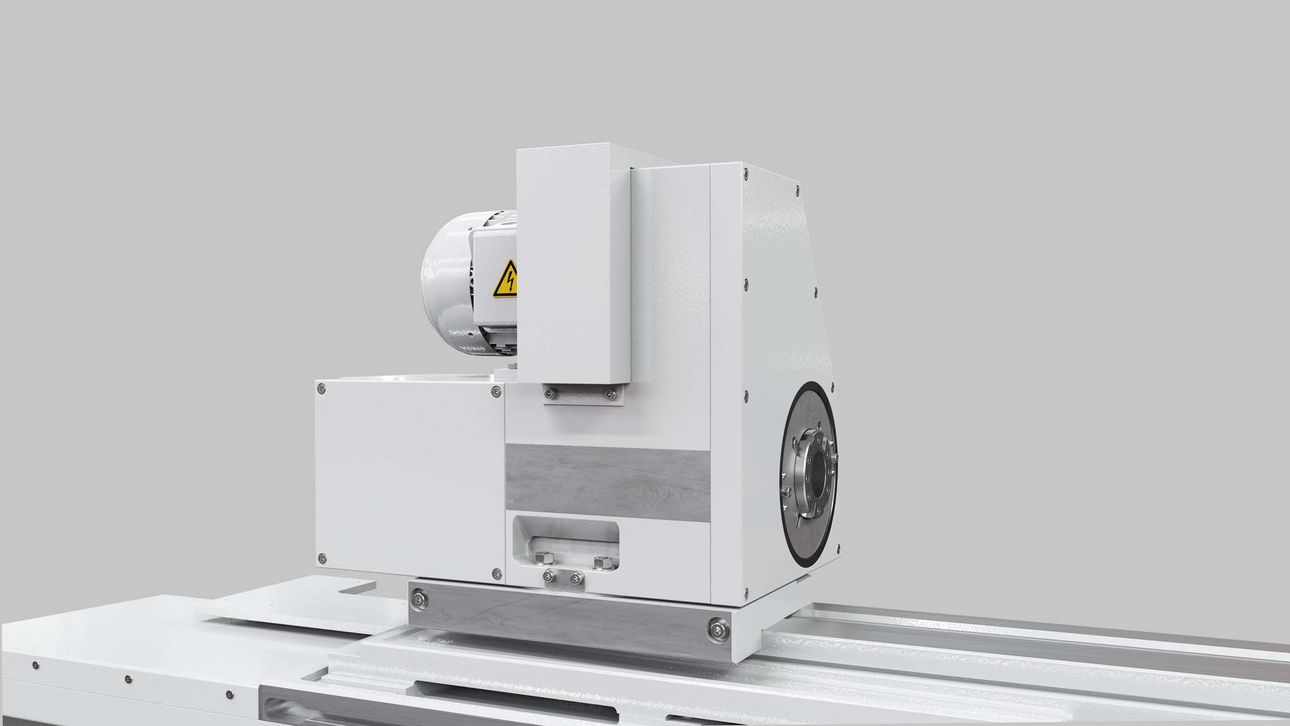

  • Standard workhead with hydrodynamic bearing or workhead with roller bearing (option) allow grinding between fixed centers as well as with live spindle grinding

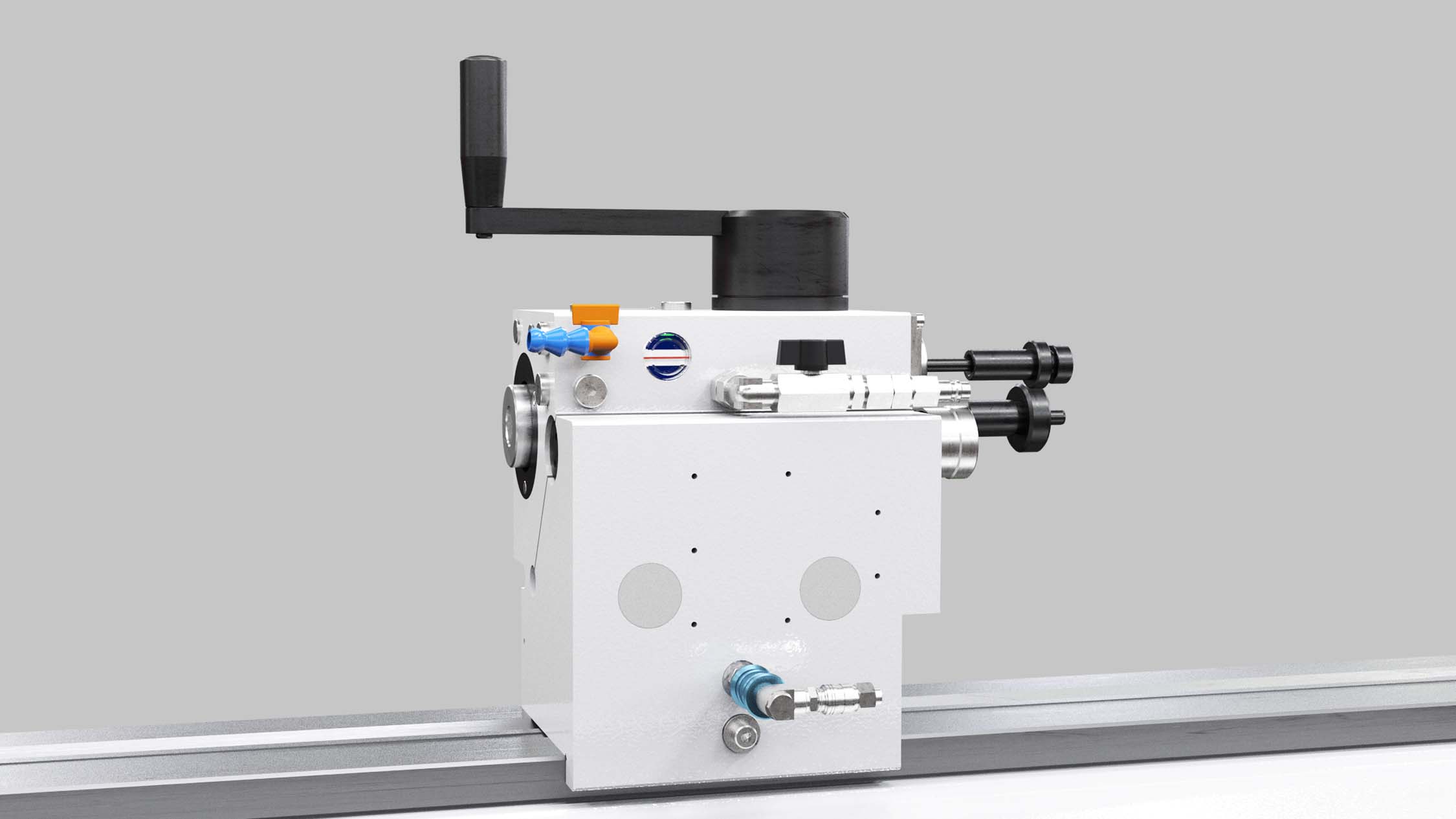

  • Tailstock with adjustable centre pressure and fine adjustment for quick and easy cylindricity correction

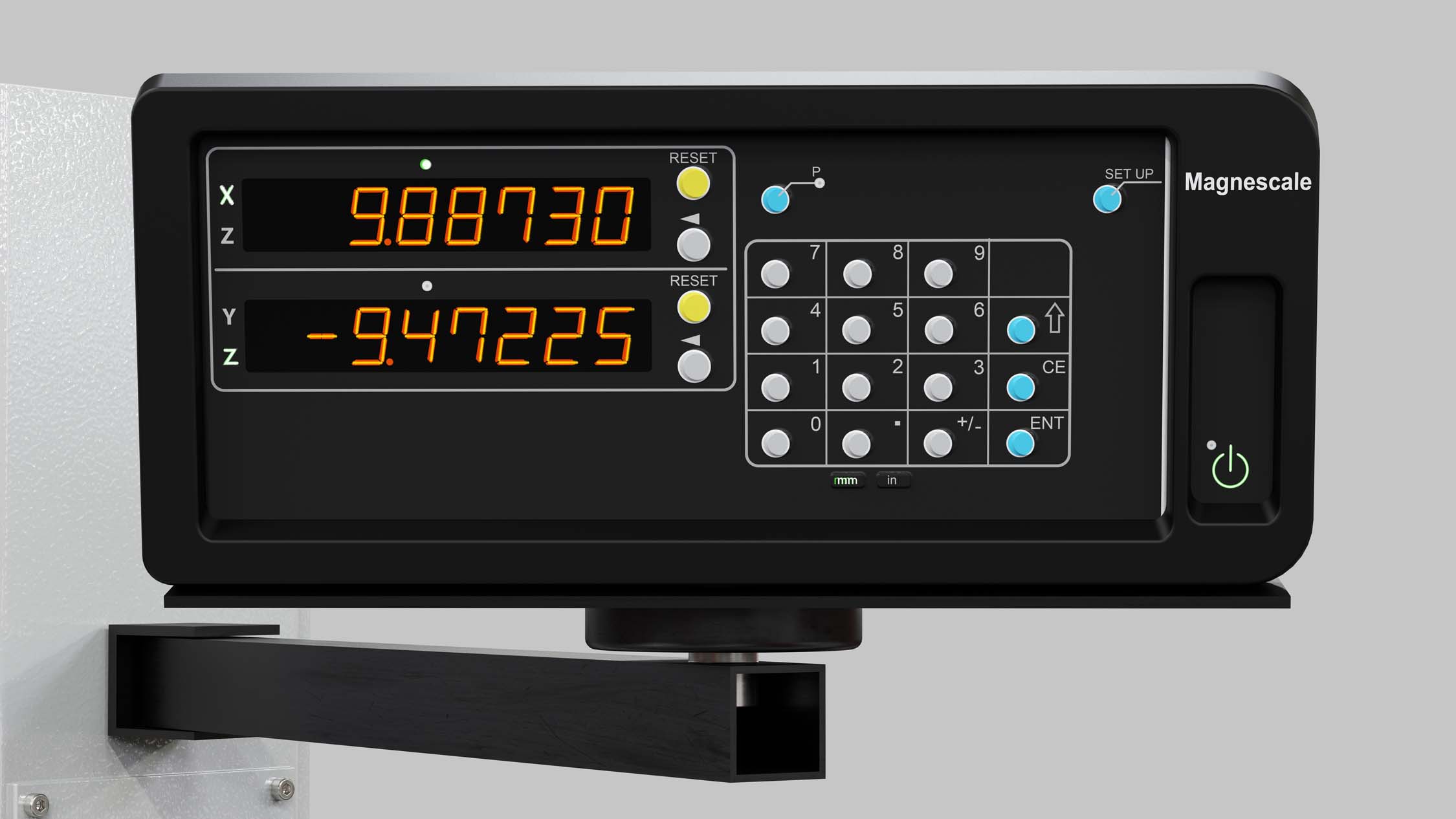

  • Electrical enclosure permanently connected to the machine. Can be expanded for measuring systems and Sensitron

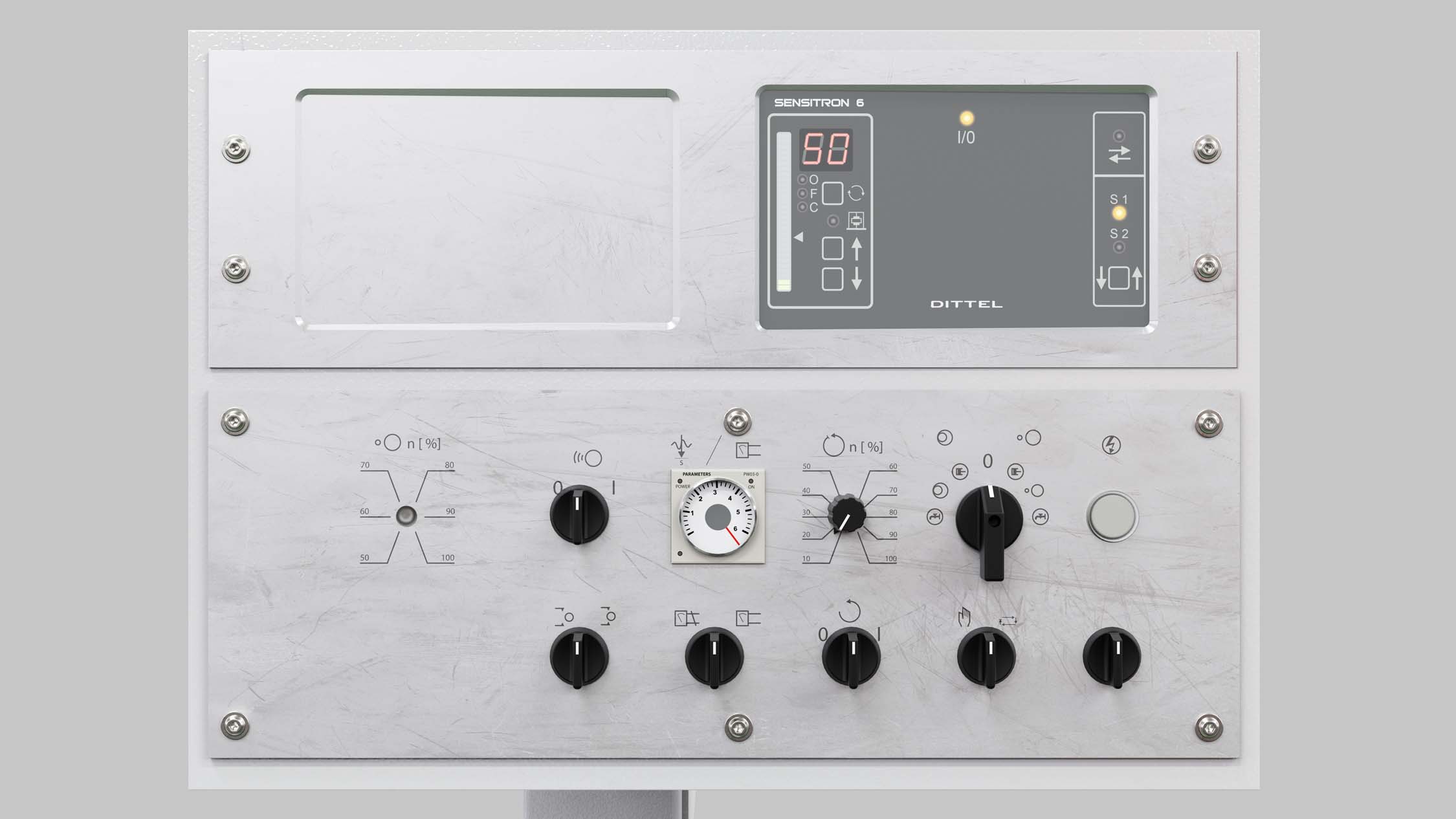

  • Granitan® S103 mineral casting machine base
  • Automatic grinding cycles with automatic cut-out:
    – Rapid infeed
    – Grinding feed 1 and 2
    – Spark-out
  • Rapid retraction of the feed handwheel to the preset grinding allowance
  • Plunge grinding and traverse grinding with or without rapid infeed
  • External and internal grinding possible in one clamping
  • Wide range of accesoires
Download S30 Brochure

Linear Axes

Max. Travel X
Max. Travel Speed X
Max. Travel Z
Max. Travel Speed Z

260 mm
6 mm/min
700 mm
5’000 mm/min

SPindle Drive

Max. Spindle Power
Max. Number Of Revolutions
Max. Grinding Wheel Diameter
Max. Grinding Wheel Width

6 kW
2’110 /min
500 mm
80 mm

Swiveling Axes

Swiveling Range B

180 °

Swiveling Range C

∞ °

Workpiece Data

Workpiece Length
Workpiece Diameter
Max. Workpiece Weight
Distance Between Centers
Center Height

650 mm
449 mm
130 kg
650 mm
225 mm

Linear Axes

Max. Travel X: 260mm
Max. Travel Speed X: 6 mm/min
Max. Travel Z: 700mm
Max. Travel Speed Z: 5’000 mm/min



SPindle Drive

Max. Spindle Power: 6 KW
Max. Number Of Revolutions: 2’110/min
Max. Grinding Wheel Dm: 500mm
Max. Grinding Wheel Width: 80mm

Swiveling Axes

Swiveling Range B

180 °

Swiveling Range C

∞ °

Workpiece Data

Workpiece Length: 400mm
Workpiece Diameter: 449mm
Max. Workpiece Weight: 1K03g
Distance Between Centers: 650mm
Center Height: 225mm

Linear Axes

Max. Travel X
Max. Travel Speed X
Max. Travel Z
Max. Travel Speed Z

260 mm
6 mm/min
1’050 mm
5’000 mm/min

SPindle Drive

Max. Spindle Power
Max. Number Of Revolutions
Max. Grinding Wheel Diameter
Max. Grinding Wheel Width

6 kW
2’110 /min
500 mm
80 mm

Swiveling Axes

Swiveling Range B

180 °

Swiveling Range C
∞ °

Workpiece Data

Workpiece Length
Workpiece Diameter
Max. Workpiece Weight
Distance Between Centers
Center Height

1000 mm
449 mm
130 kg
1’000 mm
225 mm

Linear Axes

Max. Travel X: 260mm
Max. Travel Speed X: 6mm/min
Max. Travel Z: 1’050mm
Max. Travel Speed Z: 5’000mm/min

SPindle Drive

Max. Spindle Power: 6KW
Max. Number Of Revolutions: 2’110/min
Max. Grinding Wheel Diameter: 500mm
Max. Grinding Wheel Width: 80mm

Swiveling Axes

Swiveling Range B

180 °

Swiveling Range C

∞ °

Workpiece Data

Workpiece Length: 1’000mm
Workpiece Diameter: 449mm
Max. Workpiece Weight: 130Kg
Distance Between Centers: 1’000mm
Center Height: 225mm
